High Amp 200A Electric Scooter Battery Connector TUV Certification
High Amp 200A Electric Scooter Battery Connector TUV Certification
High Amp 200A Electric Scooter Battery Connector TUV Certification
High Amp 200A Electric Scooter Battery Connector TUV Certification
High Amp 200A Electric Scooter Battery Connector TUV Certification
High Amp 200A Electric Scooter Battery Connector TUV Certification
Specifications
Brand Name :
Futronics
Model Number :
FST
Certification :
TUV CE IEC FCC RoHs GB/T
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable according to Quantities
Payment Terms :
Western Union, MoneyGram
Supply Ability :
50000 per day
Delivery Time :
3~7 days
Packaging Details :
Standard Export Carton Box
Rated Current :
200A max
Rated Voltage :
750V DC
Insulation Resistance :
5000 mΩ Min （Dry） 200 mΩ Min (RH 95%)
Test Voltage :
3000V AC
Minimum Mating Cycles :
100 times
Wire Range :
35mm2~70mm2
Protection Grade :
IP67 /IP55
Operation Temperature :
-40℃ ~+125 ℃
Salt Spray Resistance :
48H (mating state)
Standard :
USCAR-2, USCAR37,RoHS
Description

M8 Combiner Box Electric Motorcycle Tricycle Ebikes Scooters Gof Cart LEV Lithium Ion Battery Pack Terminals Connectors

Part No.:CHVJT0

Description:

It is mainly used for the high voltage high current transmission on electric vehile by line to line method, such as battery pack and PDU connection.

Features:

  • Touch Proof
  • Compact Robust Design ,Various Termination Options
  • EMI Shielded
  • Quick Lock and Press-to- Release Design
  • Competitive price from factory with Small MOQ to help you reduce inventories and avoid market risks;
  • Accept OEM & ODM for your customized requirement;

Application:

  • Battery Packs
  • Electrical Motorcycle
  • Electrical Scooters
  • Ebikes

Parameters:

Electrical Performance
Rated Current 200A max
Rated Voltage 1000V DC
Insulation Resistance

5000 mΩ Min (Dry)

200 mΩ Min (RH 95%)
Test Voltage 3000V AC
Mechanical Performance
Minimum Mating Cycles 100 times
Wire Range 35mm2~70mm2
Environment Performance
Protection Grade IP67 /IP55
Operation Temperature -40 ℃ ~+85 ℃
Salt Spray Resistance 48H (Mating State)
Reference Standard
USCAR-2
USCAR-37
RoHS

Product Pictures:

High Amp 200A Electric Scooter Battery Connector TUV CertificationHigh Amp 200A Electric Scooter Battery Connector TUV Certification

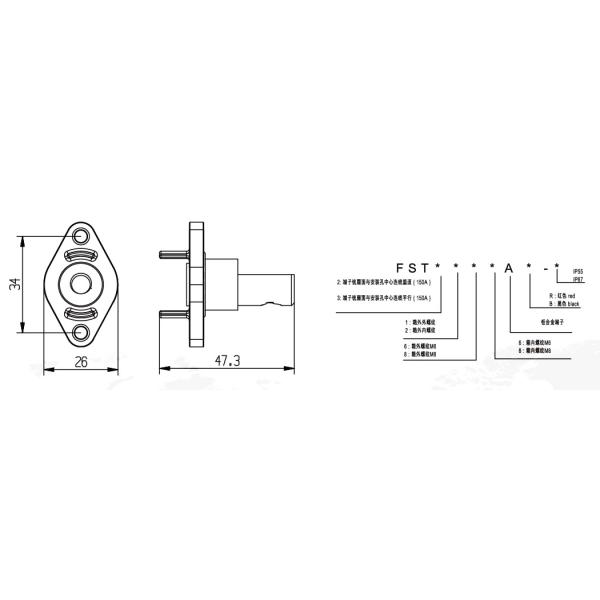

Drawings:

High Amp 200A Electric Scooter Battery Connector TUV Certification

High Amp 200A Electric Scooter Battery Connector TUV Certification

High Amp 200A Electric Scooter Battery Connector TUV Certification

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.

High Amp 200A Electric Scooter Battery Connector TUV Certification

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

High Amp 200A Electric Scooter Battery Connector TUV CertificationHigh Amp 200A Electric Scooter Battery Connector TUV CertificationHigh Amp 200A Electric Scooter Battery Connector TUV CertificationHigh Amp 200A Electric Scooter Battery Connector TUV Certification
