10000 Mechanical Life Battery Swapping System Connector For EV HEV Ebike Electrical Motorcyle
10000 Mechanical Life Battery Swapping System Connector For EV HEV Ebike Electrical Motorcyle
10000 Mechanical Life Battery Swapping System Connector For EV HEV Ebike Electrical Motorcyle
10000 Mechanical Life Battery Swapping System Connector For EV HEV Ebike Electrical Motorcyle
10000 Mechanical Life Battery Swapping System Connector For EV HEV Ebike Electrical Motorcyle
10000 Mechanical Life Battery Swapping System Connector For EV HEV Ebike Electrical Motorcyle
Specifications
Brand Name :
Neopower
Model Number :
C535
Certification :
CE IEC FCC RoHs
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable according to Quantities
Payment Terms :
Western Union, MoneyGram
Supply Ability :
50000 per day
Delivery Time :
3~7 days
Packaging Details :
Standard Export Carton Box
Rated Current :
100A (16mm2), 150A (35mm2), 20A (2.5mm2)
Rated Voltage :
750V （φ 12， φ 6）300V （φ 3）AC/DC
Insulation Resistance :
≥5000mΩ(power) ≥1000mΩ(signal)
Dielectric Withstanding Voltage :
3000V AC (power), 1000V AC(signal)
Wire Range :
100A (16mm2), 150A (35mm2), 20A (2.5mm2)
IP Rating :
IP55
Operation Temperature :
-40 ℃ ~+125 ℃
Salt Spray Resistance :
144H (mating state)
HVIL :
Yes
Shell :
metal
Mechanical Life :
＞ 10000 times
Description

10000 Mechanical Life Battery Swapping System Connector for EV HEV Ebike Electrical Motorcyle

Part No.: C535

Features:

  • Floating Connection

  • Cable: 2.5mm2 16mm2 35mm2

  • Poka-yoke

Applicable for:

Power and signal transmission of battery swapping system for EV/HEV/Electrical motorcycle /ebike, etc.

Specifications:

  • Rated current: 100A (16mm2), 150A (35mm2), 20A (2.5mm2)
  • Rated voltage:750V (φ 12, φ 6)300V (φ 3)AC/DC
  • Insulation resistance: ≥5000mΩ(power), ≥1000mΩ(signal)
  • Dielectric withstanding voltage:3500V AC (power), 1000V AC(signal)
  • Temperature Range: -40~+125 ℃
  • IP Rating: IP55

Parameters:

Rated Current: 100A (16mm2), 150A (35mm2), 20A (2.5mm2)
Rated Voltage:

750V (φ 12, φ 6)300V (φ 3)AC/DC
Insulation Resistance: ≥5000mΩ(power), ≥1000mΩ(signal)
Dielectric Withstanding Voltage: 3500V AC (power), 1000V AC(signal)
Temperature Range: -40~+125 ℃
IP Rating: IP55
Application: Power and signal transmission of battery swapping system for EV/HEV/Electrical motorcycle /ebike, etc.
Mechanical Life: ＞10000 times

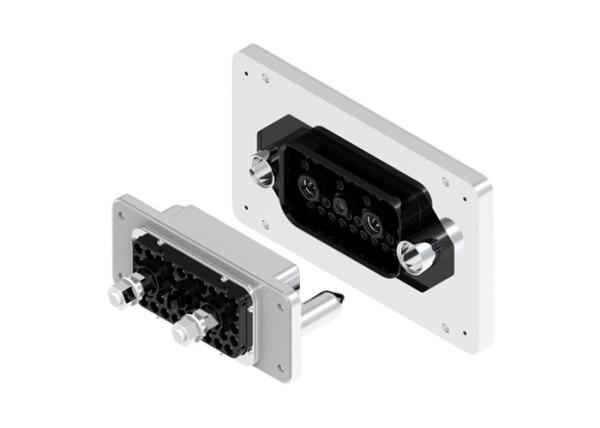

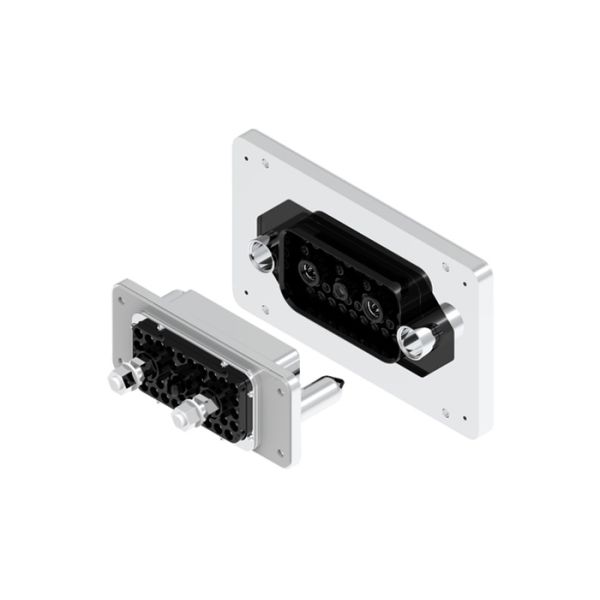

Product Pictures:

10000 Mechanical Life Battery Swapping System Connector For EV HEV Ebike Electrical Motorcyle

Drawings:

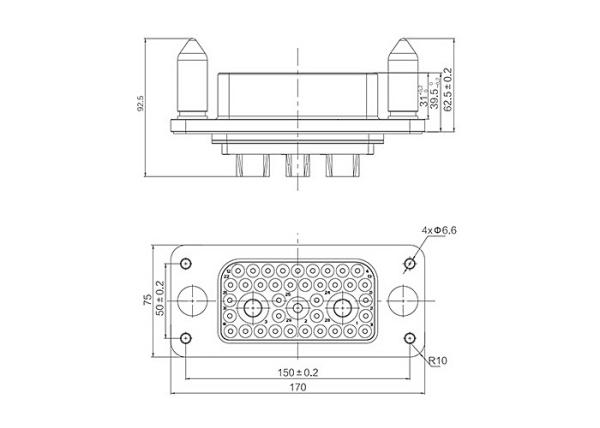

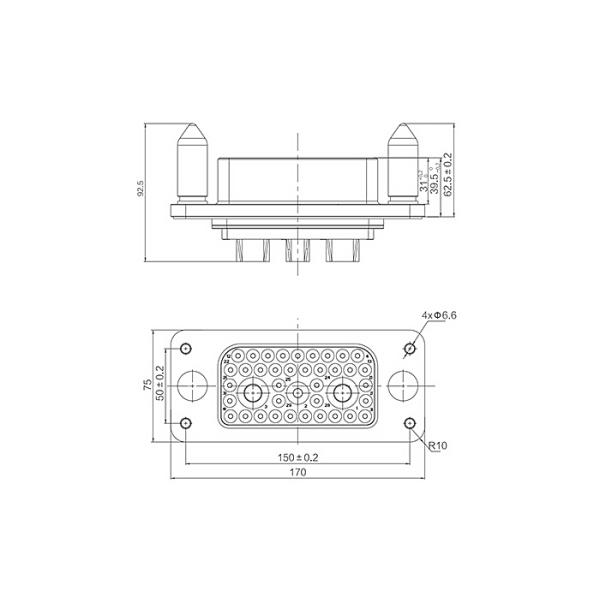

C535-EV-P(2+1+37)-P Plug

10000 Mechanical Life Battery Swapping System Connector For EV HEV Ebike Electrical Motorcyle

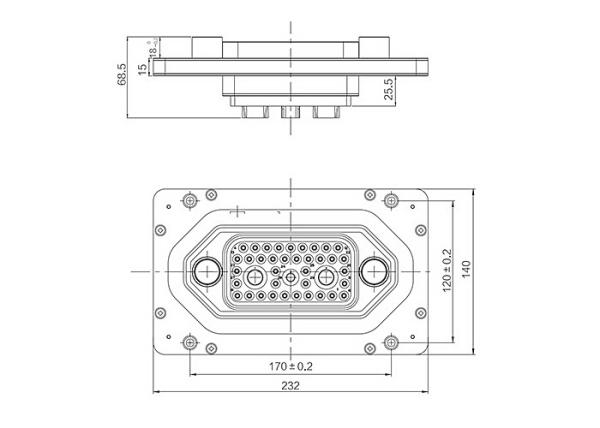

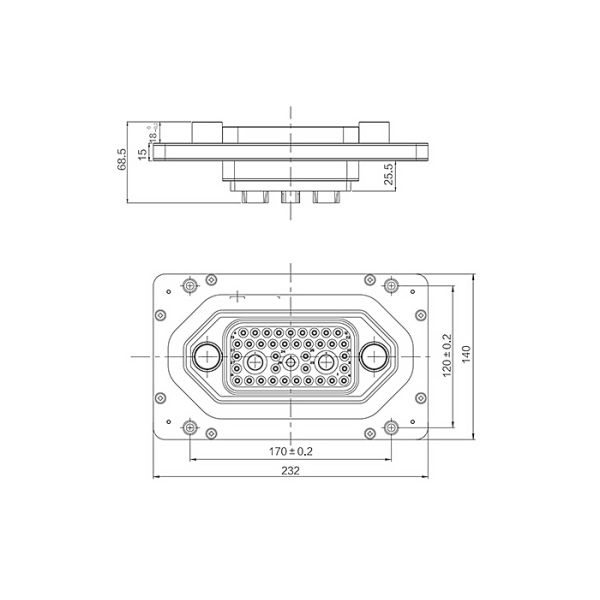

C535-EV-S(2+1+37)-R Socket

10000 Mechanical Life Battery Swapping System Connector For EV HEV Ebike Electrical Motorcyle

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

10000 Mechanical Life Battery Swapping System Connector For EV HEV Ebike Electrical Motorcyle

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

10000 Mechanical Life Battery Swapping System Connector For EV HEV Ebike Electrical Motorcyle10000 Mechanical Life Battery Swapping System Connector For EV HEV Ebike Electrical Motorcyle10000 Mechanical Life Battery Swapping System Connector For EV HEV Ebike Electrical Motorcyle10000 Mechanical Life Battery Swapping System Connector For EV HEV Ebike Electrical Motorcyle
