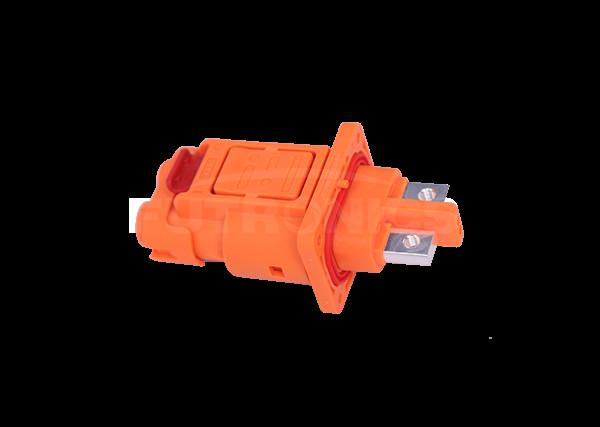

IP67 Waterproof Battery Connector Unshielded 150A 2 Pin Power Socket
IP67 Waterproof Battery Connector Unshielded 150A 2 Pin Power Socket
IP67 Waterproof Battery Connector Unshielded 150A 2 Pin Power Socket
IP67 Waterproof Battery Connector Unshielded 150A 2 Pin Power Socket
IP67 Waterproof Battery Connector Unshielded 150A 2 Pin Power Socket
IP67 Waterproof Battery Connector Unshielded 150A 2 Pin Power Socket
Specifications
Brand Name :
NeoPower
Model Number :
FHVP-M125S02
Certification :
IEC, FCC, CE, TUV
Place of Origin :
China
MOQ :
1 piece
Price :
US$36~45
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
100,000 PCS per Month
Delivery Time :
5-8 working days
Packaging Details :
standard carton box
Description

IP67 Waterproof Protection 2-pin 150A unshielded interlocked Receptacle Socket

Product parameters

Rated current 150A
Rated voltage 800V
Range of working temperature -40°C~125°C
Withstand voltage 2500VAC(1min)
Insulation resistance 5000MΩ min(@25℃)
Mechanical life 500 cycles
Waterproof level IP67
Salt spray level 48h
Number of terminals 2 pcs(6.0mm)
Temperature rise (rated current) MAX.40K
Terminal material and plating Copper alloy plating silver
Insulator material Thermoplastic
Fire-proof level UL94-V0

Product features

● 6mm pin

● Excellent electrical performance

● 4 kinds of foolproof mis-inserted keys

● Support wiring 16-25 shielded and unshielded cables

Product selection information

Plug selection

IP67 Waterproof Battery Connector Unshielded 150A 2 Pin Power Socket

Plug number Key position Adapter cable specification
FHVP-M125S02NNNCJ-01 N Key position Old national standard 16mm2
Outer diameter: Φ7.6~Φ8.8mm
New national standard 25mm2
Outer diameter: Φ7.9~Φ8.7mm
FHVP-M125S02NNXCJ-01 X Key position
FHVP-M125S02NNYCJ-01 Y Key position
FHVP-M125S02NNZCJ-01 Z Key position
FHVP-M125S02NNNCJ-02 N Key position New national standard 16mm2
Outer diameter: Φ6.4~Φ7.2mm
FHVP-M125S02NNXCJ-02 X Key position
FHVP-M125S02NNYCJ-02 Y Key position
FHVP-M125S02NNZCJ-02 Z Key position
FHVP-M125S02NNNCK-01 N Key position Old national standard 25mm2 (thick wall)
Outer diameter: Φ9.9~Φ11.0mm
FHVP-M125S02NNXCK-01 X Key position
FHVP-M125S02NNXCK-01 Y Key position
FHVP-M125S02NNZCK-01 Z Key position
FHVP-M125S02NNNCK-02 N Key position Old national standard 25mm2 (thin wall)
Outer diameter: Φ9.1~Φ9.9mm
FHVP-M125S02NNXCK-02 X Key position
FHVP-M125S02NNYCK-02 Y Key position
FHVP-M125S02NNYCK-02 Z Key position

Socket (rive crimp terminal) selection

IP67 Waterproof Battery Connector Unshielded 150A 2 Pin Power Socket

Plug number Key position
FHVP-F125P02NNNCK-01 N Key position
FHVP-F125P02NNXCK-01 X Key position
FHVP-F125P02NNYCK-01 Y Key position
FHVP-F125P02NNZCK-01 Z Key position

Socket (via lock copper) selection

IP67 Waterproof Battery Connector Unshielded 150A 2 Pin Power Socket

Plug number Key position
FHVP-F125P02NNNHK-01 N Key position
FHVP-F125P02NNXHK-01 X Key position
FHVP-F125P02NNYHK-01 Y Key position
FHVP-F125P02NNZHK-01 Z Key position

Socket (bottom round hole lock bronze) selection

IP67 Waterproof Battery Connector Unshielded 150A 2 Pin Power Socket

Plug number Key position
FHVP-F125P02NNNHK-01 N Key position
FHVP-F125P02NNXHK-01 X Key position
FHVP-F125P02NNYHK-01 Y Key position
FHVP-F125P02NNZHK-01 Z Key position
