5V12A Battery Capacity Discharge Tester Pulse Discharge Analyzer
5V12A Battery Capacity Discharge Tester Pulse Discharge Analyzer
5V12A Battery Capacity Discharge Tester Pulse Discharge Analyzer
5V12A Battery Capacity Discharge Tester Pulse Discharge Analyzer
5V12A Battery Capacity Discharge Tester Pulse Discharge Analyzer
5V12A Battery Capacity Discharge Tester Pulse Discharge Analyzer
Specifications
Brand Name :
Neware
Model Number :
CT-4008T-5V12A-S1
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Price :
USD negotiation per Unit
Payment Terms :
T/T
Supply Ability :
100 Units Per Month
Delivery Time :
8 work days
Packaging Details :
Carton
Voltage Range :
1.5V - 5V
Channel Current Range :
5mA - 6A - 12A
Min Current record condition :
2mA - 12mA - 24mA
Noise :
Less than 85dB
Data Output :
EXCEL , TXT
Database :
MYSQL
Description

Neware 5V12A Battery Capacity Discharge Test System Pulse Discharge Analyzer

Recycle Battery Function

1 . If you have recovery battery pack , like Toyota Prius battery pack - generally , each piece has 6 single NiMH cell , then several pieces batteries assembed in one pack , and you need to check each single cell for capacity , cyclie life , resistance , etc .

2 . Then assemble the battery cell after sorting by capacity , resistance . You will get the new battery pack . And last you will test the battery pack to check the real capacity and other function parameter .


Voltage and Current - the Very Essential

1 . The accuracies of Voltage and / or current may fundamentally affect the results come from a test . Thats why accuracies of voltage and current are so important to a battery tester .

2 . Neware battery testers provide good accuracies both for voltage and current . This ensures you get the most reliable data from your tests .

3 . A measurement system can be accurate but not precise , precise but not accurate , neither , or both . Neware battery testers provide good prrecision meanwhile .

4 . To get an overall performance of a measurement system , Measurement system analysis MSA is usually introduced for the study .

20ms Response Time


1 . This fast response time will meet rapidly changing power requirements

2 . Flexible Integration of Hardware and Data Management

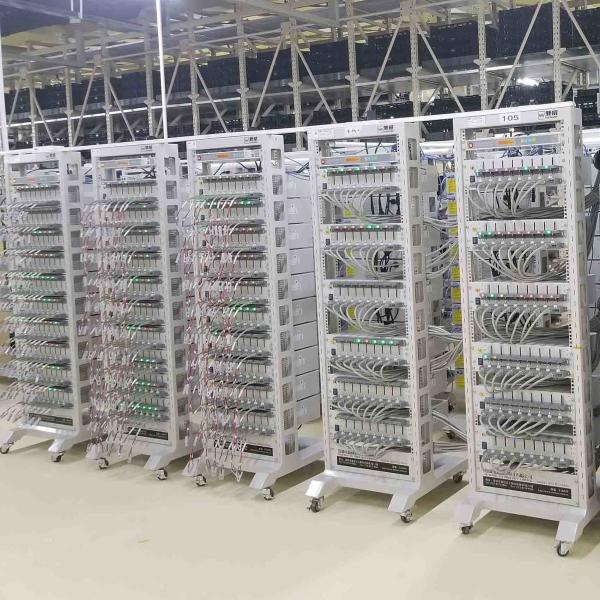

3 . BTS 4000 functions also as the core part of auto formation and grading system .

4 . With its structural data system , testing data can be analysed , summarized , managed and utilized by our extended program or customers own data and logic server .

Input Power 425W
Channel Features Constant Current Source and Constant Voltage Source with Independent pairs of Closed - loop Structure
Channel Control Mode Independent Control
Voltage Per Channel Voltage Range 1.5V - 5V
Accuracy 0.05 percent of FS
Current Per Channel Current Range Range1 , 5mA - 1A Range2 , 1A - 6A Range3 , 6A - 12A
Accuracy 0.05 percent of FS
Stability 0.05 percent of FS
Data Recording Record Condition Min Time - 100mS
Min Voltage - 10mV
Min Current - Range 1 , 2mA Range 2 , 12mA Range 3 , 24mA
Record Frequency 10Hz
Charge Charge Mode CCCharge , CVCharge , CCCVCharge , CPCharge
End Conditon Voltage , Current , Relative Time , Capacity , -deltaV
Discharge Discharge Mode CCD , CPD , CRD
End Condition Voltage , Current , Relative Time , Capacity
Pulse charge CCC , CPC
Discharge CCD , CPD
Min Pulse Width 500ms
Automated Switch Automated swith from charge to discharge for each pulse
Cycle Loop Measure Range 65535 times
Max Steps Per Loop 254
Nested Loop Nested loop Function , Max Support 3 Layers
Protection Software Protection Power - down Data Protection
Off - line Testing Function
Setting Protection Condition,Setting Parameter - Low Voltage limit , Upper Voltage limit , Low Current limit , Upper Current limit , Delay Time

5V12A Battery Capacity Discharge Tester Pulse Discharge Analyzer
