15kwh-750kwh Commercial racked cabinet High Voltage Solar energy storage system lifepo4
15kwh-750kwh Commercial racked cabinet High Voltage Solar energy storage system lifepo4
15kwh-750kwh Commercial racked cabinet High Voltage Solar energy storage system lifepo4
15kwh-750kwh Commercial racked cabinet High Voltage Solar energy storage system lifepo4
15kwh-750kwh Commercial racked cabinet High Voltage Solar energy storage system lifepo4
15kwh-750kwh Commercial racked cabinet High Voltage Solar energy storage system lifepo4
15kwh-750kwh Commercial racked cabinet High Voltage Solar energy storage system lifepo4
15kwh-750kwh Commercial racked cabinet High Voltage Solar energy storage system lifepo4
15kwh-750kwh Commercial racked cabinet High Voltage Solar energy storage system lifepo4
15kwh-750kwh Commercial racked cabinet High Voltage Solar energy storage system lifepo4
Specifications
Brand Name :
ASGOFT
Model Number :
ASH-HESS-50
Certification :
CE/ROHS/MSDS/UN38.3/ IEC
Place of Origin :
Guangdong
MOQ :
3 layers
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 PCS
Delivery Time :
With 1~3 Weeks
Packaging Details :
Strong carton package,Wooden crate
Material :
LiFePO4
Dimension :
600*600*1750mm
Rated Voltage :
512V
Rated Capaticy :
100Ah
Output Power :
50kWh
Layer :
10 layer
Description

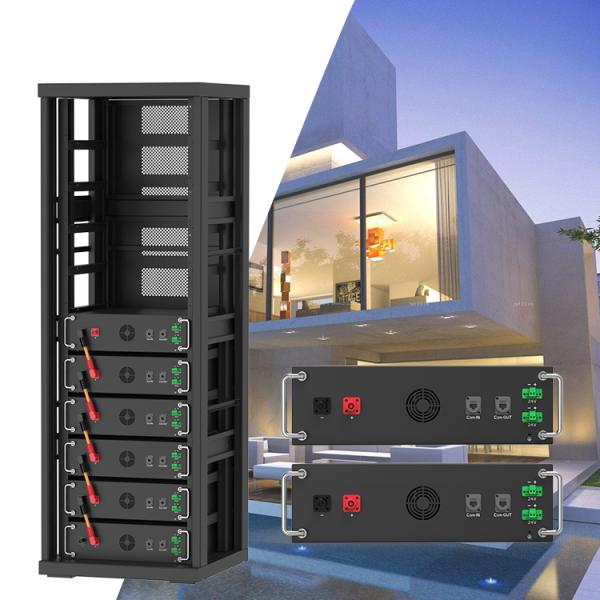

High voltage 15kwh-50kwh Lithium-ion battery pack smart BMS Lifepo4 51.2v 100Ah Rack Mounted Battery Lithium Ion Battery

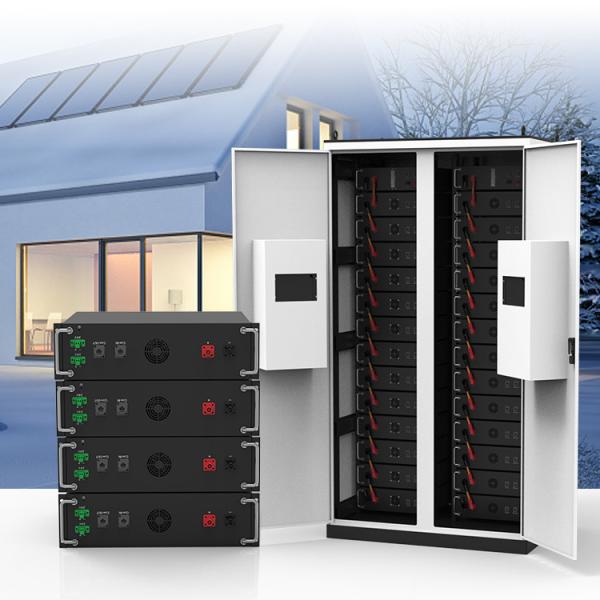

15kwh-750kwh Commercial racked cabinet High Voltage Solar energy storage system lifepo4

High Voltage 50kWh 75kWh Commercial Energy Storage Cabinet Description:

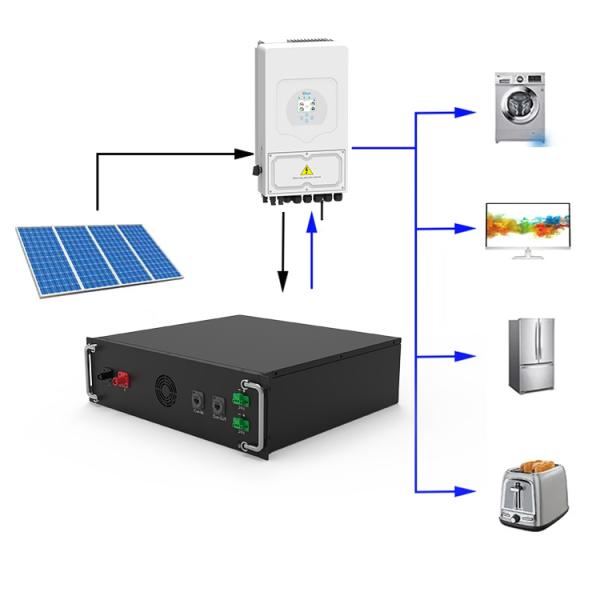

Our Commercial and Grid-Tied/ Off-Grid Energy Storage System is a flexible and scalable solution ideal for industrial use.

It supports peak shaving, self-consumption, and grid-tied power sales across a range of industries.

With a capacity ranging from 15kWh to 750kWh, it can be easily expanded to meet any energy needs.

The modular design allows for customization and expansion based on specific requirements.

With our 24/7 technical support, you can be assured of prompt assistance in case of any issues.

15kwh-750kwh Commercial racked cabinet High Voltage Solar energy storage system lifepo4

Features :

  • Product Item: 50kWh 75kWh High voltage energy storage cabinet
  • Capacity: 100Ah
  • Voltage: 512V/ 768V
  • Material: lithium iron phosphate

Specifications:

Nominal Voltage

512V-530V
Rated Capacity 100Ah
Stored energy 50 kWh
Cycle life@100%DOD 4000 times
Weight 650 KG
Internal Resistance

≤40 mΩ
Max. Charge Current 50 A
Max. Discharge Current 50 A
Charge Cut-off Voltage

584V
Discharge Cut-Off Voltage 400V
Dimensions

600*600*1750mm

Operating Temperature Range 20~60℃
Charge

0~55℃
Discharge

-20~60℃

Communication

RS485, CAN
Life Expectancy (years) 10-20 years max

x. Efficiency

97.60%

Euro Efficiency

97.00%

MPPT Efficiency

99.90%

Grid Regulation

VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150

Safety EMC / Standard

IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Product Details :

15kwh-750kwh Commercial racked cabinet High Voltage Solar energy storage system lifepo415kwh-750kwh Commercial racked cabinet High Voltage Solar energy storage system lifepo415kwh-750kwh Commercial racked cabinet High Voltage Solar energy storage system lifepo415kwh-750kwh Commercial racked cabinet High Voltage Solar energy storage system lifepo415kwh-750kwh Commercial racked cabinet High Voltage Solar energy storage system lifepo415kwh-750kwh Commercial racked cabinet High Voltage Solar energy storage system lifepo415kwh-750kwh Commercial racked cabinet High Voltage Solar energy storage system lifepo4

FAQ
1. Who are we? What do we do?
We are based in Shenzhen, China, and focus on ESS battery solutions for clients all over the world.
There are high-profile R&D, top management, and sales teams.
ODM/OEM is available.
2. How do we guarantee the product warranty?
There is a 5 to 10 years warranty period.
3. How long is the lead time of the sample order and production order?
About 1-2 weeks for a sample order.
About 2-4 weeks for production order.
4. How long is the shipment?
About 2 weeks via air, and 3-7 weeks via sea, depending on the destination.
5. How do we offer the after-sales service?
We're ready for 24/7 service.
