Gas Driven Electrode Die Cutting Machine Manual Pouch Cell Making Machine Customizable
Gas Driven Electrode Die Cutting Machine Manual Pouch Cell Making Machine Customizable
Specifications
Brand Name :
TICO
Model Number :
STC-BMQ-G85
Place of Origin :
Shenzhen, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
20~25 working days
Packaging Details :
Wood Packing
Product Name :
Gas Drive Electrode Die Cutter
Driven mode :
Gas Drive
Cutting die size :
Max. L85 * W65mm, customizable
Air pressure :
Max 1T, suggest 0.7Mpa for cuttingelectrode
Material feeding :
Manual
Dimension :
L350 * W4230 * H300mm
Weight :
40kg
Description

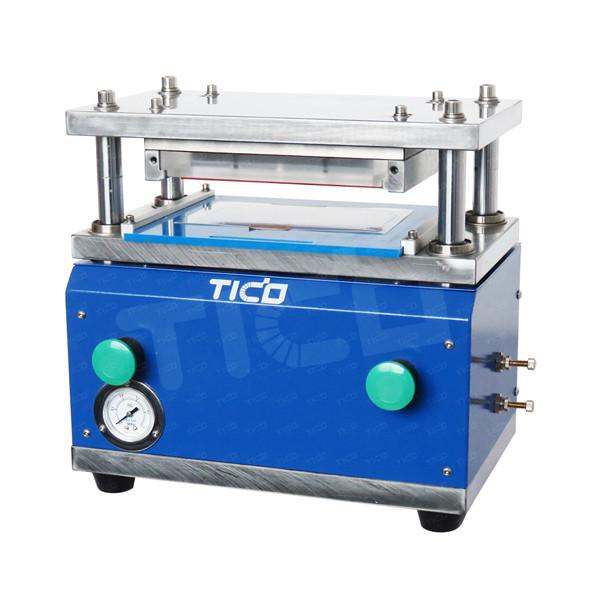

Gas Driven Electrode Die Cutting Machine for Pouch Cell Making

Brief Introduction

STC-BMQ-G85 is a gas driven electrode die cutter for pouch cell cathode / anode cutting for pouch cell preparation. It is a necessary equipment for pouch cell research with very high cutting accuracy. Gas driven mode, electricity is not required. Compact size can be put inside glove box.

Features

● Different size of cutting die can be optional and easy to replace.

● The cutting no burr, no coated material drop.

● 2 Start buttons, the die can only go down only when pressing the 2 buttons at the time to avoid hurting hands.

● Compact size can be put inside glove box.

● Long lifetime for the cutting die, >30000 times.

Technical Parameters

Model

STC-BMQ-G85

Driven mode

Gas Driven

Cutting die size

maximum L85 * W65mm, customized size is available

Cuting accuracy

±0.1mm

Air pressure

Max 1T, 0.7Mpa is suggested to cut battery electrode.

If it is used inside glove box, the gas same as glove box working gas.

Material feeding

Manual

Dimension

L350 * W4230 * H300mm

Weight

40kg

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
