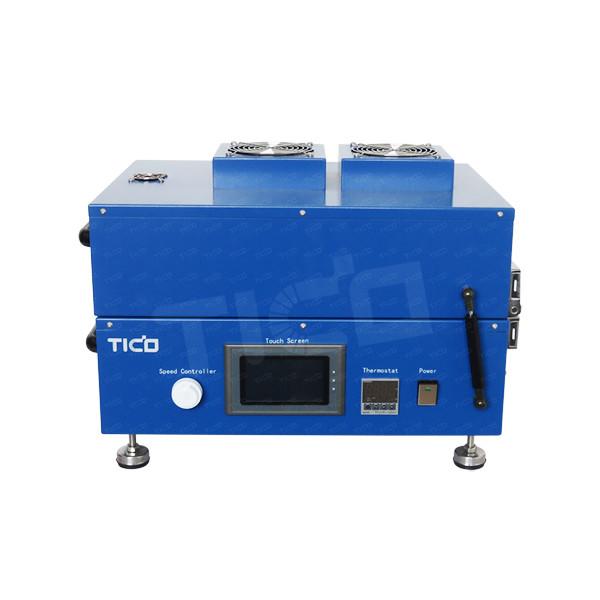

250mm Top Heating Automatic Film Coater With Applicator Temperature Adjustable
250mm Top Heating Automatic Film Coater With Applicator Temperature Adjustable
Specifications
Brand Name :
TICO
Model Number :
STC-TMH-T250
Place of Origin :
Shenzhen, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
10-15 working days
Packaging Details :
Wood Packing
Product Name :
Automatic Film Coating Machine
Heating Type :
Top Heating
Vacuum Pump :
Built-in
Max Heating Temperature :
150℃
Coating Length :
250mm maximum
Doctor blade :
100mm fixed width as standard, other size optional
Description

250mm Width Automatic Film Coating Machine with Top Heat Cover for Battery Research

Brief Introduction

STC-TMH-T250 is a compact film tape casting machine with vacuum chuck, which widely used in all kinds film coating research, like ceramic films, crystal films, lithium battery electrode coating, etc. It is designed with top cover heating, the heating temperature up to 150℃ adjustable and digital display.

Features

• Touch screen operation, high automation.

• Vacuum aluminium chuck is designed for quick suction of substrate.

• Built-in vacuum pump is designed.

• Coating stroke length can be set.

• Heating temperature up to 150℃ adjustable, and it's digital display.

Technical Parameters

Working voltage AC220V
Coating length Max 250mm adjustable
Doctor blade 100mm fixed width as standard , other size is optional
Coating thickness 0.01~3.5mm adjustable
Vacuum chuck L365 x W200 x H30mm
Vacuum pump Internal
Coating speed 0~200mm/s adjustable
Heating method Top cover heating
Heating temperature RT~150℃ adjustable, digital display
Heating temperature accuracy ±1℃
Dimension L500 x W310 x H330mm
Weight 45kg

Warranty

1 year's warranty with lifetime support.

FAQ

1. Are you a manufacturer ?

A: Yes, our factory is located in Shenzhen, China.

We have more than 10 years experience for manufacturing battery lab research equipment. We owns a professional R&D department.

2. Do you accept customized product ?

A : Yes. Most of our products can be customzied to meet different requirements.

3. Will you provide test video before dispatch?

A : Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service ?

A : Yes, we can dispatch professional engineer for on-site installation service.
