Specifications
Brand Name :
Silver Star
Model Number :
A4L160, A3L120, H4L192, H5L240
Certification :
ISO9001, SGS
Place of Origin :
China
MOQ :
40set
Price :
110-160usd/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20000sets/week
Delivery Time :
in 30 working days after deposit
Packaging Details :
FCL: Standard exporting packaging; LCL: Wooden box, carton packaging
Product name :
Fully automatic poultry egg and chicken cage
Cage wire meterial :
Q235 bridge steel, 3-6mm thickness
Wire mesh surface :
Hot or cold galvanization
Cage type :
A、H type chicken cage
Egg Collecting System :
Automatic Egg Collecting System
Life time :
15-20years
Use :
egg layer chicken,laying hens chicken cage
Service :
24 Hours Online
Core Components :
Feed Trough, Water Tank, Cage Mesh, Nipple Drinker, screw, connecting pipe fittings
Description

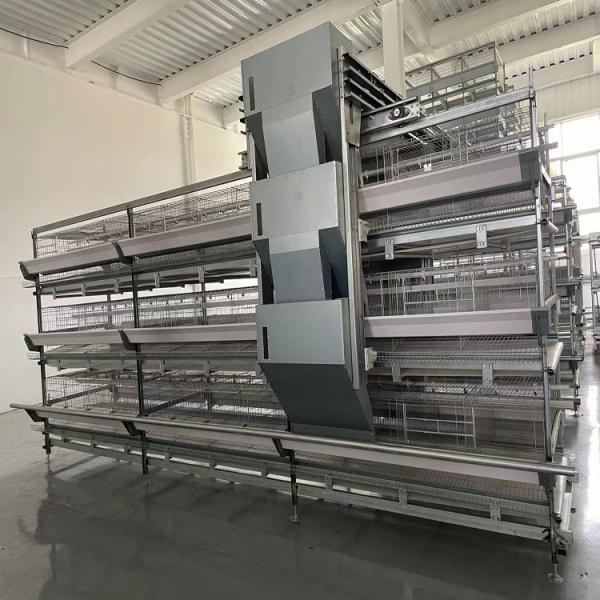

Fully automatic H-type laying cage

Product Description:

1.The characteristics of the chicken cage are unique horizontal door design, the cage door space is larger, the position of the chicken feeding can be arbitrarily changed, effectively solve the crowding of the chickens when feeding, to ensure that the chickens feed more evenly;

2. Save feed, also reduce the stress response of laying hens and the chance of chicken injury, save water, low egg breaking rate;

3. Good ventilation and lighting, conducive to the growth of chickens, high feeding density, small footprint, high degree of intensification, good economic benefits; Suitable for all types of breeding chicken houses (open, semi-open and closed)

Our Team

With over 30 years’ continuous improvement of poultry equipment and 20 years’ chicken raising experience, Silver Star not only has been the supplier of each cooperative partner, but also their farming consultant. Our experienced team can offer one-site serice, including project design, quality control, installation, after-sales service and farming guidance.

Cage size:

A Type Battery Cages Layer Poultry Farming Equipment
Model Length(mm) Width(mm) Heigh(mm) Door Qty Birds Qty/Set
3 Tiers 1950 2300 1500 5 90
4 Tiers 1950 2300 1900 5 120
3 Tiers 1950 2300 1600 4 96
4 Tiers 1950 2300 2000 4 128
3 Tiers 2150 2300 1600 5 120
4Tiers 2150 2300 2000 5 160
3Tiers 2150 2360 1600 5 120
4 Tiers 2150 2360 2000 5 160
3 Tiers 1720 2360 1600 4 96
4 Tiers 1720 2360 2000 4 128

H Frame Layer Poultry Farming Equipment
Cage size Door No. /cage Chicken No. /door No. of tiers Birds qty/set Area per bird (cm2/bird) Each door Size(mm) Unit Cage Size(mm)
1800*600*430 4 6 3 144 450 450x600x430 1800x1200x2140
1800*600*430 4 6 4 192 450 450x600x430 1800x1200x2790
1800*600*430 4 6 5 240 450 450x600x430 1800x1200x3440
1800*600*430 4 6 6 288 450 450x600x430 1800x1200x4090
1800*600*430 4 6 8 384 450 450x600x430 1800x1200x5390
650*625*500 1 9 3 54 450 650x625x500 650x1250x2220
650*625*500 1 9 4 72 450 650x625x500 650x1250x2870
650*625*500 1 9 5 90 450 650x625x500 650x1250x3520
650*625*500 1 9 6 108 450 650x625x500 650x1250x4170
650*625*500 1 9 8 144 450 650x625x500 650x1250x5470

H-type chicken coop, also known as multi-layer laminated chicken coop, has many advantages such as large breeding amount per unit area, high land utilization rate, low labor cost, low staff dynamic intensity, low risk of disease transmission, simple fecal treatment, cleanliness and hygiene. At the same time, the H-type chicken cage can also be well combined with the modern Internet and intelligent technology, and more intelligent information technology can be applied to the preparation of livestock breeding, improve the level of chicken intensification and automation, and promote the technological upgrading of the chicken industry

Space-Saving Design High Yield H-Type Fully Automatic Layer Cages for Modern Farms

Space-Saving Design High Yield H-Type Fully Automatic Layer Cages for Modern Farms

Space-Saving Design High Yield H-Type Fully Automatic Layer Cages for Modern Farms

Space-Saving Design High Yield H-Type Fully Automatic Layer Cages for Modern FarmsSpace-Saving Design High Yield H-Type Fully Automatic Layer Cages for Modern Farms

Space-Saving Design High Yield H-Type Fully Automatic Layer Cages for Modern Farms
