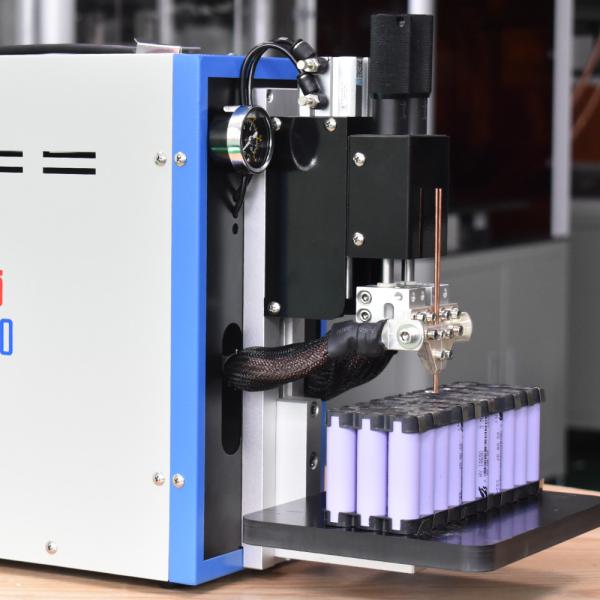

Welding Power Supply 21700 Battery Foot-Type Resistance Spot Welder

● Using single-chip microcomputer control, it can realize single-pulse, multi-pulse and double-pulse welding.

● Lithium battery welding machine adopts proprietary output energy optimization algorithm, reasonable output voltage and output current conversion, strong welding ability, firm welding joint, no false welding, low ignition and excellent surface quality.

● Independent welding pin, spring cushioning design, precise adjustment of welding pressure.

● The welding head platform can be adjusted up and down, and batteries of various specifications can be welded.

● Imported alumina copper electrode, pure copper welding cable, pure copper electrode chuck and other high-quality accessories, the machine is durable.

● Intelligent chip precision control, imported control chip, microsecond level corresponding chip integration process, small size, can work for a long time, and stable operation.

● All parameters are set digitally, and the parameter adjustment is stable, intuitive and accurate.

● The welding adopts vertical spot welding, and the pressure depth is adjustable.

● It adopts the pneumatic precision welding head independently developed by Cheebo, which has precise pressure adjustment control.

● Digital LED display, equipment parameter adjustment is more intuitive, easy to learn and operate.

● Microcomputer technology control, grid voltage control, automatic tracking compensation.

● Portable lithium battery spot welding machine adopts integrated design, which saves space and is easy to carry.

● The welding machine can store multiple programs in advance, and can be changed and recalled at will.

● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.

1. Welding case

Power on -- Adjust parameters -- Place the installed battery pack on the workbench -- step on the pedal -- the welding head starts to move -- spot

welding is completed -- the welding head returns

1. High quality cable

Pure copper cable, low resistance wire, high current carrying capacity, thick enough, and non heating during welding.

2. Welding table

Welding table can be adjusted up and down, loose the screw can be adjusted, simple and convenient, suitable for a variety of specifications of battery welding.

3. Operation panel

LED digital display. "+", "-" to adjust the data. "#" switch to adjust the data. Data adjustment is simple and convenient. One-click switch button.

1. Polish the welding needle regularly.
2. Regularly check whether there is loosening in each part.
3. Do not disassemble circuit components without permission.
4. Periodically clean welding dust from all parts of the device.
5. Check the lubrication degree of each moving part every month
6. Please read the instructions carefully before operation and operate according to the specifications of the instructions.

1. Welding pressure: 1-5 kg/F
2. Welding energy adjustment: "+" to increase energy, "-" to reduce energy, "#" to switch parameters

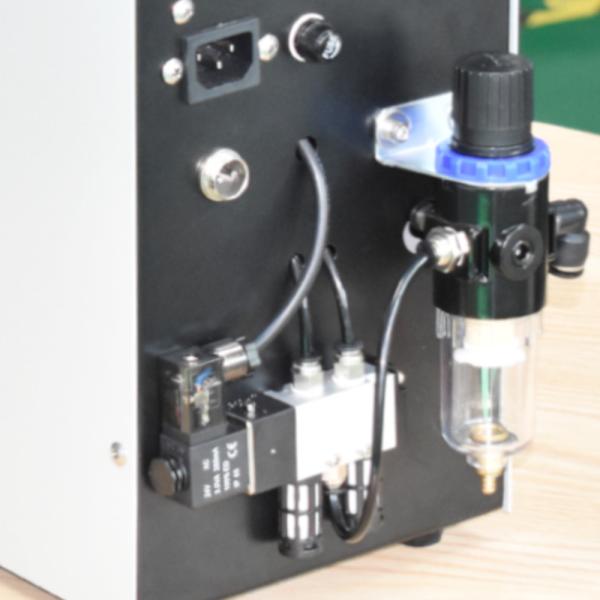

3. Air pressure regulation
4. Adjustment of needle extension length
5. Adjust the position under the table top
6. Adjust the spacing between the left and right pins

FAQ

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.

Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.

Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.

Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.

Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.

Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.

Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
