Hardness Steel Lamp Cap Gauge For Testing Contact - Making 7006-22A-5
Hardness Steel Lamp Cap Gauge For Testing Contact - Making 7006-22A-5
Specifications
Brand Name :
Kingpo
Model Number :
7006-22A-5
Certification :
iso9001
Place of Origin :
china dongguan
MOQ :
1
Price :
To be quoted
Payment Terms :
T/T
Delivery Time :
7 working days
Packaging Details :
safety carton pack or plywood box
Standard :
IEC60061-3
HRC :
C58 To C60
Material :
Hardness Steel
Supply Ability :
1000 pcs per month
Description

E27 Lampholder gauges | Gauge For Testing Contact-making and Protection Against Accidental Contact During Insertion Of Lamps in Lampholdes E27-7006-22A-5

Purpose:

to check E27 lamp holders in respect of:

a) contact-making with lamps having adverse dimensions.

b) protection against accidental contact with live parts, viz, the cap shell, during insertion of a lamp.

Testing:

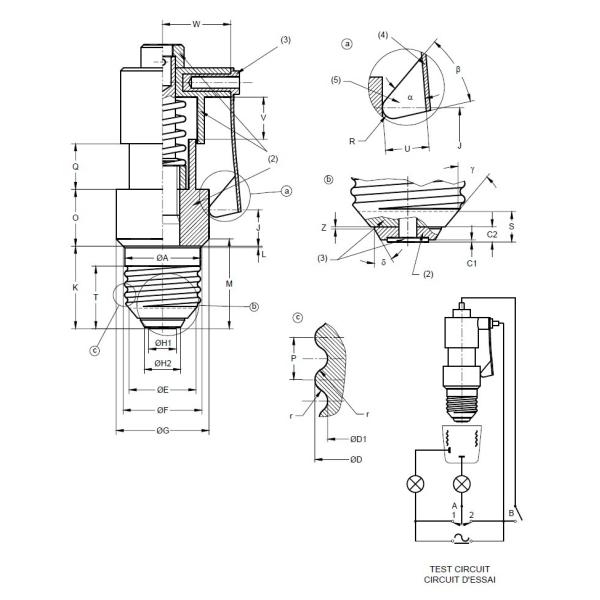

the holder is connect in the test cirsuit as showm

a) with switch A in position 2 and switch B open, the gauge is screwed fully home.

in this position, both lamps shall light.

b) with switch A in postion 1 and switch B closed, the gauge is screwed in slowly until either of the lamps lights.

with the gauge held in this position, switch B is opened and the test probe at the side of the gauge is slid downwards as far as it will go into the space between the gauge and the holder.

in this postion the lamps shall not light.

Related gauges for E27 lamp holder:

E27 lamp holder gauge "GO" GAUGE FOR LAMPHOLDERS E27 7006-25A-2
NOT GO”GAUGE FOR SCREW THREADS OF LAMPHOLDERS E27 7006-26-4
GAUGE FOR TESTING PROTECTION AGAINST BULB-NECK DAMAGE AND FOR TESTING CONTACT-MAKING IN LAMPHOLDERS E27 7006-21-5
GAUGE FOR TESTING CONTACT-MAKING AND PROTECTION AGAINST ACCIDENTAL CONTACT DURING INSERTION OF LAMPS IN LAMPHOLDERS E27 7006-22A-5
GAUGE FOR DETECTING SIDE-CONTACTS WITH CUTTING-EDGES IN LAMPHOLDERS E27 7006-22B-1
GAUGE I FOR CHECKING SIDE-CONTACT RESILIENCY IN LAMPHOLDERS E27 7006-22C-1
GAUGE II FOR CHECKING SIDE-CONTACT RESILIENCY IN LAMPHOLDERS E27 7006-22D-1
