Specifications
Brand Name :
kingpo
Model Number :
KP6560
Certification :
iso9001
Place of Origin :
china dongguan
MOQ :
1
Price :
To be quoted
Supply Ability :
1000 pcs per month
Packaging Details :
safety carton pack or plywood box
MATEL :
420
standant :
IEC62560
MODEL :
IEC60601-3 GAUGE
Delivery Time :
7 working days
Payment Terms :
T/T
Description

IEC 62560 Test Equipment,Testing And Measuring Equipment/Allowed Subcontracting IEC 62560 Edition 1 2011 – A1:2015

TESTING AND MEASURING EQUIPMENT/ALLOWED SUBCONTRACTING

IEC 62560 Edition 1 2011 – A1:2015

Self-ballasted LED lamps for general lighting services by voltage > 50 V - Safety specifications

“R” Required

“S” May be subcontracted, see OD 2012

“SF” Specialized Facility, see IECEE 02-2

“W” Witness testing in the categories “MED” and “MEAS”

“3PPS” Three Phase Power Supply required

Clause Measurement/testing Testing / measuring equipment / material needed Price (RMB) Subcontracting
5.3 Marking Hexane, R
water,
piece of cloth

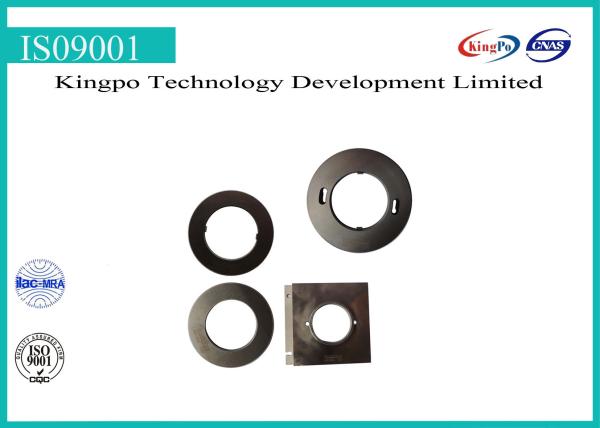

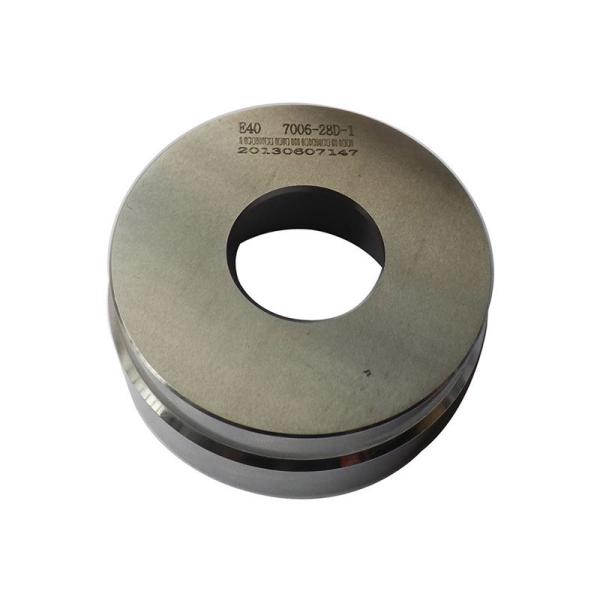

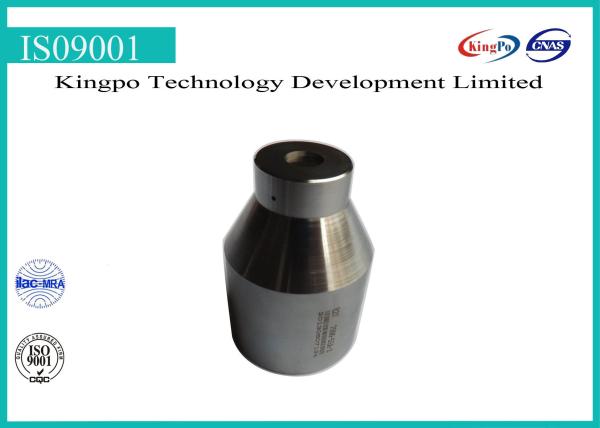

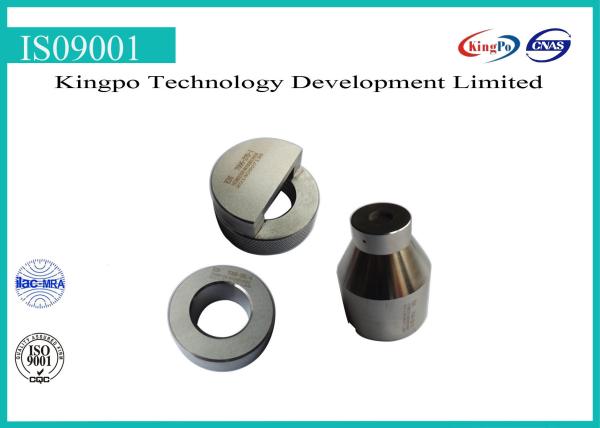

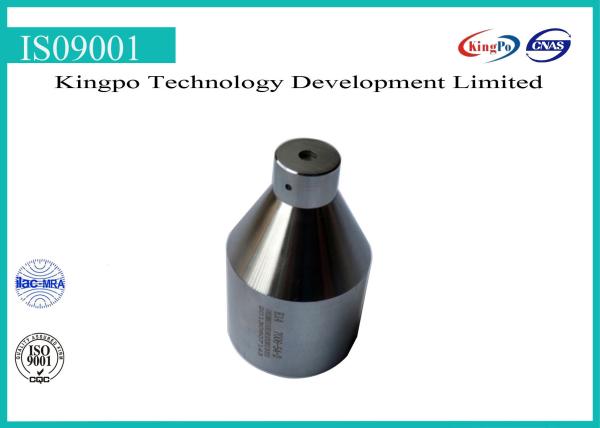

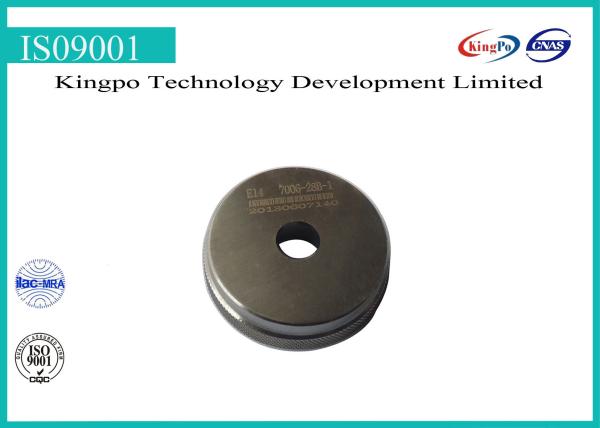

6.1 Cap interchangeability - Table 1 Gauges according to IEC 60061-1 and IEC 60061-3 R
6.2 Bending moment and mass imparted by the lamp at the lamp holder Test finger with indicating device and with force meter, R
Weighting device
7 Protection against accidental contact with live parts Standard Test finger (IEC 60529) , R
IEC 60061-3, sheet 7006-51A for E27 caps
IEC 60061-3, sheet 7006-55 for E14 caps
Mega ohmmeter,
High Voltage transformer
8.2 - 8.3 Insulation resistance and electric strength after humidity treatment Humidity cabinet, R
Mega ohmmeter, Use same as Clause 7
High Voltage transformer Use same as Clause 7
9.2.1 Torsion resistance of unused lamps Holder for torque test Figure 3 and figure 4 R
9.4 Axial strength of Edison Caps Gauges according table 4, R
dynamometer
10 Cap temperature rise Temperature test cap R
Temperature test draught-proof enclosure
11 Resistance to heat Heating cabinet, R
Ball pressure test apparatus
12 Resistance to flame and ignition Needle flame test apparatus, R
Glow-wire test apparatus
14 Creepage distances and clearances Digital calliper (or equivalent) R
15 Abnormal operation Circuit shown in Figure 8 (for non-dimmable lamps on a dimmer or an electronic switch), R
test finger
17 Photobiological safety UV radiation test instruments / retinal blue light hazard test instruments (Equipment List of IEC/TR 62778:2012, Edition 1.0), S
Goniophotometric measurement system
18 Ingress protection IP X4 test equipment R
