Test Finger Nail , IEC 60335-1 Figure 7 Test Equipment Test Finger Nail
Test Finger Nail , IEC 60335-1 Figure 7 Test Equipment Test Finger Nail
Test Finger Nail , IEC 60335-1 Figure 7 Test Equipment Test Finger Nail
Test Finger Nail , IEC 60335-1 Figure 7 Test Equipment Test Finger Nail
Test Finger Nail , IEC 60335-1 Figure 7 Test Equipment Test Finger Nail
Test Finger Nail , IEC 60335-1 Figure 7 Test Equipment Test Finger Nail
Test Finger Nail , IEC 60335-1 Figure 7 Test Equipment Test Finger Nail
Test Finger Nail , IEC 60335-1 Figure 7 Test Equipment Test Finger Nail
Specifications
Brand Name :
KingPo
Model Number :
IEC 60335-1 Figure 7
Certification :
Calibration Certificate
Place of Origin :
China
MOQ :
1
Price :
To be quoted
Payment Terms :
T/T
Supply Ability :
50 pcs per month
Delivery Time :
7 working days
Packaging Details :
safety carton pack or plywood box
Place Of Origin :
Guangdong,China(mainland)
Finger Diameter :
Ø14 mm
Finger Length :
80mm
Standard :
IEC 60335-1 Figure 7
Description

Test finger nail , IEC 60335-1 Figure 7 Test Equipment Test finger nail

Product information:

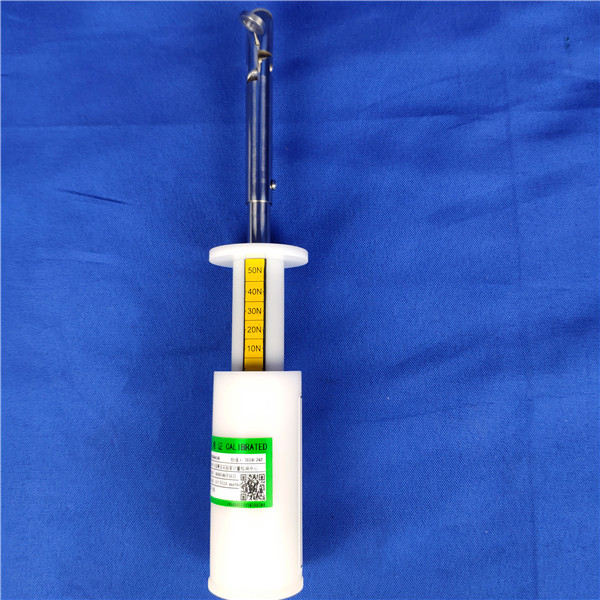

The test finger nail complies with the IEC 60335-1figure 7 standard requirements. It is applicable for the non-removable components which are used for electric shocking water or touching the movement parts to see whether they can go through the mechanical stress that happened in normal use. Thus to judge the components conform to the required protection grade or not. Three kinds of force can be applied. They are 10N,20N,30N,40N,50N

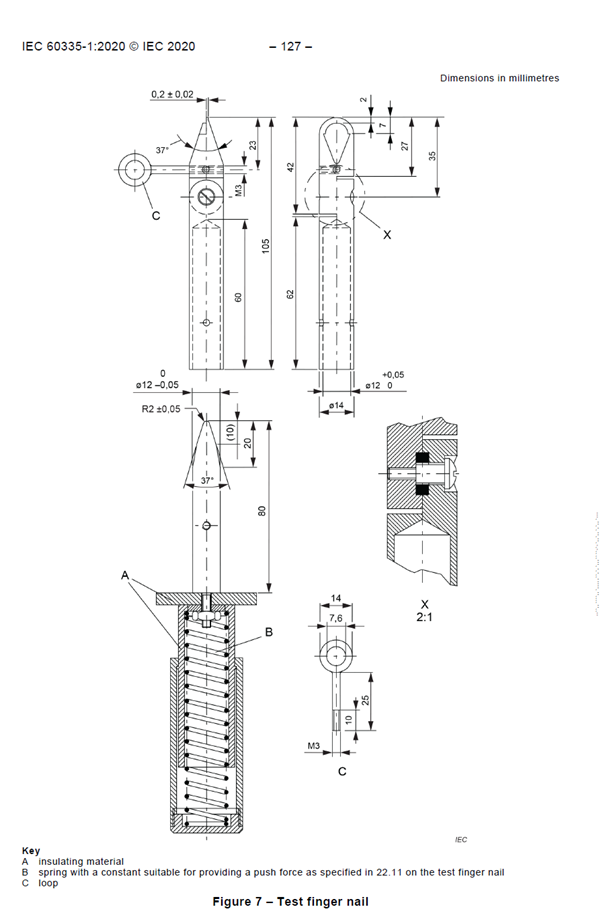

Standard:IEC 60335-1figure 7.

Application:It is applicable for the non-removable components which are used for electric shocking water or touching the movement parts to see whether they can go through the mechanical stress that happened in normal use. Thus to judge the components conform to the required protection grade or not.

Test sample:It is applicable for the non-removable components which are used for electric shocking water or touching the movement parts to see whether they can go through the mechanical stress that happened in normal use.

Feature:With terminal can be use for electric shock test, which can be applied force of 10N,20N,30N,40N,50N

Test Finger Nail , IEC 60335-1 Figure 7 Test Equipment Test Finger Nail

Test Finger Nail , IEC 60335-1 Figure 7 Test Equipment Test Finger Nail

Test Finger Nail , IEC 60335-1 Figure 7 Test Equipment Test Finger Nail

Packaging and Shipping

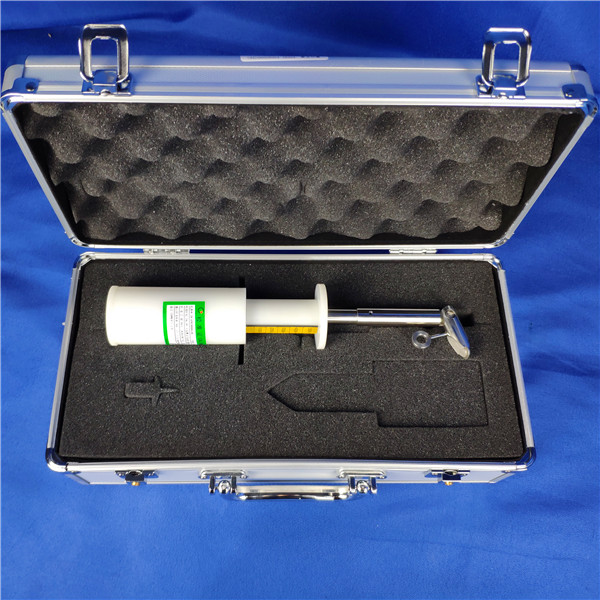

1. Aluminium box and carton box, careful and tight package, make sure the package is intact.

Test Finger Nail , IEC 60335-1 Figure 7 Test Equipment Test Finger Nail

2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order.

3. The shipping time is different, it depends on the distance bewteen us. At usual, exclude the preparing time, the goods would be sent to you in 5days.
