IEC 60335-2-9 Test Vessel Aluminium Diameter 120mm Mass 1.8kg
IEC 60335-2-9 Test Vessel Aluminium Diameter 120mm Mass 1.8kg
IEC 60335-2-9 Test Vessel Aluminium Diameter 120mm Mass 1.8kg
IEC 60335-2-9 Test Vessel Aluminium Diameter 120mm Mass 1.8kg
IEC 60335-2-9 Test Vessel Aluminium Diameter 120mm Mass 1.8kg
IEC 60335-2-9 Test Vessel Aluminium Diameter 120mm Mass 1.8kg
IEC 60335-2-9 Test Vessel Aluminium Diameter 120mm Mass 1.8kg
IEC 60335-2-9 Test Vessel Aluminium Diameter 120mm Mass 1.8kg
Specifications
Brand Name :
KingPo
Model Number :
IEC 60335-2-9
Certification :
Calibration Certificate (ISO17025)
Place of Origin :
China
MOQ :
1
Price :
To be quoted
Payment Terms :
T/T
Packaging Details :
safety carton pack or plywood box
Brand :
KingPo
Material :
aluminium
Diameter :
φ120 mm ± 10 mm
standard :
IEC60335-2-9
Vessel mass :
0.48kg
sand mass :
1.32kg
sand+vessel mass :
1.8± 0.01 kg
edges :
R10mm min
Description

IEC 60335-2-9, 6th Edition (2008) - A1/2012- A2/2016

Household and similar electrical appliances – Safety – Part 2-9: Particular requirements for grills, toasters and similar portable cooking appliances

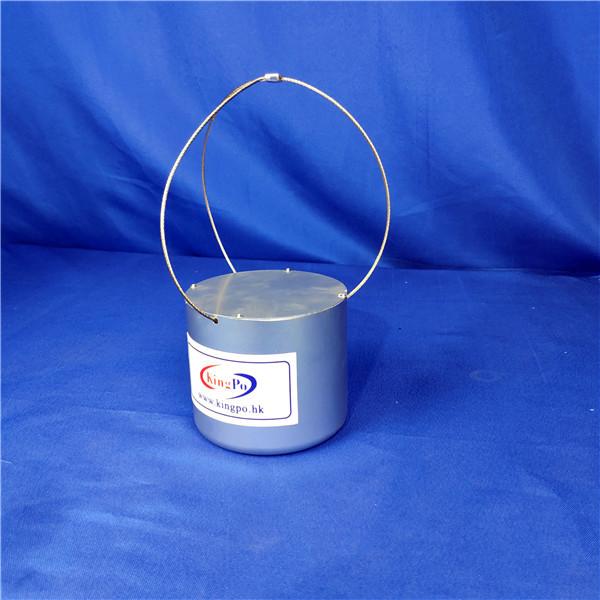

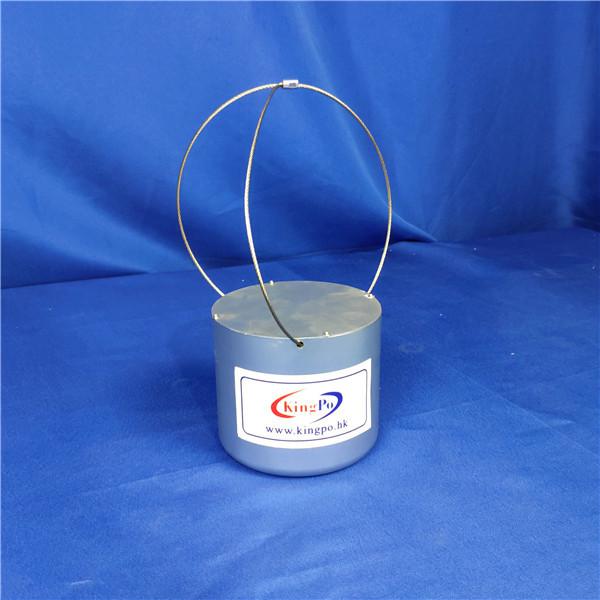

IEC 60335-2-9 Test vessel of aluminium-diameter of 120 mm,mass 1.8kg

21.101 Surfaces of hotplates of glass-ceramic or similar material shall withstand the stresses liable to occur in normal use.
Compliance is checked by the following test.
The hotplate is operated at rated power input with its control adjusted to the highest setting.
Induction hotplates are operated as specified in Clause 11. When steady conditions are established, the hotplate is switched off and a vessel with its base horizontal is dropped from a height of 150 mm onto the cooking zone. The vessel has a copper or aluminium base that is flat over a diameter of 120 mm ± 10 mm, its edges being rounded with a radius of at least 10 mm. It is uniformly filled with at least 1,3 kg of sand or shot so that the total mass is 1,80 kg ± 0,01 kg.

IEC 60335-2-9 Test Vessel Aluminium Diameter 120mm Mass 1.8kg
