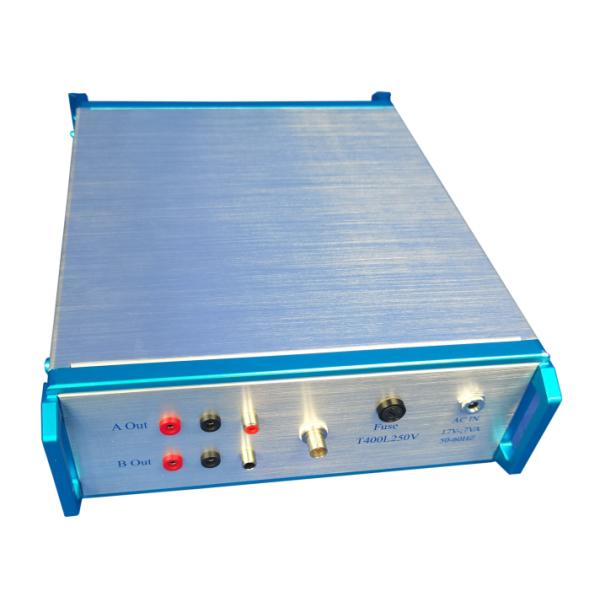

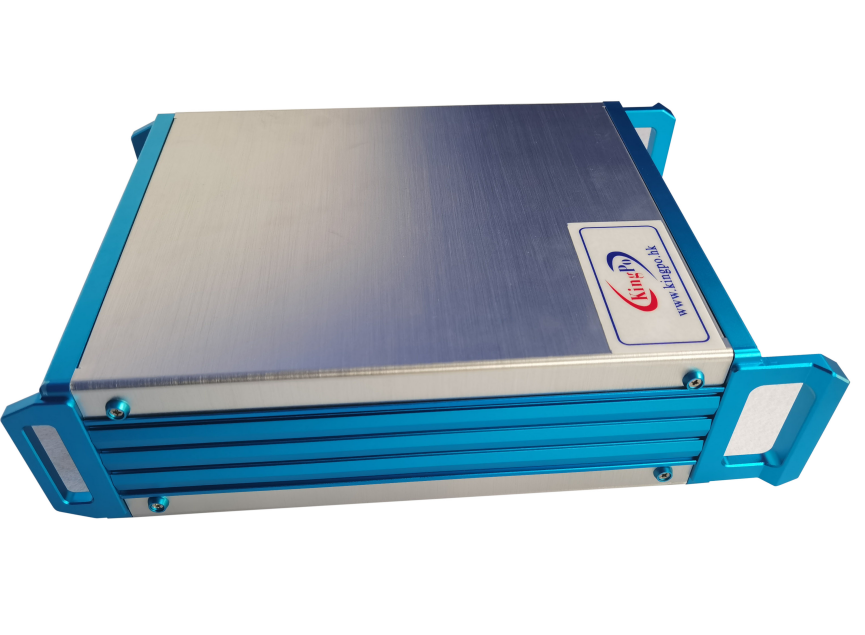

KP9280 Pink Noise Generator IT Test Equipment IEC 60065 Clause 4.2 And 4.3 And IEC 62368-1 Annex E
KP9280 Pink Noise Generator IT Test Equipment IEC 60065 Clause 4.2 And 4.3 And IEC 62368-1 Annex E
KP9280 Pink Noise Generator IT Test Equipment IEC 60065 Clause 4.2 And 4.3 And IEC 62368-1 Annex E
KP9280 Pink Noise Generator IT Test Equipment IEC 60065 Clause 4.2 And 4.3 And IEC 62368-1 Annex E
KP9280 Pink Noise Generator IT Test Equipment IEC 60065 Clause 4.2 And 4.3 And IEC 62368-1 Annex E
KP9280 Pink Noise Generator IT Test Equipment IEC 60065 Clause 4.2 And 4.3 And IEC 62368-1 Annex E
Specifications
Brand Name :
Kingpo
Model Number :
Model KP9280
Certification :
Calibration Certificate
Place of Origin :
Sweden
MOQ :
1
Price :
To be quoted
Payment Terms :
T/T
Supply Ability :
10 set/ month
Delivery Time :
7 work days
Packaging Details :
safety carton pack or plywood box
Weight :
5kg
Dimensions :
290x270x60 mm (LxWxH)
Supply :
220 VAC 50 Hz
Standards :
IEC60065
Channels :
0° or 90°
Pink noise :
1000 Hz
Description

This Pink Noise Generator meets the requirements for pink noise in IEC 60065, Clause 4.2 and 4.3 and IEC 62368-1, Annex E.


It is especially developed for all types of tone frequency amplifiers,when you need 2 channels/phase 90°


Technical Specification

•Pink noise or sine wave 1000 Hz (not at the same time)

•Two output channels when testing

•The channels can be phase shifted to 0° or 90°

•Fine adjustments of output voltage

•RCA and 4 mm banana type output connectors

•Audio-cables for test object included (RCA and 3,5 mm phono)

•Output signal according to IEC 60065 Annex C, fig. C1 (IEC60268)

•Amplitudes of sine wave and pink noise according to table below:


Output Voltage Sine wave 1 kHz Filtered pink noise


Low: 0-100 mV/1 kohm 0-35 mV rms/1 kohm


Medium: 0-1 V/1 kohm 0-350 mV rms/1 kohm


High: 0-5 V/1 kohm 0-1,7 V rms/1 kohm

Pink Noise Generator Manual.pdf
