IEC 62368-1 Annex E Pink Noise Generator,Meets The Requirements For Pink Noise In IEC 60065 Clause 4.2 And 4.3
IEC 62368-1 Annex E Pink Noise Generator,Meets The Requirements For Pink Noise In IEC 60065 Clause 4.2 And 4.3
IEC 62368-1 Annex E Pink Noise Generator,Meets The Requirements For Pink Noise In IEC 60065 Clause 4.2 And 4.3
IEC 62368-1 Annex E Pink Noise Generator,Meets The Requirements For Pink Noise In IEC 60065 Clause 4.2 And 4.3
IEC 62368-1 Annex E Pink Noise Generator,Meets The Requirements For Pink Noise In IEC 60065 Clause 4.2 And 4.3
IEC 62368-1 Annex E Pink Noise Generator,Meets The Requirements For Pink Noise In IEC 60065 Clause 4.2 And 4.3
Specifications
Brand Name :
Kingpo
Model Number :
Model 9280
Certification :
Calibration Certificate
Place of Origin :
CHINA
MOQ :
1
Price :
To be quoted
Payment Terms :
T/T
Supply Ability :
10 set/ month
Delivery Time :
7 work days
Packaging Details :
safety carton pack or plywood box
Weight :
4kg
Dimensions :
290x270x60 mm (LxWxH)
Supply :
220 VAC 50 Hz
Standards :
IEC60065.IEC62368
Channels :
0° or 90°
Pink noise :
1000 Hz
Description

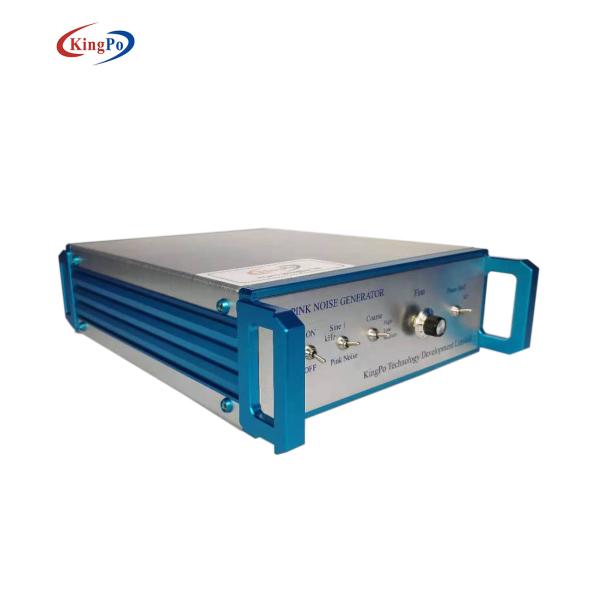

This Pink Noise Generator meets the requirements for pink noise in IEC 60065, Clause 4.2 and 4.3 and IEC 62368-1, Annex E.
It is especially developed for all types of tone frequency amplifiers,when you need 2 channels/phase 90°
Technical Specification

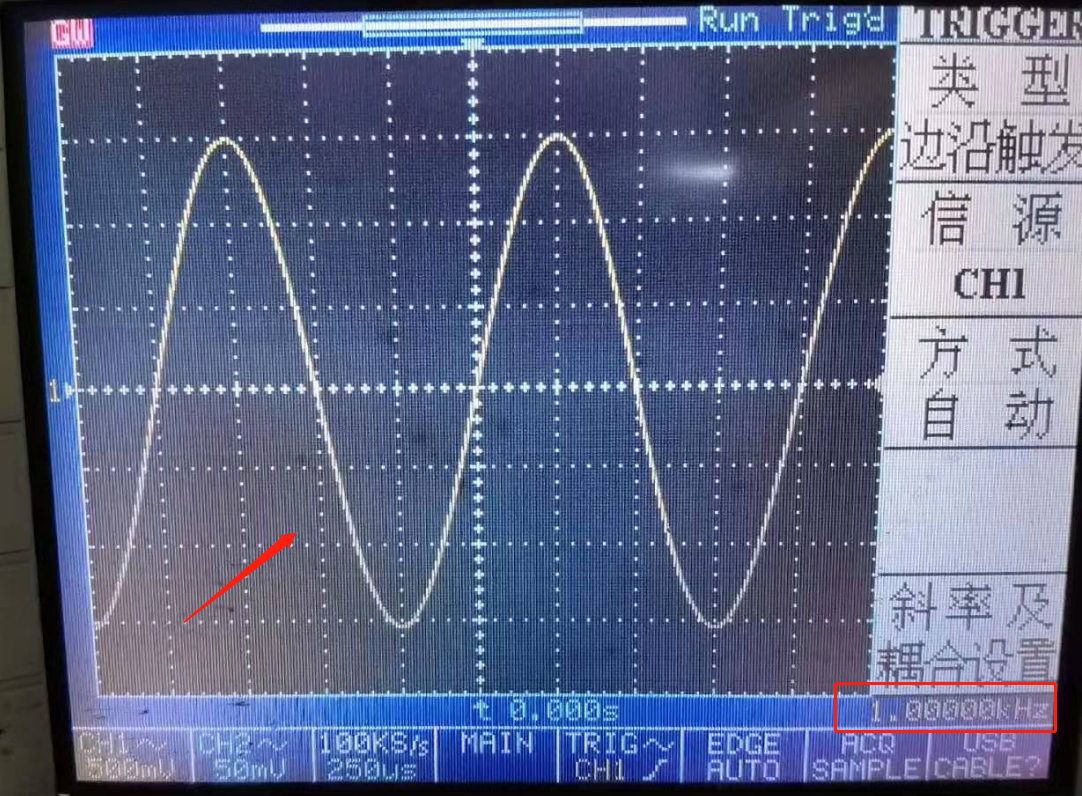

•Pink noise or sine wave 1000 Hz (not at the same time)Pink Noise Generator for Audio Testing.docx
IEC 62368-1 Annex E Pink Noise Generator,Meets The Requirements For Pink Noise In IEC 60065 Clause 4.2 And 4.3

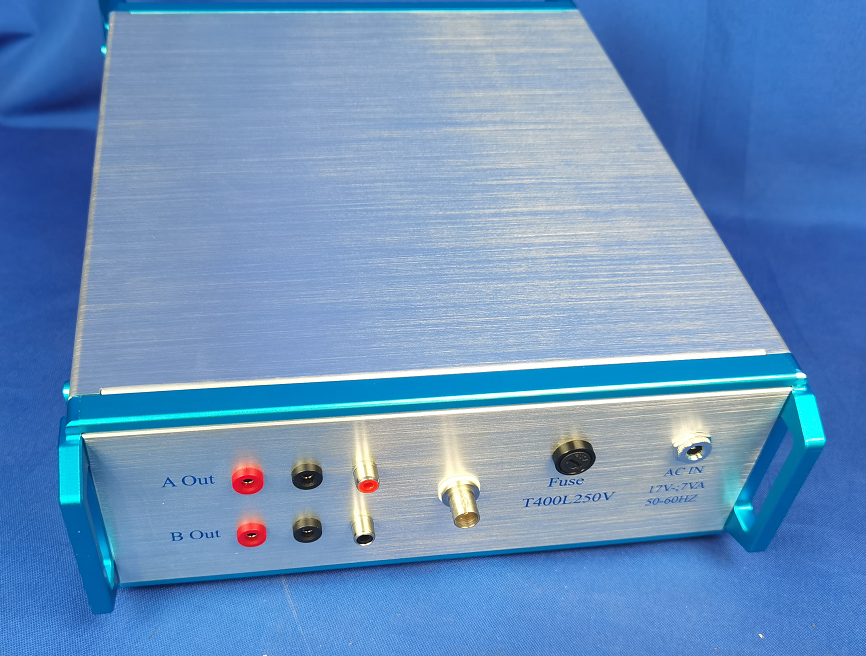

•Two output channels when testing
•The channels can be phase shifted to 0° or 90°
•Fine adjustments of output voltage
•RCA and 4 mm banana type output connectors
•Audio-cables for test object included (RCA and 3,5 mm phono)
•Output signal according to IEC 60065 Annex C, fig. C1 (IEC60268)
•Amplitudes of sine wave and pink noise according to table below:
Output Voltage Sine wave 1 kHz Filtered pink noise
Low: 0-100 mV/1 kohm 0-35 mV rms/1 kohm
Medium: 0-1 V/1 kohm 0-350 mV rms/1 kohm
High: 0-5 V/1 kohm 0-1,7 V rms/1 kohm

IEC 62368-1 Annex E Pink Noise Generator,Meets The Requirements For Pink Noise In IEC 60065 Clause 4.2 And 4.3
IEC 62368-1 Annex E Pink Noise Generator,Meets The Requirements For Pink Noise In IEC 60065 Clause 4.2 And 4.3
IEC 62368-1 Annex E Pink Noise Generator,Meets The Requirements For Pink Noise In IEC 60065 Clause 4.2 And 4.3
IEC 62368-1 Annex E Pink Noise Generator,Meets The Requirements For Pink Noise In IEC 60065 Clause 4.2 And 4.3
