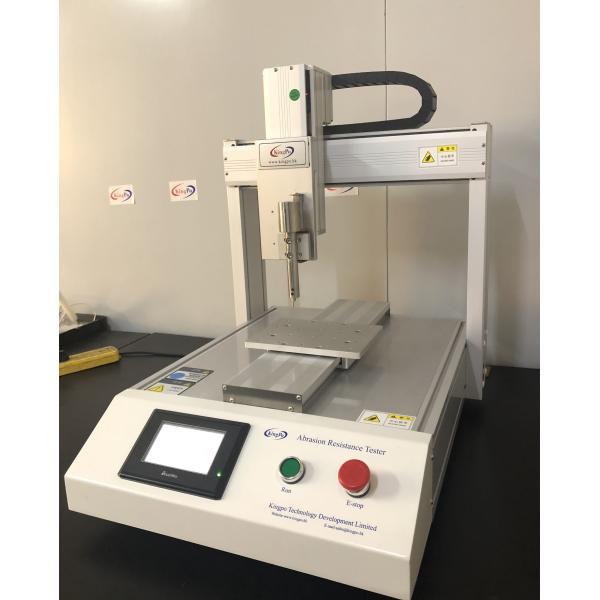

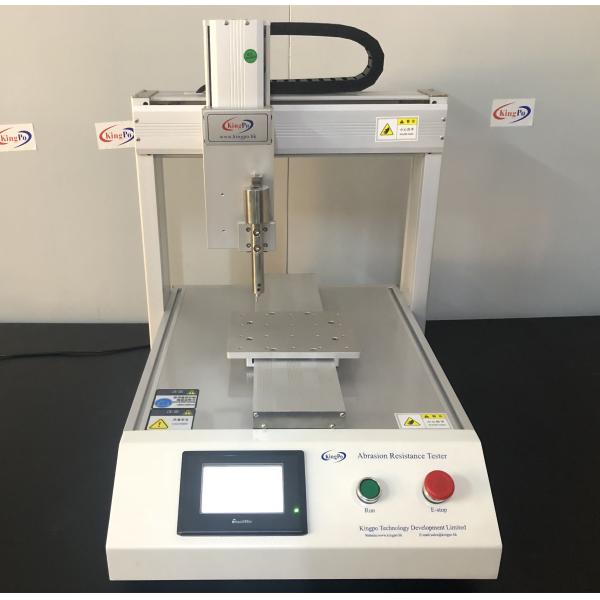

IEC 60950-1 clause 2.10.8.4 Automatic Abrasion Resistance Tester / Printed Circuit Abrasion Strength Device
IEC 60950-1 clause 2.10.8.4 Automatic Abrasion Resistance Tester / Printed Circuit Abrasion Strength Device
IEC 60950-1 clause 2.10.8.4 Automatic Abrasion Resistance Tester / Printed Circuit Abrasion Strength Device
IEC 60950-1 clause 2.10.8.4 Automatic Abrasion Resistance Tester / Printed Circuit Abrasion Strength Device
IEC 60950-1 clause 2.10.8.4 Automatic Abrasion Resistance Tester / Printed Circuit Abrasion Strength Device
IEC 60950-1 clause 2.10.8.4 Automatic Abrasion Resistance Tester / Printed Circuit Abrasion Strength Device
IEC 60950-1 clause 2.10.8.4 Automatic Abrasion Resistance Tester / Printed Circuit Abrasion Strength Device
IEC 60950-1 clause 2.10.8.4 Automatic Abrasion Resistance Tester / Printed Circuit Abrasion Strength Device
Specifications
Brand Name :
KingPo
Model Number :
KP-AR25
Certification :
Calibration certificate
Place of Origin :
China
MOQ :
1
Price :
To be Quoted
Payment Terms :
T/T
Supply Ability :
25 per month
Delivery Time :
25
Packaging Details :
satety plastic tool box or plywood package.
Power Supply :
220V 50Hz or 115V 60Hz
Tip Angle of Steel Pin :
40°
Radius of Steel Pin :
0.25 mm ± 0.02 mm
Scratch Speed :
20 mm/s ± 5 mm/s
Force :
10 N ± 0.5 N
Scratch Angle :
80-85°
Description

IEC 60950-1 clause 2.10.8.4 Automatic Abrasion Resistance Tester / Printed Circuit Abrasion Strength Device

Application:

The device is used to check abrasion strength of printed circuit boards scratches are made across five pairs of conducting parts and the intervening separations at points where the separations will be subject to the maximum potential gradient during the tests.

Technical Parameters:

1. As per clause 2.10.8.4 of IEC 60950-1/IS 13252-1
1. The scratches are made by means of a hardened steel pin,
2. The end of which has the form of a cone having a tip angle of 40°
3. its tip being rounded and polished, with a radius of 0,25 mm ± 0,02 mm.
2. Scratches speed: 20 mm/s ± 5 mm/s as shown in Figure 2K.
3. Scratches Pressure: 10 N ± 0,5 N.
The scratches pitch: shall be at least 5 mm apart and at least 5 mm from the edge of the speciment

Packing Details:

Weight(Kg):64

Size(mm):730*600*870
