IEC62368 Three Vertical Bar Signal RDL-100 video signal generator
1 Overview
1.1 Product Profile
The product is used for the testing of digital TV, providing a test signal for television test experiments.The product can produce the video test signals for the CVBS, YPbPr and HDMI interfaces to meet the requirements of the TV test.
1.2 Application field:
1. TV safety test experiment;
2. TV electromagnetic compatibility test experiment;
3. Other related test experiments of TV sets;
1.3 Functional Features:
(1) It includes three interface types: CVBS, YPbPr and HDMI;
(2) Support for PAL and NTSC calibration and clearing video format;
(3) Support for 1280720p 50Hz, 1280720p 60Hz, 19201080i 50Hz, 19201080i 60Hz, 19201080p 25Hz, 19201080p 30Hz, 19201080p 50Hz, 19201080p 60Hz HD video formats;
(4) Support for ultra-HD (4K) video format of 3840 2160 25p and 3840 2160 30p;

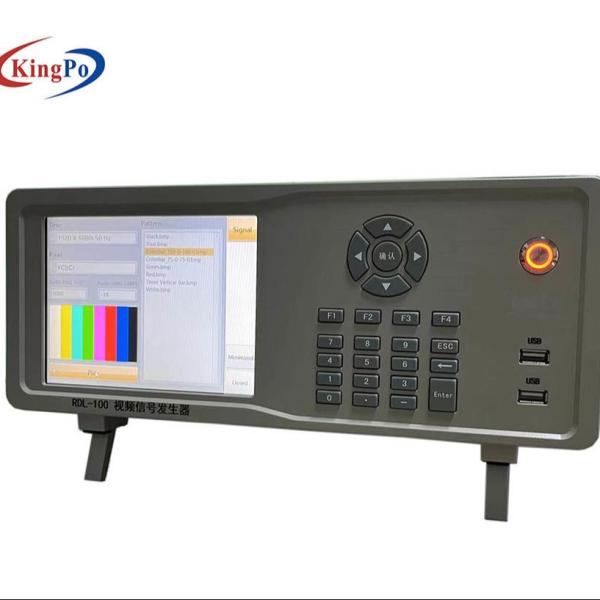

2 Front panel description
1System display
Display the system control software interface, with a touch screen function, for setting the selection of the system signal, the video format, and the setting of the digital TV modulation signal parameters.
2key
It is composed of navigation keys (up and down, etc.), digital keyboard and function keys to facilitate users to operate and control the software.
4USB joggle
Easy for users to connect to the mouse, keyboard, U disk and other external devices.
5power key
The control system switches and switches.
3 Rear panel description
1The Y / CVBS, Pb, and Pr interfaces
The output interface of analog TV composite signal and chromatic component signal, where Y / CVBS interface outputs composite signal (CVBS) when the signal formats are PAL and NTSC, and the luminance signal in chromatic signal (Y) in other formats.
2L, R joggle
Audio output interfaces, L and R represent the left and right channels, respectively.
3HDMI joggle
Digital video signal output interface.
4.System peripherals interface
Easy for users to connect to the monitor, mouse, keyboard, U disk and other external devices.
5.System power supply interface and switch
Connect and control the system power supply.
4. Technical indicators
interface type
project
scope
metric
CVBS
intensity level
(0~700)mV
±(2%X+6mV)
Color level
(0~885.1)mV
±(2%X+6mV)
chrominance phase
(0~360)°
±2°
YPbPr
Brightness signal output level (Y)
(0~700)mV
±(2%X+6mV)
Chromatic difference signal output level (Pb, Pr)
(-350~350)mV
±(2%X+6mV)
