Specifications
Brand Name :
BEFANBY
Model Number :
AGV battery
Certification :
CE,SGS,ISO9001
Place of Origin :
Henan,China
MOQ :
1 set/sets
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1500 set/sets, per year
Delivery Time :
40-50 days as usual delivery,30-40days for urgent delivery
Packaging Details :
The Automatic Guided Mover AGV will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Power :
battery powered
Warranty :
24 months
Load capacity :
1-1500 Ton
Application :
workshop, production line,factory
Running ways :
on rails
Power supply :
Lithium battery power, Optional Power Supply
Characteristic :
automatic
Description

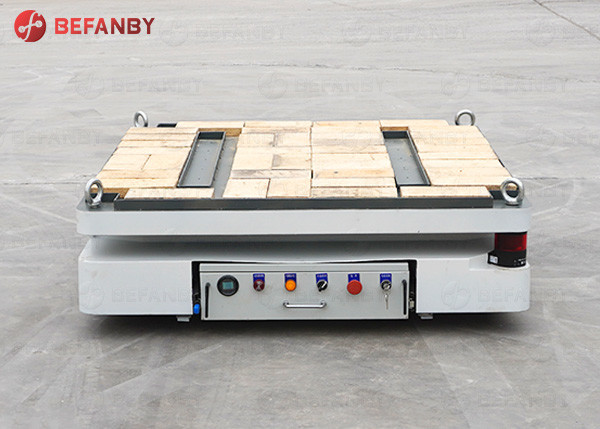

Warehouse Intelligent AGV Omnidirectional Electric Mover

Product Description Of Warehouse Intelligent AGV Omnidirectional Electric Mover

AGV is an intelligent transportation mover that moves in all directions. It can flexibly transport items within the warehouse and has powerful navigation functions. From the perspectives of safety and efficiency, AGV intelligent mover can bring many benefits to enterprises.


Firstly, the AGV intelligent mover does not require manual driving, which will reduce the potential risk of accidents and also reduce the workload of employees. Especially in warehouses with complex environments and winding production lines, safety becomes even more crucial.


Secondly, AGV intelligent mover have flexibility. It adopts modern navigation and control technology, which can automatically transport items according to user needs. This means that as long as the goods in the warehouse are placed according to the planned path, the AGV intelligent mover can automatically complete the transportation work, greatly saving time and costs.
Finally, AGV intelligent vehicles can be integrated into the enterprise's AI system for more intelligent control, thereby further improving the level of intelligence. In the future, this technology will play an important role in the warehousing and logistics industry and promote enterprises to improve transportation efficiency.


In the warehousing and logistics industry, traditional transportation tools of the past will be replaced by more intelligent and efficient AGV intelligent mover. New intelligent solutions are driving industry evolution, bringing faster and safer modes of transportation.

Application Of Warehouse Intelligent AGV Omnidirectional Electric Mover

Parts Details


Product Parameter

Model AGV-2T AGV-5T AGV-10T AGV-20T AGV-30T AGV-40T AGV-50T
Rated load(t) 2 5 10 20 30 40 50
Table Size Length(mm) 2000 2500 3000 3500 4000 5000 5500
Widthmm) 1500 2000 2000 2200 2200 2200 2500
Heigth(mm) 450 550 600 800 1000 1200 1300
Wheel Base(mm) 1080 1650 1650 1650 1650 2000 2000
Wheel Dia.(mm) Φ200 Φ280 Φ350 Φ410 Φ500 Φ500 Φ550
Battery Voltage(V) 48 48 48 72 72 72 72
Weel Quantity(pcs) 4 4 4 4 4 4 4
Ground Clearance(mm) 50 50 50 50 50 50 50
Max Wheel load(KN) 14.4 25.8 42.6 77.7 110.4 142.8 174
Reference Wight(t) 2.3 3.6 4.2 5.9 6.8 7.6 8

Running Route

Product Feature

Company Profile

Related Products

Tag: Rail Transfer Trolley., Custom Factory Transfer Trolley
