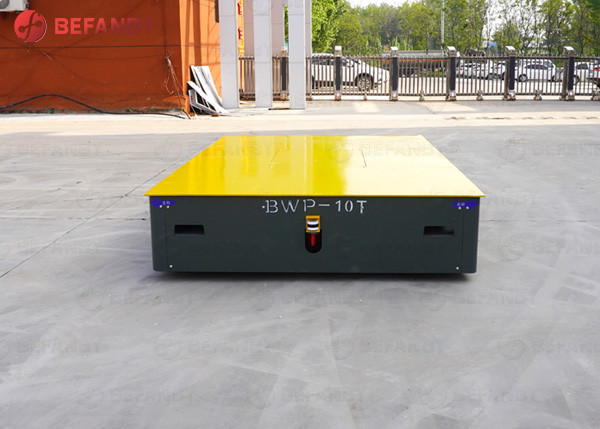

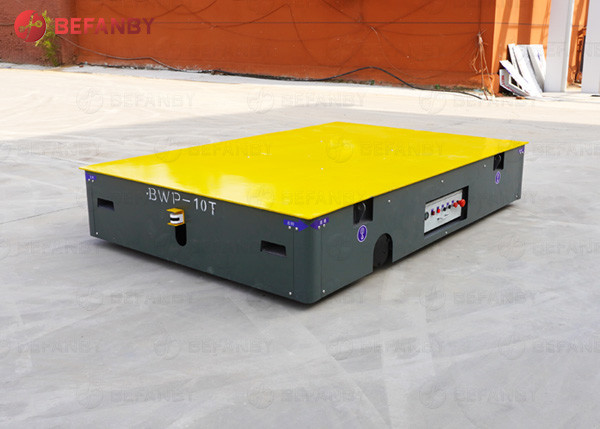

No Rail Steerable Electric Warehouse Transport Trolley
No Rail Steerable Electric Warehouse Transport Trolley
No Rail Steerable Electric Warehouse Transport Trolley
No Rail Steerable Electric Warehouse Transport Trolley
No Rail Steerable Electric Warehouse Transport Trolley
No Rail Steerable Electric Warehouse Transport Trolley
No Rail Steerable Electric Warehouse Transport Trolley
No Rail Steerable Electric Warehouse Transport Trolley
Specifications
Brand Name :
BEFANBY
Model Number :
BWP
Certification :
CE,SGS,ISO9001
Place of Origin :
Henan,China
MOQ :
1 set/sets
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1500 set/sets, per year
Delivery Time :
30-40 days as usual delivery,20-30days for urgent delivery
Packaging Details :
The trackless transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Color :
Customized
Warranty :
24 months
Load capacity :
1-1500T for trackless transfer cart
Power supply :
Battery Operated
Port :
Qingdao/Tianjin/Shanghai
Application :
Heavy industry, pipe transport
Materials :
Steel
Description

No Rail Steerable Electric Warehouse Transport Trolley

Product Description

Trackless electric flat cart is a flexible material handling tool, can be operated by remote control, the operation button is simple and clear. Electric transfer cart uses PU wheel, which are more suitable for driving directly on the ground. The steerable cart is powered by battery, and the flat cart can move forward, backward, turn and rotate in all directions.

The electrical steerable cart is equipped with laser sensors that scan surrounding obstacles and stop immediately when confronted by workers.

The load and size of the flat cart can be customized, and we have a professional design team, which can design different schemes according to the customer's working environment and transportation materials.

Application

Product Details

Product Parameter

Model BWP-2T BWP-5T BWP-10T BWP-15T BWP-20T BWP-25T BWP-30T BWP-40T BWP-50T BWP-60T BWP-70T BWP-80T BWP-100
Rated load(t) 2 5 10 15 20 25 30 40 50 60 70 80 100
Table Size Length(L) 2000 2200 2300 2400 2400 3500 3500 5000 5500 5600 6000 6500 6600
Width(W) 1500 2000 2000 2100 2200 2200 2200 2500 2600 2500 2600 2800 3000
Heigth(H) 450 500 550 600 600 700 700 800 800 850 900 950 1200
Wheel Base(mm) 1080 1650 1650 1600 1650 1650 1650 2000 2000 1800 1850 1950 2000
Axle Base(mm) 1380 1680 1700 1830 1850 2700 2700 3600 2850 2900 3500 3500 4000
Wheel Dia.(mm) Φ250 Φ300 Φ350 Φ400 Φ400 Φ450 Φ450 Φ500 Φ600 Φ600 Φ600 Φ600 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4 6 6 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed(mm) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-18
Motor Power(kw) 2*1.2 2*1.5 2*2.2 2*3.5 2*4.5 2*5.5 2*5.5 2*6.3 2*7.5 2*10 2*12 30 40
Batter Capacity(Ah) 250 180 250 330 400 400 450 440 500 600 600 800 1000
Battery Voltage(V) 24 48 48 48 48 48 48 72 72 72 72 72 72
Running Time When Full Load 2.5 2.88 2.8 2.3 2.2 1.8 2 2.6 2.5 2.2 1.8 2 1.9
Running Distance for One Charge(Km) 3 3.5 3.4 2.8 2.7 2.2 2.4 3.2 3 2.7 2.2 2.4 2.3
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 152 185 190
Reference Wight(t) 2.3 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8
