Mill Coating Factory Battery Electric Transport Trolley
Mill Coating Factory Battery Electric Transport Trolley
Mill Coating Factory Battery Electric Transport Trolley
Mill Coating Factory Battery Electric Transport Trolley
Mill Coating Factory Battery Electric Transport Trolley
Mill Coating Factory Battery Electric Transport Trolley
Mill Coating Factory Battery Electric Transport Trolley
Mill Coating Factory Battery Electric Transport Trolley
Mill Coating Factory Battery Electric Transport Trolley
Mill Coating Factory Battery Electric Transport Trolley
Specifications
Brand Name :
BEFANBY
Model Number :
KPX
Certification :
CE,SGS,ISO9001
Place of Origin :
Henan,China
MOQ :
1 set/sets
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1500 set/sets, per year
Delivery Time :
40-50 days as usual delivery,30-40days for urgent delivery
Packaging Details :
The electric transport trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Color :
Customized
Function :
Lifting system customization
Application :
Workshop, Warehouse, Production Line
Running speed :
0-20m/min
Load capacity :
1-1500 Ton Payload
Power supply :
Battery Powered
Product Name :
Mill coating factory battery electric transport trolley
Description

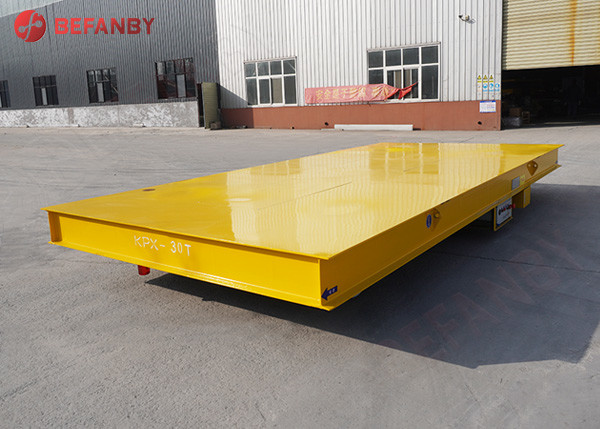

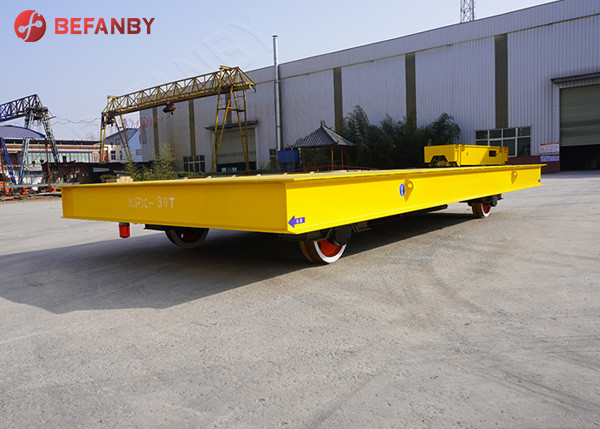

Mill Coating Factory Battery Electric Transport Trolley

The mill coating factory battery electric transport trolley is battery powered. The electric transfer trolley is composed of frame, transmission device, driving wheel group, driven wheel group, buffer device, maintenance-free battery, electrical equipment and safety protection device. The battery control the DC motor through electrical control system and operate the carts. The transfer carts can turn on demand and running distance is unlimited. The carts can be used in explosion-proof environment.

The battery transfer cart is really easy to transport, and safely in operation, also has no faults such as rail jamming and derailment. The lubrication points are well sealed, and there is no oil dripping, oil leakage and other faults. The running speed is uniform, there is no sudden increase or decrease, and the running speed is adjustable.The transfer cart can be used in S-shaped track, curved track and high temperature occasions. And this cart can be customized according to customer's requirements.Applicable occasions are workshops, open-air warehouses, port terminals,new energy, intelligent manufacturing, metallurgy, coal, shipbuilding, heavy industry, light industry, etc.

Technique Parameter of transfer cart

Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8

All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
