75t Steel Plate Transfer Electric Rail Flatbed Cart
75t Steel Plate Transfer Electric Rail Flatbed Cart
75t Steel Plate Transfer Electric Rail Flatbed Cart
75t Steel Plate Transfer Electric Rail Flatbed Cart
75t Steel Plate Transfer Electric Rail Flatbed Cart
75t Steel Plate Transfer Electric Rail Flatbed Cart
75t Steel Plate Transfer Electric Rail Flatbed Cart
75t Steel Plate Transfer Electric Rail Flatbed Cart
Specifications
Brand Name :
BEFANBY
Model Number :
KPJ-75T
Certification :
CE,SGS,ISO9001
Place of Origin :
Xinxiang
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
30% deposit by T/T in advance, 70%balance by T/T before dispatch
Supply Ability :
1500 sets one year
Delivery Time :
30-40 days as usual delivery,20-30days for urgent delivery
Packaging Details :
Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Shipment port :
Qingdao, Tianjin, Shanghai
Application :
factory transport
Load capacity :
1-1500t
Car size :
Customized
Exported countries :
Singapore, Australia, South Africa, Mexico
Electrical parts :
Siemens, Schneider, Nord
Safety devices :
Warning lamp, siren, bumper
Power Supply :
Cable
Description

75t Steel Plate Transfer Electric Rail Flatbed Cart

About Our Product

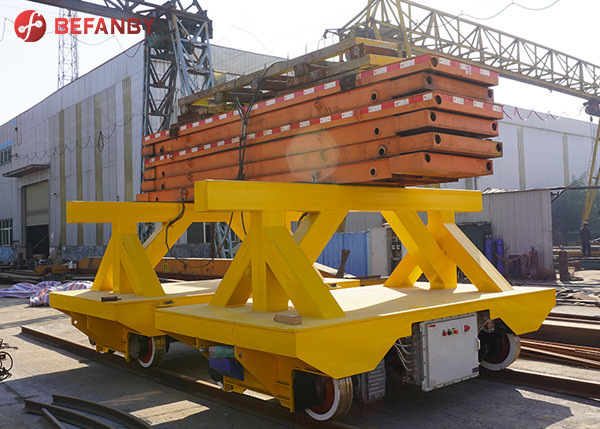

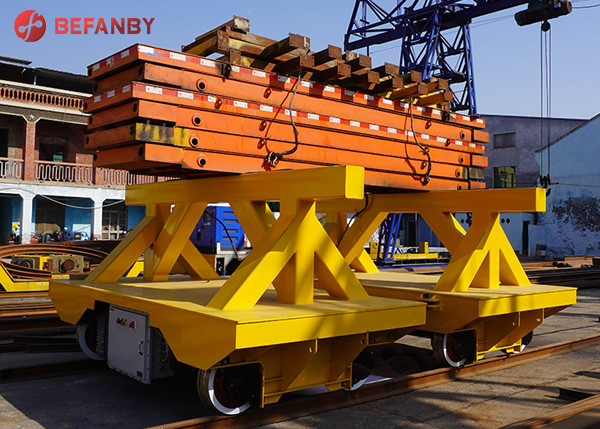

A support frame is installed on the 75t steel plate transfer electric rail flatbed cart, and two electric rail flatbed trolley run at the same time in front of one after another on the track. The two support frames can place goods smoothly. The traction device is also installed beside the transfer cart, which can be used to pull another flat car to run at the same time.

Electric transfer cart is installed with cast steel wheels, strong bearing capacity, not easy to rust deformation, but need to install track on the ground, if running directly on the ground will cause damage to the ground.

The design of this car is customized according to the transportation requirements of customers and the workplace. Different bearing capacity, table size, working environment, transportation equipment will have different design schemes. We will provide customers with the most suitable solution.

Main Parts

Advantages

Application

Technical Parameter

Model KPJ-2T KPJ-5T KPJ-10T KPJ-16T KPJ-20T KPJ-25T KPJ-30T KPJ-40T KPJ-50T KPJ-63T KPJ-80T KPJ-100T KPX-150
Rated load(t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Heigth(H) 500 550 550 600 600 650 650 700 700 800 900 1000 1200
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rai Ilnner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Dia.(mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600 Φ600 Φ600 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed(mm) 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power(kw) 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Running distance(m) 25 25 25 25 30 30 50 50 50 50 50 50 50
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Wight(t) 2.5 3.5 4 5.2 5.6 6.2 6.5 7.3 7.8 10.5 12.3 14.1 26.2
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100
