50t large capacity rail transfer carriage for assembly line
50t large capacity rail transfer carriage for assembly line
50t large capacity rail transfer carriage for assembly line
50t large capacity rail transfer carriage for assembly line
50t large capacity rail transfer carriage for assembly line
50t large capacity rail transfer carriage for assembly line
50t large capacity rail transfer carriage for assembly line
50t large capacity rail transfer carriage for assembly line
Specifications
Brand Name :
BEFANBY
Model Number :
KPC-50T
Certification :
CE,SGS,ISO9001
Place of Origin :
Xinxiang
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
30% deposit by T/T in advance, 70%balance by T/T before dispatch
Supply Ability :
600 sets one year
Delivery Time :
50-60 days as usual delivery,40-50days for urgent delivery
Packaging Details :
Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Shipment port :
Qingdao/Tianjin/Shangai
Power supply mode :
Busbar power
Application :
Heavy industry
Car size :
Can be customised
Load capacity :
Up to 300 ton
Electrical Parts :
Siemens, Schneider, Nord
Saftey devices :
Warning lamp, siren, bumper
Exported countries :
South Africa, Australia, Syria
Product name :
50t large capacity rail transfer carriage for assembly line
Wheel diameter(mm) :
400
Rail gauge(mm) :
1435
Wheel quantity :
4 pcs
Contact :
marketing@bfbhandling.com
Description
50t large capacity rail transfer carriage for assembly line
Working of rail transfer carriage

Rail transfer carriage is very popular with the customers for assembly line. This kind of rail transfer carriage is power by busbar(electric sliding line). It gets power from sliding line durning the cart running. The electric control system of the cart realize it start, stop, go forward and backward. It is suitable to applied in production line or assembly line, to transfer heavy material or parts, the distance is better to less than 50m.


Advantages of rail transfer carriage
  • Box girder structure, not easy to deform
  • simple structure, low cost
  • no strict requires on rails
  • can be applied high using frequency condition
  • can be used in high-temperature environment
  • can be used in explosion-proof environment
Main Parts of rail transfer carriage


Production of rail transfer carriage

Technical parameters of rail transfer carriage
Model
KPC-2TKPC-10TKPC-20TKPC-30TKPC-50TKPC-63TKPC-150T
Rated load (T)21020305063150
Table sizelength(L)20003600400045005500560010000
Width(W)1500200022002200250025003000
Height(H)4505005506006507001200
Wheel Base (mm)1200260028003200420043007000
Rail Inner Gauge (mm)1200143514351435143514352000
Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
Wheel Quantity4444448
Ground Clearance (mm)50505050507575
Running speed (min)0-250-250-200-200-200-200-18
Motor Power (Kw)11.62.23.556.315
Battery Capacity(Ah)180160180250330400600
Battery Voltage(V)24484848484872
Running Time When Full Load4.324.843.53.332.9
Running Distance for one Charge(Km)6.57.24.84.243.63.2
Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
Reference Weight (t)2.84.25.96.8810.826.8
Recommended Rail ModelP15P18P24P38P43P50QU100

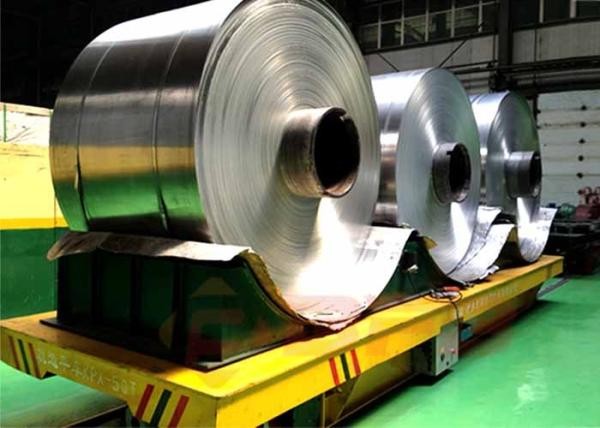

Application of rail transfer carriage
Delivery of rail transfer carriage

Customer visit in our factory
