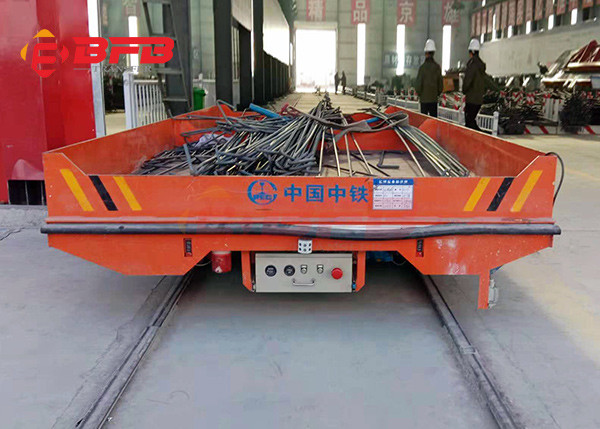

20t Battery Power Electric Rail Transfer Car For Metal Industry Handling
20t Battery Power Electric Rail Transfer Car For Metal Industry Handling
20t Battery Power Electric Rail Transfer Car For Metal Industry Handling
20t Battery Power Electric Rail Transfer Car For Metal Industry Handling
20t Battery Power Electric Rail Transfer Car For Metal Industry Handling
20t Battery Power Electric Rail Transfer Car For Metal Industry Handling
20t Battery Power Electric Rail Transfer Car For Metal Industry Handling
20t Battery Power Electric Rail Transfer Car For Metal Industry Handling
20t Battery Power Electric Rail Transfer Car For Metal Industry Handling
20t Battery Power Electric Rail Transfer Car For Metal Industry Handling
20t Battery Power Electric Rail Transfer Car For Metal Industry Handling
20t Battery Power Electric Rail Transfer Car For Metal Industry Handling
Specifications
Place of Origin :
Xinxiang
Brand Name :
BEFANBY
Model Number :
KPX-20T
Price :
Negotiation
Packaging Details :
Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Delivery Time :
40-50 days as usual delivery,30-40days for urgent delivery
Supply Ability :
60 sets per month
Certification :
CE,SGS,ISO9001
MOQ :
1 set
Product name :
20t battery power electric rail transfer car for metal industry handling
Capacity(t) :
20t, customized 1-500t
Table size(mm) :
4000*2200*600
Running speed(m/min) :
0-25
Running distance(m) :
100
Rail type :
P24
Wheel pressure(KN) :
77.7
Rail gauge(mm) :
1435
Wheel diameter(mm) :
300
Wheel quantity(pcs) :
4
Weight(t) :
5.9
Certificate :
CE, SGS, ISO9001, SASO
Package :
The whole cart is packed by high quality plastic cloth
Color :
Red, Yellow, Blue
Description
20t battery power electric rail transfer car for metal industry handling

BEFANBY designed and manufactured the battery power rail transfer car and provide innovative handling solution with more than 16 years'experience.the railroad cart can be used in industry plant, port, workshop, production line and so on to transport ladle, coil, mold, steel products, workpiece and so on.All the solution are designed as per customers true demand.

The battery powered rail transfer car is a good choice if meeting the following features:


1.The running distance is not limited for the battery powered rail transfer cart

2.Low using frequency(The spare battery can be provided if higher using frequency)

3.Despite of turning or going straight, the rail transfer cart can realize

4.Despite of running on indoor or outdoor, high temperarture or explosive environment, ferry or cross rail, the transfer car can realize.

5.Dimensions,capacity, loading platform superstructure, speed and many others special funcition can be customized as per client request Heavy

Character Showing of 20t battery power electric rail transfer car for metal industry handling

1. High level automation(self propelled/steerable)
2. The largest capacity can reach to 500t
3. Safe parts are installed in the transfer car(warning light, e-stop, buffer...)
4. Robust sturdy car frame
5. AC/DC electric engine , diesel engine or pneumatic engine
6. Excellent gear reducer and motor with high quality, assemblied together perfectly
7. Remote control&hand pendant control make the opration more convenient.
8. The speed can be adjusted
9. Easy operation and maintenance
10. Famous brand parts, guarantee the quality and prolong the using lifetime
11. Low noise and do not pollute the environment

Working Principle of 20t battery power electric rail transfer car for metal industry handling
The electric transfer car is battery powered . The battery is installed in the cars. The batteries supplied the electricity to the DC motor through the electrical control system. By this ways, we can make the transfer car to start, stop, go forward , back ward , adjust the speed and so on.
Technique Parameter of 20t battery power electric rail transfer car for metal industry handling

Model KPX-2t KPX-5t KPX-10t KPX-16t KPX-20t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 2 5 10 16 20 25 30 40 50 63 80 100 150
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 500 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 270 300 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power 1 1.2 2 2.2 3 3.5 4 5 6.3 8 10 15 15
Battery Capacity 180 180 160 180 180 250 250 300 330 400 400 440 600
Battery Voltage 24 36 48 48 48 48 48 48 48 48 72 72 72
Running Time When Full Load 4.32 5.4 4.8 4.3 4 4 3.5 3.6 3.3 3 3.6 3.2 2.9
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100
Processing of 20t battery power electric rail transfer car for metal industry handling

Packing& Delivery of 20t battery power electric rail transfer car for metal industry handling

Our Company----BEFANBY
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.

You can copy the following options and click here to select your specific requirement for the transfer car to send us. And then the proper solution and price will be sent to you.

1. The load capacity of the transfer cart is ( ) ton.

2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).

3. The voltage is ( ) V, ( ) HZ, 3 phase.

4. The running time is ( ) hours per day.

5. The running distance is ( ) m per time.

6. The transfer cart runs on the rails or common floor?

7. Whether exist turning?

8. Whether has other special requirement?
