10tons Flexible Heavy Duty Quad Steer Carts , Free Maintenance Material Handling Trolley
10tons Flexible Heavy Duty Quad Steer Carts , Free Maintenance Material Handling Trolley
10tons Flexible Heavy Duty Quad Steer Carts , Free Maintenance Material Handling Trolley
10tons Flexible Heavy Duty Quad Steer Carts , Free Maintenance Material Handling Trolley
10tons Flexible Heavy Duty Quad Steer Carts , Free Maintenance Material Handling Trolley
10tons Flexible Heavy Duty Quad Steer Carts , Free Maintenance Material Handling Trolley
10tons Flexible Heavy Duty Quad Steer Carts , Free Maintenance Material Handling Trolley
10tons Flexible Heavy Duty Quad Steer Carts , Free Maintenance Material Handling Trolley
10tons Flexible Heavy Duty Quad Steer Carts , Free Maintenance Material Handling Trolley
10tons Flexible Heavy Duty Quad Steer Carts , Free Maintenance Material Handling Trolley
10tons Flexible Heavy Duty Quad Steer Carts , Free Maintenance Material Handling Trolley
10tons Flexible Heavy Duty Quad Steer Carts , Free Maintenance Material Handling Trolley
Specifications
Brand Name :
BEFANBY
Model Number :
KPX
Certification :
CE,SGS,ISO9001
Place of Origin :
Henan,China
MOQ :
1 set/sets
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 set/sets, per year
Delivery Time :
40-50 days as usual delivery,30-40days for urgent delivery
Packaging Details :
The tranfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Material :
Q235
Color :
Customized
Application :
Industrial field
Running speed :
0-20m/min
Running distance :
Unlimited
Warranty :
24 months
Port :
Qingdao/Tianjin/Shanghai
Load capacity :
1-1000Tons
Operation type :
Hand pendant + remote control
Power supply :
Battery Powered
Advantage :
More than 16 years' experience for material handling equipment reaserch
Description
10tons Flexible Heavy Duty Quad Steer Carts , Free Maintenance Material Handling Trolley

10tons Flexible Heavy Duty Quad Steer Carts , Free Maintenance Material Handling Trolley---- it is powered by storage battery, it is our specialized research, Simply speaking, it is an electric cart runnng on the rails. Compaired with KPD low voltyage power, It has no limited distance; and the rail is common type. Compaired with other power, it is simple operation and structure, and the transfer trolley can realize running on the rails.About this type transfer cart, it is popular in many foreign countries like Australia, Mexico, UAE, Malaysia etc.Our company have professional team and utilize more advanced technique to make the transfer cart.

All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.

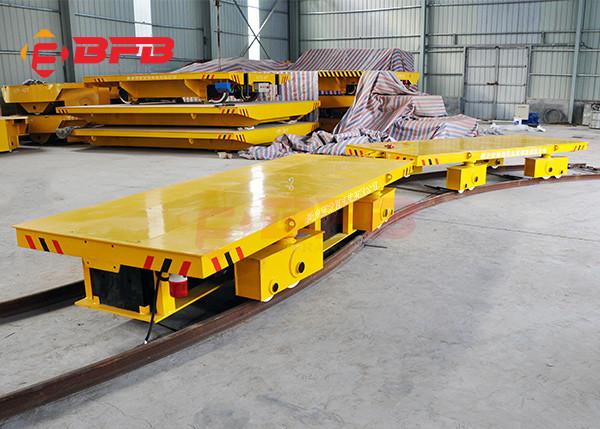

Detailed Images of Flexible Heavy Duty Quad Steer Carts , Free Maintenance Material Handling Trolley

Technique Parameter
Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8

NOTES:

1. Flat deck or fixtures for transporting special payload;


2. Custom deck configurations may include lift, tilt, or rotate function;


3. Payload from 1 ton to 500 tons;


4. Fixed speed or variable speed capabilities;


5. On board charging is available if battery drives;


6. With forward or backing driving, turning drive;

7.Options for automatic control;


8. Available safety equipment includes horn, lights, emergency stop, bumpers and detector.

Our Company

Production Supply Scope
Product Name Model No. Power Supply Mode Load Capacity Other Items Usage
Rail Transfer Cart KPD Conductor Rail Load range 1-300ton, can be customized per client demand Running distance Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car KPX Battery Using frequency
Motorized Transfer Trolley KPJ Cable Drum Running distance
Busbar Powered Handling Cart KPC Busbar Working shop
Towed Rail Trailer KP Tractor 1-100t Working shop
Steerable Towed Car BWT Tractor Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. Working environment
Trackless Handling Machine BWP Battery Working path
BEFANBY Service
  • The load bearing safety factor of the electric 25 ton transfer cart is no less than 125%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our electric 25 ton transfer cart can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
