Specifications
Brand Name :
BEFANBY
Model Number :
KPX
Certification :
CE,SGS,ISO9001
Place of Origin :
Henan,China
MOQ :
1 set/sets
Price :
$4000-$6000/ per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 set/sets, per year
Delivery Time :
40-50 days as usual delivery,30-40days for urgent delivery
Packaging Details :
The transfer cars will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Product name :
CE bulk material handling equipment battery powered transfer cars on rails
Color :
Customized
Application :
Industrial field
Running speed :
0-20m/min
Running distance :
Unlimited
Warranty :
12 months
Port :
Qingdao/Tianjin/Shanghai
Load capacity :
1-500T
Operation type :
Hand pendant + remoete control
Power supply :
Battery powered
Description

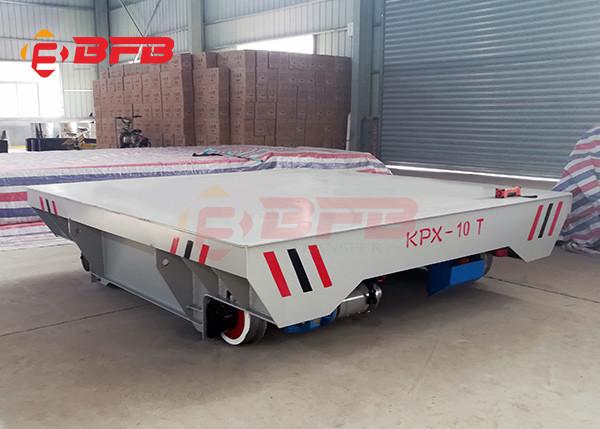

CE bulk material handling equipment battery powered transfer cars on rails
1. The Introduction of CE bulk material handling equipment battery powered transfer cars on rails
The CE bulk material handling equipment battery powered transfer cars on rails is our most popular cars. It is used to move dies,coils or materials between the pressroom and the die storage and maintenance area. This CE bulk material handling equipment battery powered transfer cars on rails has the advantage of moving the entire length of the manufacturing facility, where dies that are moved by cranes are limited to the distance of the crane travel, or must be transferred from crane bay to crane bay. Our standard htransfer cars is controlled by a hand held push button controller and wireless control with small turning radius.

2. The feature of CE bulk material handling equipment battery powered transfer cars on rails

1) The main source powered of the electric flat cart is battery, so it has the limitation of time.

2) The maintenance-free battery is optional as your required; and if the size of the cars is small, the lithium battery can be chosen.

3) If you want extend working hours, you can keep a stand-by battery;


3. The Application of CE bulk material handling equipment battery powered transfer cars on rails

BEFANBY manufactured the CE bulk material handling equipment battery powered transfer cars on rails not only can transport all kinds of coils, die mold in steel mill, it is also can be widely applied in Metallurgy, Machinery Fabrication, Auto makers, Heavy Industrial, Light Industrial, Mould Maker, Construction Machinery maker, Shipyard, Port Cargo Yard, Steel Transfer, Mining Transfer, Air and Space as well as Military industries and so on to transfer and handling equipment or material from workshop to workshop or from bay to warehouse.

4. The Technique Parameter of CE bulk material handling equipment battery powered transfer cars on rails
Model KPX-2t KPX-5t KPX-10t KPX-16t KPX-20t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 2 5 10 16 20 25 30 40 50 63 80 100 150
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 500 500 550 550 600 600 650 650 700 800 900 1200
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 270 300 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power 1 1.2 2 2.2 3 3.5 4 5 6.3 8 10 15 15
Battery Capacity 180 180 160 180 180 250 250 300 330 400 400 440 600
Battery Voltage 24 36 48 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100

5. The Shipping Solution of CE bulk material handling equipment battery powered transfer cars on rails

A. BEFANBY CE bulk material handling equipment battery powered transfer cars on rails have been exported to many countries such as US, Canada, Thailand, Netherlands, South Africa, UAE, Turkey, Saudi Arabia etc.

B. The CE bulk material handling equipment battery powered transfer cars on rails is packed with tarp, and the wheel , rails and parts of the CE bulk material handling equipment battery powered transfer cars on rails will be packed by the high quality wooden case.

C. According the table size and quantity, the industrial material handling robust railcar would be transported to clients by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.
6. BEFANBY Company

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And 50 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
Our Workshop Equipment

Our Sales Performance for half years

Tag: Railway Transfer Car, Battery powered Transfer Car
