Specifications
Brand Name :
BEFANBY
Model Number :
KPX
Certification :
CE,SGS,ISO9001
Place of Origin :
Henan,China
MOQ :
1 set/sets
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
800 set/sets, per year
Delivery Time :
40-50 days as usual delivery,30-40days for urgent delivery
Packaging Details :
The electric flatbed trolley will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Application :
Industrial field
Running speed :
0-20m/min
Warranty :
24 months
Port :
Qingdao/Tianjin/Shanghai
Load capacity :
1-1000 Ton Payload, 5t customized
Operation type :
Hand pendant + remote control
Power supply :
Battery Powered
Option Power :
cable power supply, trolly line, low voltage rail, diesel, etc.
Description
Kpx 5t Electric Flatbed Trolley On Tracks

The electric flatbed trolley is an electric material handling transfer trolley guided by steel rails, which is powered by battery, the modle is KPX, this kinds electric flatbed trolley running on the steel rail is used to handle any type of load, regardless of its size or weight, on a defined runtime.

as the electric flatbed trolley is equipped with steel wheels and move on steel rails they are suited to very high bearing capacities thanks to the very low friction between steel and steel.

there are many drive and control systems for electric flatbed trolley. the drive system includes gear reducer, shaft drive and single wheel drive. the typical unit is equipped with a hand-held suspension control system, which is used by the operator to control the transfer trolley to move back and forth along the track. the average driving speed can be customized, and the operator can walk with the electric flatbed trolley to operate the unit. the pendant control could be mounted on any of the four corners of the transfer trolley to allow the operator to walk along the front of the transfer trolley during operation. our transfer trolleys also have semi-automatic and full-automatic control systems to meet the needs of special applications.

Technique Parameter
Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8

Application

All can be customized as per customers’ requirement.And BEFANBY business is meeting your business demand, hope our professional team can help you well with rich experience.

battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

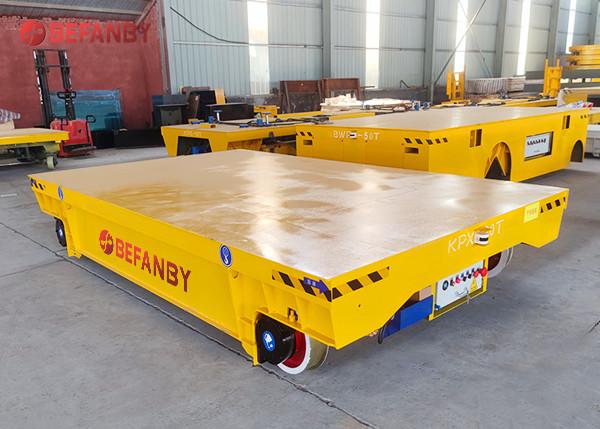

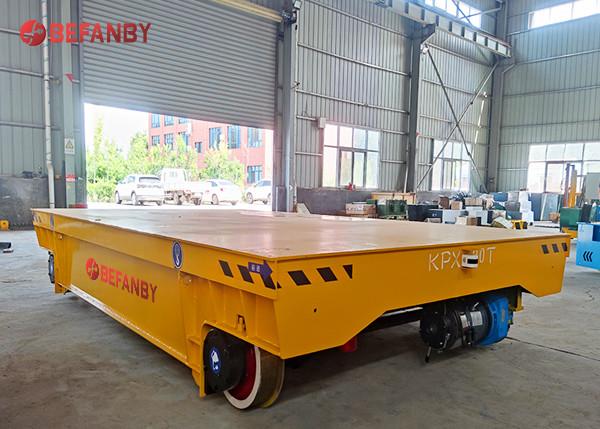

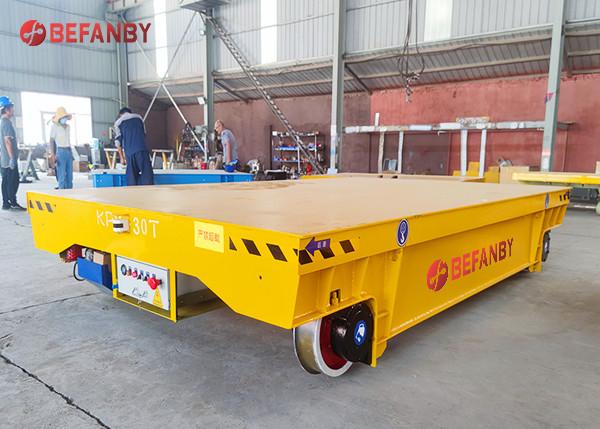

Detailed Images of battery powered electric flatbed trolley

battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
Our Company

Welcome to contact us for more material handling solution!
