Factory Customized 20T Rail Electrical Transfer Trolley With Track
Factory Customized 20T Rail Electrical Transfer Trolley With Track
Factory Customized 20T Rail Electrical Transfer Trolley With Track
Factory Customized 20T Rail Electrical Transfer Trolley With Track
Factory Customized 20T Rail Electrical Transfer Trolley With Track
Factory Customized 20T Rail Electrical Transfer Trolley With Track
Factory Customized 20T Rail Electrical Transfer Trolley With Track
Factory Customized 20T Rail Electrical Transfer Trolley With Track
Factory Customized 20T Rail Electrical Transfer Trolley With Track
Factory Customized 20T Rail Electrical Transfer Trolley With Track
Specifications
Brand Name :
BEFANBY
Model Number :
KPJ
Certification :
CE,SGS,ISO9001
Place of Origin :
Henan, China
MOQ :
1 set/sets
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 set/sets per year
Delivery Time :
20-30 days as usual delivery
Packaging Details :
The railway transfer car will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Material :
Q235
Warranty :
18 months
load capacity :
1-70T
Application :
Industrial field, steel ladle transport
Port :
Qingdao/Tianjin/Shanghai
Power supply :
Low voltage rail power
Description

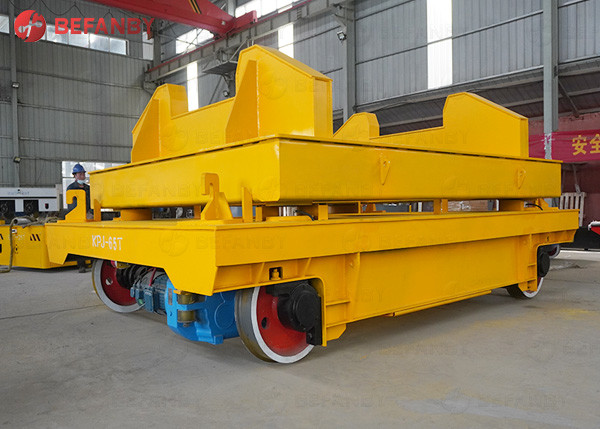

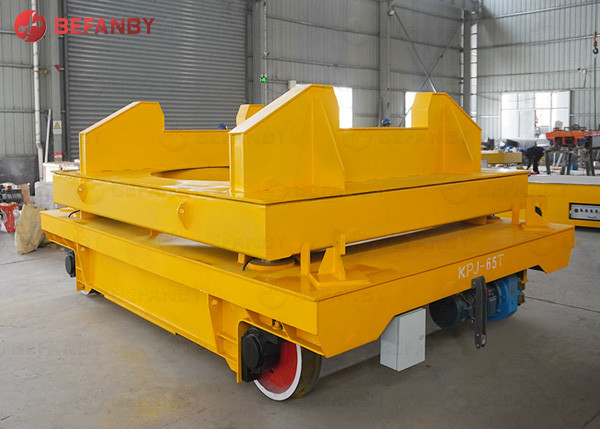

Factory Customized 20T Rail Electrical Transfer Trolley With Track

1. Product Introduce

The rail electric transfer cart is a very practical logistics transportation equipment. It can transport a large number of items or goods from one place to another without interruption. In large factories or warehouses, the rail electric transfer cart is an indispensable transportation equipment. Because it can easily and quickly transport heavy or large items to where they are needed, it greatly improves work efficiency and work benefits.

In order to ensure the safety and stability of the rail electric transfer cart, a protective device can be installed on the car body. This protective device can effectively prevent accidental injuries or damage caused by too fast speed, uneven road surface, and items sliding. At the same time, the use of cast steel wheels can also greatly increase the carrying capacity and durability of the rail electric transfer cart, so that the vehicle can run stably for a long time.

In short, the rail electric transfer cart is a very practical transportation equipment, and its use can greatly improve the production efficiency and work benefits of factories or warehouses.

Please contact us if you's like to learn more details and get the quotation.

BEFANBY have over 20 years' experience in the material handling fields.

Factory Customized 20T Rail Electrical Transfer Trolley With TrackFactory Customized 20T Rail Electrical Transfer Trolley With Track

Factory Customized 20T Rail Electrical Transfer Trolley With Track

2. Advantage

The advantage of rail ladle transport car is that it is not only safe, but also not afraid of hot, does not hinder cross-transportation, not afraid of smashing, easy to realize remote control and automation, can drive on curved roads and circular roads, and increase the number of step-down transformers properly. The limitation of the running distance of the rail ladle transport car is very convenient for the transportation plane layout of the plant.

Factory Customized 20T Rail Electrical Transfer Trolley With Track

3. Technique Parameter
KPD series is a low-voltage power supply without towing cable electric transport car; KPX series is a battery electric motorized rail transport car; KPJ series is a cable reel powered transport car; KPT series is a tow cable powered electric transport car; KPC series is a safe sliding line Powered electric transport car.
Model KPD-2t KPD-5t KPD-10t KPD-16t KPD-20t KPD-25t KPD-30t KPD-40t KPD-50t KPD-63t
Rated load 2 5 10 16 20 25 30 40 50 63
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Height(H) 450 450 500 500 550 600 600 650 650 750
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Diameter 270 300 300 350 350 400 400 500 500 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4
Ground Clearance 50 50 50 50 50 50 50 50 50 75
Running Speed 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20
Motor Power 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Transformer Power 3 5 5 6.8 6.8 6.8 10 10 10 20
Transformer Quatity 1 1 1 1 1 1 1 1 1 1
Running Distance 80 80 80 80 80 80 80 60 50 50
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50

Applications

Factory Customized 20T Rail Electrical Transfer Trolley With Track
BEFANBY Client
Factory Customized 20T Rail Electrical Transfer Trolley With Track
