Specifications
Brand Name :
BEFANBY
Model Number :
KPX
Certification :
CE,SGS,ISO9001
Place of Origin :
Henan,China
MOQ :
1 set/sets
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1500 set/sets, per year
Delivery Time :
40-50 days as usual delivery,30-40days for urgent delivery
Packaging Details :
The rail transfer cart will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Color :
Customized
Application :
Industrial field, warehouse
Running speed :
0-20m/min
Warranty :
24 months
Load capacity :
1-1500 Ton Payload
Option Power :
cable power supply, trolly line, low voltage rail, diesel, etc.
Product Name :
50 Tons Warehouse Used Rail Transfer Cart 0 - 20m/min
Description

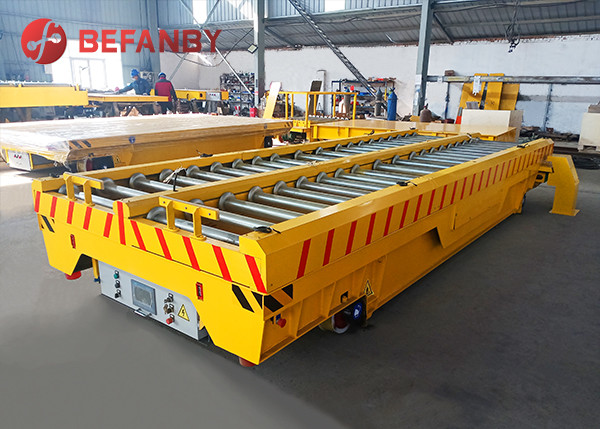

50 Tons Warehouse Used Rail Transfer Cart

Automation and speediness of handling in plant area is the pursuit of enterprises, which directly affects the product efficiency of enterprises. material handling equipment can not only take a straight line as the transportation path. however, due to the influence of the transportation foundation, it is difficult for heavy-duty workpiece transportation to turn, but it is not impossible. rail transfer cart is a kind of heavy transport tool which develops rapidly in recent years. because it can turn, it saves a lot of running space and reduces the running distance between two points.

Technique Parameter
Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8

50 Tons Warehouse Used Rail Transfer Cart 0 - 20m/min

All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.

battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

50 Tons Warehouse Used Rail Transfer Cart 0 - 20m/min50 Tons Warehouse Used Rail Transfer Cart 0 - 20m/min

50 Tons Warehouse Used Rail Transfer Cart 0 - 20m/min

battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

50 Tons Warehouse Used Rail Transfer Cart 0 - 20m/min

50 Tons Warehouse Used Rail Transfer Cart 0 - 20m/min
