Workshop Railroad Battery Transfer Cart 20m/Min 1000T Payload
Workshop Railroad Battery Transfer Cart 20m/Min 1000T Payload
Workshop Railroad Battery Transfer Cart 20m/Min 1000T Payload
Workshop Railroad Battery Transfer Cart 20m/Min 1000T Payload
Workshop Railroad Battery Transfer Cart 20m/Min 1000T Payload
Workshop Railroad Battery Transfer Cart 20m/Min 1000T Payload
Workshop Railroad Battery Transfer Cart 20m/Min 1000T Payload
Workshop Railroad Battery Transfer Cart 20m/Min 1000T Payload
Workshop Railroad Battery Transfer Cart 20m/Min 1000T Payload
Workshop Railroad Battery Transfer Cart 20m/Min 1000T Payload
Specifications
Brand Name :
BEFANBY
Model Number :
KPX
Certification :
CE,SGS,ISO9001
Place of Origin :
Henan,China
MOQ :
1 set/sets
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1500 set/sets, per year
Delivery Time :
20-30 days as usual delivery
Packaging Details :
The material handling solution will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Material :
Q235
Color :
Customized
Application :
Industrial field, steel pallet transfer
Running speed :
0-20m/min
Warranty :
24 months
Running distance :
Unlimited
Port :
Qingdao/Tianjin/Shanghai
Load capacity :
1-1000 Ton Payload
Operation type :
Hand pendant + remote control
Power supply :
Battery Powered
Advantage :
More than 17 years' experience for Transporting Sections Of Vessel Between Buildings Of Shipyard
Option Power :
cable power supply, trolly line, low voltage rail, diesel, etc.
Description
Workshop Material Handling Trolley Platform On Rail Road For Equipment Transfer

Workshop material handling trolley platform, it is an electric material handling transfer cart powered by battery which is designed for heavy duty material or equipment transfer in the factory. we can cusomized different type transfer vehicle on demand as per your demand.

Application Guidance

The material handling trolley platform can be widely applied in many fields, such as steel industries (steel coil, hot metal ladle, dies, molds, steel pipes, steel pates, steel bars and other steel parts transport), ship industries, petroleum industries, painting industries, precast concrete factories, quarry plants, transformer plants, turbine plants, paper making plants, coking plants, boiler plants, power station, textile plants, cement factories, machinery factories, construction sites, production line, workshop, warehouse and other fields for materials, workpieces, machines transport from one bay to another.

Technique Parameter
Model KPX-10t KPX-16t KPX-25t KPX-30t KPX-40t KPX-50t KPX-63t KPX-80t KPX-100t KPX-150t
Rated Load 10 16 25 30 40 50 63 80 100 150
Table size Length(L) 3600 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 2000 2000 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 500 550 600 600 650 650 700 800 900 1200
Wheel Base 2600 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 300 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 75 75 75 75
Running Speed 25 20 20 20 20 20 20 20 20 18
Motor Power 2 2.2 3.5 4 5 6.3 8 10 15 15
Battery Capacity 160 180 250 250 300 330 400 400 440 600
Battery Voltage 48 48 48 48 48 48 48 72 72 72
Max Wheel Load 42.6 64.5 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 4.2 5.5 6.5 6.8 7.6 8 10.8 12.8 14.6 26.8

Workshop Railroad Battery Transfer Cart 20m/Min 1000T Payload

All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.

battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

Workshop Railroad Battery Transfer Cart 20m/Min 1000T Payload

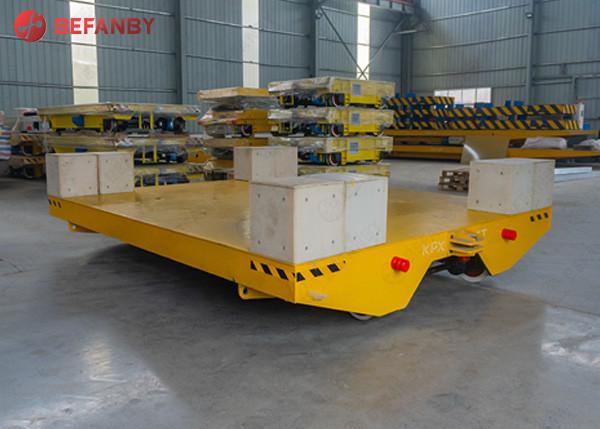

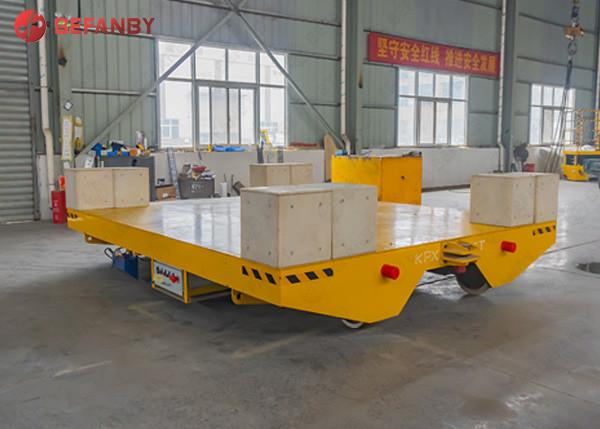

Detailed Images of 50 Ton Battery Track Transfer Vehicle For Die Transportation

Workshop Railroad Battery Transfer Cart 20m/Min 1000T PayloadWorkshop Railroad Battery Transfer Cart 20m/Min 1000T Payload

Applications

bWorkshop Railroad Battery Transfer Cart 20m/Min 1000T Payloadattery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
