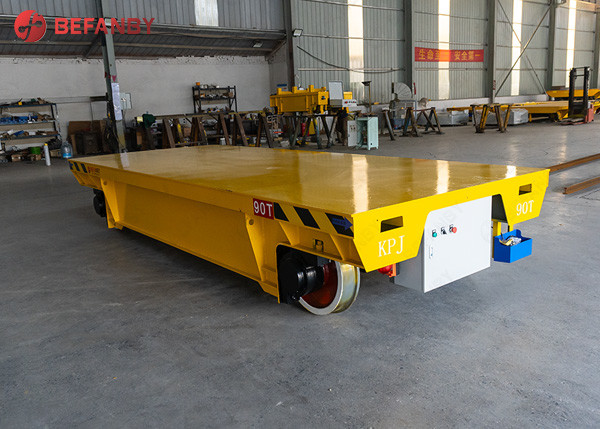

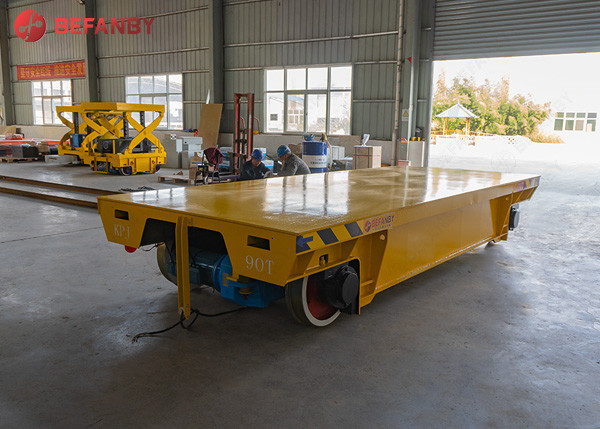

Long Lifetime Aluminium Factory Rail Transfer Cart
Long Lifetime Aluminium Factory Rail Transfer Cart
Long Lifetime Aluminium Factory Rail Transfer Cart
Long Lifetime Aluminium Factory Rail Transfer Cart
Long Lifetime Aluminium Factory Rail Transfer Cart
Long Lifetime Aluminium Factory Rail Transfer Cart
Long Lifetime Aluminium Factory Rail Transfer Cart
Long Lifetime Aluminium Factory Rail Transfer Cart
Long Lifetime Aluminium Factory Rail Transfer Cart
Long Lifetime Aluminium Factory Rail Transfer Cart
Specifications
Brand Name :
BEFANBY
Model Number :
KPX
Certification :
CE, SGS, ISO9001
Place of Origin :
Henan,China
MOQ :
1 set/sets
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1500 set/sets per year
Delivery Time :
20-30 days as usual delivery
Packaging Details :
Electrical parts will add shields. As required by the customer, we can add a fixed packing.
Power supply :
Mobile cable
Running distance :
According to customers' demand
Running speed :
0-20m/min
Color :
Customized
Load capacity :
15 Tons
Warranty :
12 months
Product Name :
Large Duty Electrical Pipe Factory Railway Transfer Carts
Application :
metallurgy plant,Factory,coal plant
Description

Long Lifetime Aluminium Factory Rail Transfer Cart

Brief Introduction Of Transfer Cart

The rail electric transfer cart is an efficient, environmentally friendly, economical and practical means of transportation. It is powered by cables and has low operating costs. Compared with other transportation equipment, the rail electric transfer cart has a simple structure, low maintenance cost, and is also more environmentally friendly.

In addition, the rail electric transfer cart has the advantage of unlimited transportation distance. It can operate freely between different factories and warehouses, greatly improving the efficiency of logistics transportation. It can be adjusted and customized according to customer needs to meet different transportation needs.

The rail electric transfer cart is simple to operate and easy to master. It can realize forward, backward, left and right turns and other actions through the controller, and can also be seamlessly connected with other equipment. With the use of modern control technology, the intelligence of the rail electric transfer cart has gradually improved, and the operation is more convenient and quick.

Therefore, the rail electric transfer cart is an indispensable part of modern factory transportation. It has many advantages such as high efficiency, economy and environmental protection. With the development of science and technology and the expansion of its application scope, it will play a more important role in the field of transportation.

Long Lifetime Aluminium Factory Rail Transfer CartLong Lifetime Aluminium Factory Rail Transfer Cart

Parts Of Rail Transfer Cart

Long Lifetime Aluminium Factory Rail Transfer Cart

Advantage

Long Lifetime Aluminium Factory Rail Transfer Cart
Long Lifetime Aluminium Factory Rail Transfer Cart

Technique Parameter Of Transfer Cart

Model KPT-2t KPT-5t KPT-10t KPT-16t KPT-20t KPT-25t KPT-30t KPT-40t KPT-50t KPT-63t KPT-80t KPT-100t KPT-150t
Rated Load 2 5 10 16 20 25 30 40 50 63 80 100 150
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height(H) 450 450 500 500 550 600 600 650 650 750 800 850 1200
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter 270 300 300 350 350 400 400 500 500 600 600 600 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed 25 25 25 20 20 20 20 20 20 20 20 20 18
Motor Power 0.8 1.5 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Reference Weight 2.3 3.3 3.8 5 5.5 6 6.3 7.2 7.6 10.3 12.1 13.9 26
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100

Application

Long Lifetime Aluminium Factory Rail Transfer Cart

Shipping

Long Lifetime Aluminium Factory Rail Transfer Cart

Brief Introduction

Long Lifetime Aluminium Factory Rail Transfer Cart

Long Lifetime Aluminium Factory Rail Transfer Cart
Long Lifetime Aluminium Factory Rail Transfer Cart
