Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity
Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity
Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity
Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity
Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity
Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity
Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity
Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity
Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity
Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity
Specifications
Brand Name :
BEFANBY
Model Number :
KPT
Certification :
CE,SGS,ISO9001
Place of Origin :
Henan, China
MOQ :
1 set/sets
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 set/sets per year
Delivery Time :
20-30 days as usual delivery
Packaging Details :
The material transfer cat will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Running speed :
0-20m/min
Warranty :
12 months
load capacity :
20 Tons
Application :
Industrial field, factory,warehouse,plant
Port :
Qingdao/Tianjin/Shanghai
Color :
Customized
Power supply :
cable reel
Operation type :
Hand pendent + remote control
Description

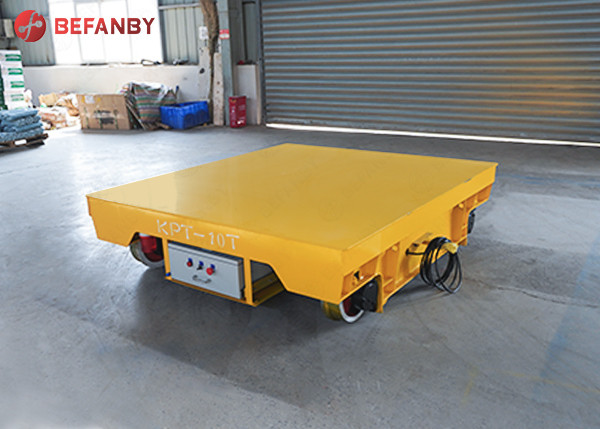

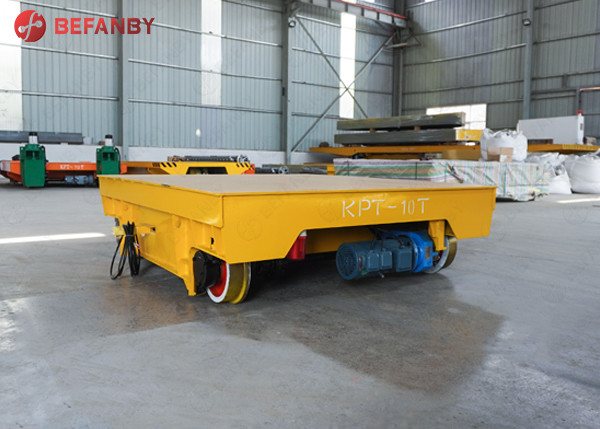

Cast Steel Wheels Cable Reels Track Transfer Carts

Product Description

The material handling vehicle is a very practical handling equipment, which can easily move various materials from one place to another. Tracks need to be laid so that it can run flexibly along the set path. Its structure is very simple, which makes it very easy to maintain.

The material handling vehicle also has an explosion-proof function, which makes it very suitable for those occasions where there is a risk of explosion. It can also be customized according to customer requirements, which makes it very suitable for a variety of different work occasions. During the customization process, there is a dedicated technical team to provide support to customers, which allows customers to use the material handling vehicle with confidence.

In general, the material handling vehicle is a very practical equipment, which can greatly improve work efficiency. It has a simple structure, easy maintenance, powerful explosion-proof function, strong customization ability, and very good after-sales support. It can not only improve work efficiency but also reduce manpower.

Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load CapacityCast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity

Product Details

Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity

Product Parameter

Model KPD-2T KPD-5T KPD-10T KPD-16T KPD-20T KPD-25T KPD-30T KPD-40T KPD-50T KPD-63T
Rated load(t) 2 5 10 16 20 25 30 40 50 63
Table Size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Heigth(H) 450 450 500 500 550 600 600 650 650 750
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300
Rai lnner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Dia.(mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 50
Running Speed(mm) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20
Motor Power(kw) 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Transformer 3 5 5 6.8 6.8 6.8 10 10 10 20
Transformer Quantity(个) 1 1 1 1 1 1 1 1 1 1
Running distance 80 80 80 80 80 80 80 60 50 50
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4
Reference Wight(t) 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50

Application

Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity

Product Characteristics

Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity

Advantage

Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity

Shipping

Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity

Our Company

Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity

Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity

Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity
