Specifications
Brand Name :
BEFANBY
Model Number :
KPD
Certification :
CE,SGS,ISO9001
Place of Origin :
Henan, China
MOQ :
1 set/sets
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 set/sets per year
Delivery Time :
20-30 days as usual delivery
Packaging Details :
The railway transfer car will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Material :
Q235
Warranty :
18 months
load capacity :
1-70T
Application :
Industrial field, steel ladle transport
Port :
Qingdao/Tianjin/Shanghai
Power supply :
cable reels power
Description

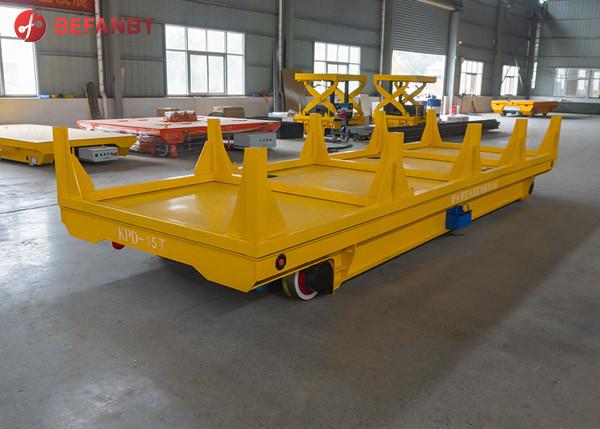

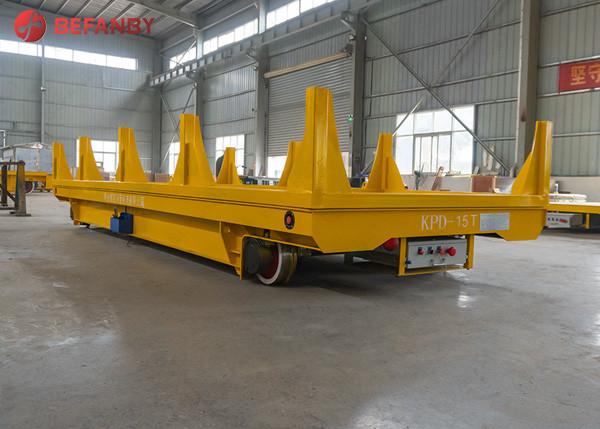

Production Line Low Voltage Rail Transfer Carts

1. Product Introduce

Low-voltage rail electric transfer cart is a kind of transportation tool commonly used in factories, production lines, etc. In order to ensure safe and stable operation, the wheels and tracks are insulated to avoid friction to prevent accidents.

However, due to its design characteristics and working principle, low-voltage rail electric transfer cart is not suitable for explosion-proof occasions. In an environment where explosive gas, steam or dust may exist, the use of low-voltage rail electric transfer cart may cause safety hazards, so it is necessary to carefully select equipment suitable for explosion-proof occasions.

Low-voltage rail electric transfer cart is still a very effective handling tool in normal factories, warehouses and other

environments. It can improve work efficiency, reduce labor costs, and make the transportation of materials more convenient and faster.

Therefore, we should use low-voltage rail electric transfer cart correctly and strictly follow the safety manual to use it. In the prescribed use occasions, do a good job of daily maintenance to ensure its safe operation at work. Let us give full play to its advantages and bring more convenience and benefits to work and production.

Please contact us if you's like to learn more details and get the quotation.

BEFANBY have over 20 years' experience in the material handling fields.

Production Line Low Voltage Rail Transfer Carts

Production Line Low Voltage Rail Transfer Carts

2. Advantage

The advantage of rail transport car is that it is not only safe, but also not afraid of hot, does not hinder cross-transportation, not afraid of smashing, easy to realize remote control and automation, can drive on curved roads and circular roads, and increase the number of step-down transformers properly. The limitation of the running distance of the rail ladle transport car is very convenient for the transportation plane layout of the plant.
Production Line Low Voltage Rail Transfer Carts

Production Line Low Voltage Rail Transfer Carts

3. Technique Parameter
KPD series is a low-voltage power supply without towing cable electric transport car; KPX series is a battery electric motorized rail transport car; KPJ series is a cable reel powered transport car; KPT series is a tow cable powered electric transport car; KPC series is a safe sliding line Powered electric transport car.
Model KPD-2t KPD-5t KPD-10t KPD-16t KPD-20t KPD-25t KPD-30t KPD-40t KPD-50t KPD-63t
Rated load 2 5 10 16 20 25 30 40 50 63
Table size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Height(H) 450 450 500 500 550 600 600 650 650 750
Wheel Base 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300
Rail Inner Gauage 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Diameter 270 300 300 350 350 400 400 500 500 600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4
Ground Clearance 50 50 50 50 50 50 50 50 50 75
Running Speed 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20
Motor Power 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Transformer Power 3 5 5 6.8 6.8 6.8 10 10 10 20
Transformer Quatity 1 1 1 1 1 1 1 1 1 1
Running Distance 80 80 80 80 80 80 80 60 50 50
Max Wheel Load 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4
Reference Weight 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50
