Specifications
Brand Name :
xawh
Model Number :
High-Voltage Current-Limiting Fuse for Power Transformer Protection XRNT1- 8.3kV 15.5kV 24kV 38kV
Place of Origin :
China
MOQ :
1
Price :
RMB 168-2878/Piece 1 Piece (Min. Order)
Payment Terms :
L/C ，D/P , T/T ，Western Union ，MoneyGram ，Paypal
Supply Ability :
5000/Capacity per month
Delivery Time :
10 weekdays
Description

High-Voltage Current-Limiting Fuse for Power Transformer Protection XRNT1- 7.2kV 15.5kV 24kV 38kV

Basic Info.

Model NO.
XRNT1-12/125-50
Phase
Single
Installation
Strut Type
Function
Protection
Transport Package
Carton
Specification
As standard

Product Description

Product Detail:

It can be used indoor system of 50HZ and rated voltage of 3.6KV, 7.2KV,12KV,24KV,40.5KV:Used together with other switch facilities such as loading switches, vacuum contactors, it can protect electric transformers and other electric facilities against overloading or circuit break. It is also a necessary accessory for high-voltage switch.

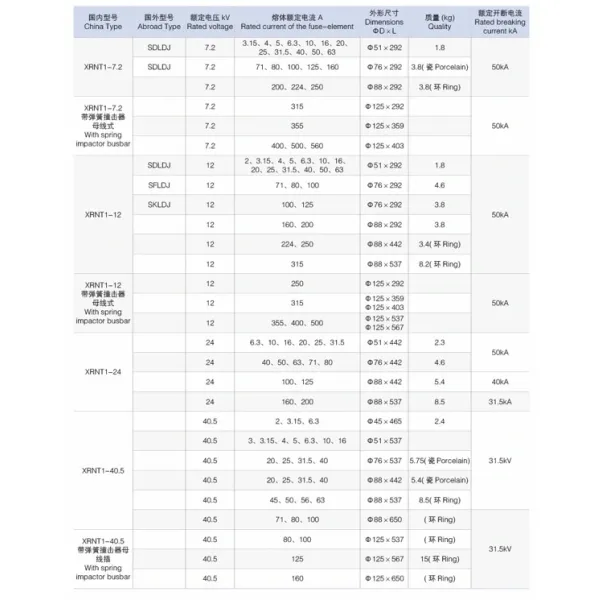

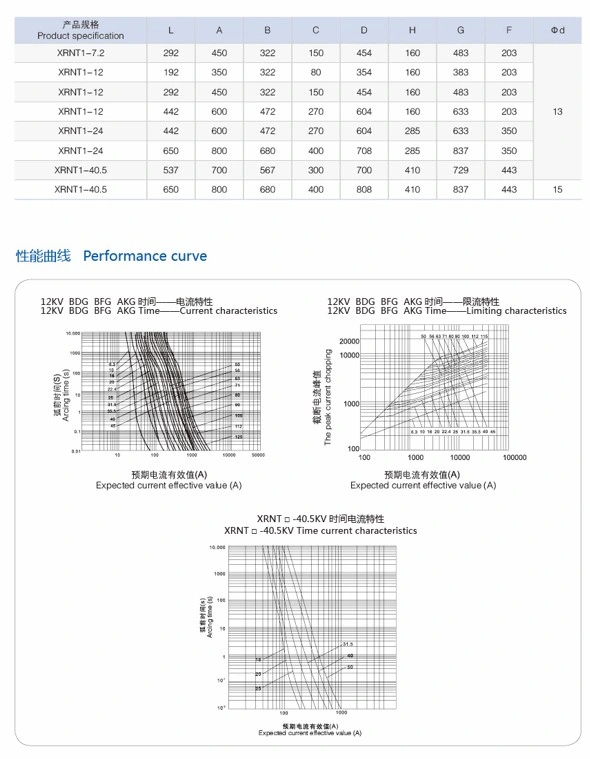

Technical Parameter

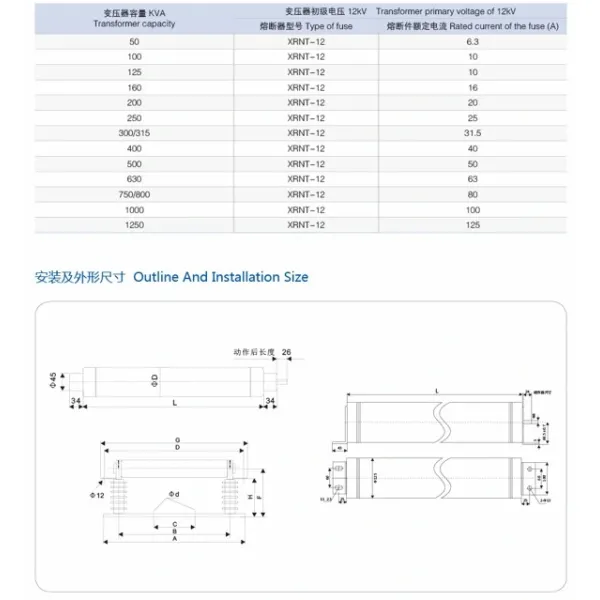

XRNT1- 7.2kV 15.5kV 24kV 38kV Current Limiting Fuse For Power Transformer ProtectionGeneral selection guideline of fuse for protecting 12 KV transformer in the following table.Note: selection for transformer 7.2 kV or anther electric equipments contact the manufacturer please.
XRNT1- 7.2kV 15.5kV 24kV 38kV Current Limiting Fuse For Power Transformer ProtectionXRNT1- 7.2kV 15.5kV 24kV 38kV Current Limiting Fuse For Power Transformer Protection
