One pipe is sights outside profile CNC machining, placket, the middle button, after the cylinder shell, connected into a whole profile, a lot of time turning (some sights will choose a stamping), not relying on the thread splicing.

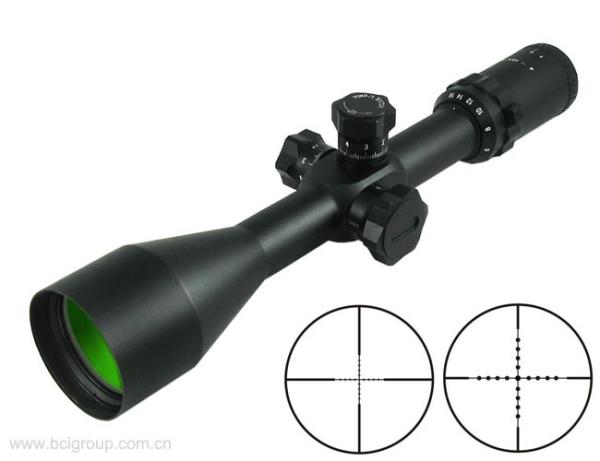

Model | BM5608SF |
Specification | 4 - 16x 56 SF |
Magnification | 4 - 16 |
Objective lens diameter (mm) | 56 |
Field of view at 100 yds(ft) | 29.33 - 7.48 |
Exit pupil (mm) | 13.8 - 3.5 |
Eye relief (mm) | 92 - 90 |
Click (in) 100yds | 0.125 |
Tube Dia (mm) | 30 |
Length (mm) | 370.3 |
Weight (g) | 905g |
Lens Coating | Fully Multi |
Reticle | Mil-Dot (Customize) |
Reticle Texture | Optical glass |
weather proof | Yes |
Waterproof | Yes |
Nitrogen filled | Yes |
Focus system | Side Focus |
