Specifications
Brand Name :
Bochuangshikong
Model Number :
BCSK-SQ004
Certification :
CE CCC FC
Place of Origin :
shenzhen
MOQ :
1
Price :
USD 2555
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
266523
Delivery Time :
3-5
Packaging Details :
Quality box packaging
Standby use :
30-50 minutes
Blocking frequency :
900MHZ/1.5G/2.4G/5.8G
Sight :
Precision CNC 8x optical amplification
Place of use :
Military management zone / troops / air control zone / travel places for political dignitaries / concerts / conference rooms / outdoor and other confidential places
Description
UAV counter gun 500m aviation control forcibly drives black flying UAV away from forced landing and returning UAV jammer
Product introduction

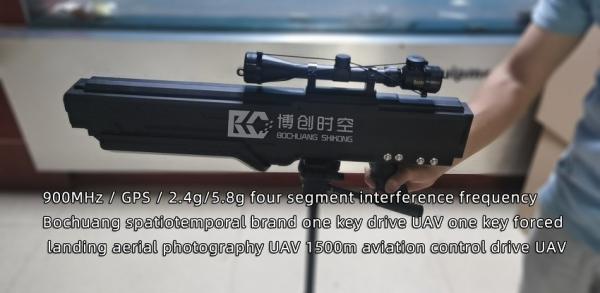

Bcsk-sq004 is a handheld portable UAV interceptor.
The interference and shielding of UAV remote control and positioning signals are realized by transmitting the interference signals of 900MHz / 2.4G, 5g and various GPS, so as to force the UAV to fall or return, and create a "no fly zone for UAV". The interception and interference frequency band includes 2.4G and 5.8G control signals, GPS positioning and navigation signals, etc. the straight-line interception and interference distance under normal environment can reach more than 2500 meters (the actual distance will fluctuate due to the use environment). After the jammer is started, the remote control signal of the UAV can be cut off, and the real-time burst signal and positioning navigation signal can be transmitted,
Welcome to consult the sales and customer service personnel of Shenzhen Bochuang spatiotemporal Communication Technology Co., Ltd. for more detailed product information.
Brand model BCSK-SQ004 model of Bochuang spatiotemporal brand
Interference frequency band 1560-1630Mhz Transmission power 20W
2400-2500Mhz Transmission power 20W
910-928Mhz Transmission power 20W
5720-5890Mhz Transmission power 20W
Antenna type High gain built-in directional antenna independently developed by Bochuang spatiotemporal brand
Antenna gain 10-12db
power supply Built in battery 24V 5000mAh
working temperature -20 ~ +50 ℃
Working humidity Less than 95%
Scope of action It can reach more than 2500 meters (the theoretical data is only for reference, and it will change according to different environmental conditions in actual use)
weight 4KG
size 70-300-580mm

UAV counter gun 500m aviation control forcibly drives black flying UAV away from forced landing and returning UAV jammer

Product features;
◎ Bochuang spacetime brand UAV jammer adopts UHF broadband seamless jamming technology
◎ single channel switching technology controls power output.
◎ high effective power (channel power) and large interference distance.
◎ effective segmentation only interferes with UAV control and video transmission frequency, and will not interfere with other frequencies.
◎ imported devices. The slow start circuit design can avoid the ignition phenomenon caused by mechanical switch, with high integration and stable operation.
◎ the built-in battery and plug-in battery are adopted, which can be replaced at any time. The service life is about 1 hour, and the battery is rechargeable
Electricity for 4 hours.
◎ four SMA / n-type interfaces for connecting directional antenna (900m / 2.4G / 1.5g / 5.8G)
◎ one power charging interface (DC24V in)
UAV counter gun 500m aviation control forcibly drives black flying UAV away from forced landing and returning UAV jammer
Operation process;
When all the switches of the anti gun of the UAV of Bochuang spacetime brand are turned on, the UAV will make a forced landing. When the GPS is turned off and the 2.4g/5.8g/900m is turned on, the UAV will lose control. At this time, the UAV will return. When the 2.4g/5.8g/900m is turned off and the GPS is turned on, the positioning of the UAV is lost. At this time, the UAV remote control can be controlled.
Bcsk-sq004 UAV jammer is specially designed for visual UAV interference. The effective distance is that the flying hand is about 100m away from the UAV and the interference is more than 1500m.
Wireless communication must ensure sufficient carrier interference ratio (signal-to-noise ratio) in order to receive effectively and complete communication. The Communication Signal Jammer destroys the reception conditions of UAV and cuts off the communication connection between UAV and remote control transmission by generating interference signals with the same frequency as UAV. Achieve the effect of interfering with communication.
The interference power is certain, and the shielding radius of unobstructed space is controlled by path attenuation and remote control transmission
The signal level is determined jointly. The following table shows the comparison table of distance and path attenuation. Then the coverage radius can be determined by the jammer's output channel power, remote control signal level and coverage line gain. The following formula:
Pch+Gat-L-FAF≥Prx
Where:
Pch : Minimum channel power output by jammer
Gat : Antenna gain
L : Path attenuation
FAF : Added value of path loss, 6-8db
Prx : Received signal strength
Distance and attenuation comparison table
L = 32 + 20logd + 20logf + FAF f f distance in megahertz D distance in kilometers
UAV counter gun 500m aviation control forcibly drives black flying UAV away from forced landing and returning UAV jammer
distance(m)

900MHz

attenuation(dB)

1575MHz

attenuation(dB)

 distance(m)

2400MHz

attenuation(dB)

5800MHz

attenuation(dB)
1 38 44 25 66 72
2 44 50 30 67.5 73.5
3 48 54 35 69 75
4 50 56 40 70 76
5 52 58 45 71 77
6 53.5 59.5 50 72 78
7 55 61 60 73.5 79.5
8 56 62 70 75 81
9 57 63 80 76 82
10 58 64 90 77 83
15 61.5 67.5 100 78 84
20 64 70 200 84 90

UAV counter gun 500m aviation control forcibly drives black flying UAV away from forced landing and returning UAV jammer

test tools
◎ ADVANTEST u4941 spectrometer
HP 8595
