Fixed UAV jammer 1500m one-key drive aerial photography aircraft 1.5g / 2.4g / 5.8g three-segment frequency UAV jammer

Product information
Product name: IP64 outdoor waterproof project high-power UAV signal jammer, output power 90W, interference height 1000m-1500m
Model: BCSK - GD003
Color: Grey

Basic specification
Interference signal type: UAV RC2.4g / 5.8ghz /GPS Glonass L1 signal
Output power: total power 90W, 20-50W per frequency band
Blocking range :300-1000 meters
Power supply :AC110 or 220V ~ DC27V
Cooling system: high efficiency aluminum radiator
Working hours: Never stop working
Product size :385X307X156 mm(excluding antenna)
Product weight: from Singapore. 10kg(excluding antenna)

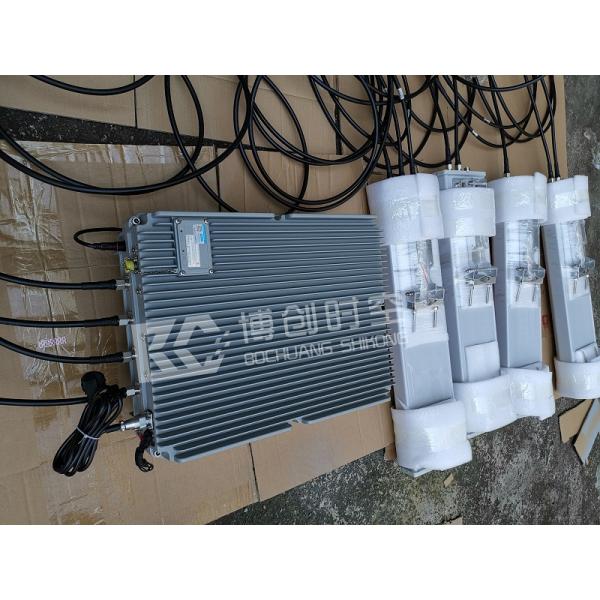

Package contents: Jammer host x 1, adapter X 1, antenna X3, 2 meters cable X3

The product description
Bcsk-gd003 UAV Remover is a professional high-power UAV jammer, IP64 waterproof design, 100% defense against DRONES, such as Phantom 4, Phantom 3 Professional, advanced, Standard series, Inspire series, can be customized RJ45/RS485 wireless control system. Use omnidirectional or directional antennas to jam uAVs for 360º or longer distances.

Product advantage
The total output power is 90W, with a high gain 5-10dbI omnidirectional antenna, shielding 800-1500m, again depending on the signal strength in a given area.
Each device can interfere with 4 frequency bands at the same time, each band is separated, and the power is adjustable from maximum to off (0).
100% safe standing wave over protection for each module (isolator)
Large aluminum alloy housing, non-stop operation
IP64 outdoor installation design, safety design, prevent damage
Optional RJ45/RS485 wireless control system.

OEM Customization Service
Frequency range can be customized: mobile phone GSM2G 3G 4GLTE, etc
Can provide screen printing OEM services.

The application
1) Protection of closed areas, such as prisons, military administrative areas, national strategic resource projects, nuclear industry facilities, airports, political areas, etc.;
2) Prevent site information leakage, such as: major criminal cases site, urban management law enforcement site, important security places, political followers protection, large-scale performances and rehearsals, archaeological excavation site, large-scale group activities site;
3) Combat the use of drones as carriers for illegal activities, such as transport/drug trafficking, smuggling, illegal goods or information transfer.
