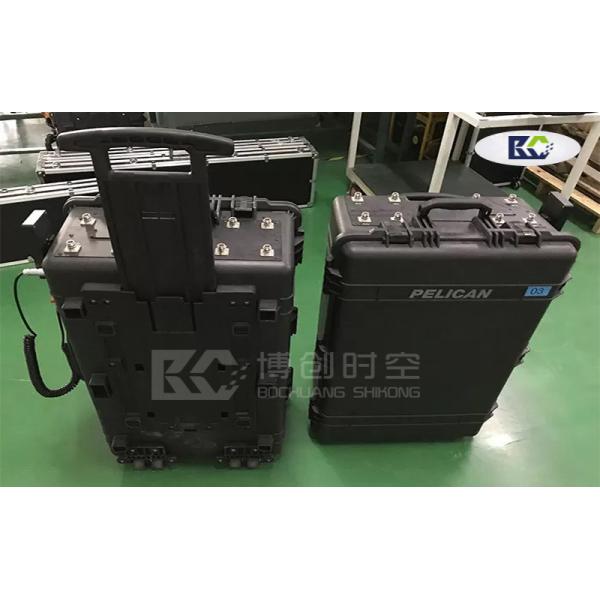

Trolley case style mobile phone signal jammer, Signal Jammer 8pcs omni-directional antenna mobile phone UAV jammer
Trolley case style mobile phone signal jammer, Signal Jammer 8pcs omni-directional antenna mobile phone UAV jammer
Trolley case style mobile phone signal jammer, Signal Jammer 8pcs omni-directional antenna mobile phone UAV jammer
Trolley case style mobile phone signal jammer, Signal Jammer 8pcs omni-directional antenna mobile phone UAV jammer
Trolley case style mobile phone signal jammer, Signal Jammer 8pcs omni-directional antenna mobile phone UAV jammer
Trolley case style mobile phone signal jammer, Signal Jammer 8pcs omni-directional antenna mobile phone UAV jammer
Trolley case style mobile phone signal jammer, Signal Jammer 8pcs omni-directional antenna mobile phone UAV jammer
Trolley case style mobile phone signal jammer, Signal Jammer 8pcs omni-directional antenna mobile phone UAV jammer
Trolley case style mobile phone signal jammer, Signal Jammer 8pcs omni-directional antenna mobile phone UAV jammer
Trolley case style mobile phone signal jammer, Signal Jammer 8pcs omni-directional antenna mobile phone UAV jammer
Specifications
Brand Name :
Bochuangshikong
Model Number :
BCSK-LG008
Certification :
CE CCC FC
Place of Origin :
SHENZHEN
MOQ :
1
Price :
USD 1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
222
Delivery Time :
10-15
One Band Output Power: :
10-100Watt
download :
53.6kg
Power Supply: :
AC110V-240V
Description

Trolley case style mobile phone signal jammer, Signal Jammer 8pcs omni-directional antenna mobile phone UAV jammer

Product Features:

  1. Using UHF broadband interference technology.
  2. High effective power (channel power) and large interference radius.
  3. Imported device, slow start circuit design can avoid the mechanical switch fire phenomenon, high integration, stable work.
  4. Perfect self-protection function. When the device is warned of overheating fault, the shielding device will automatically shut down the failed module to avoid the damage of the shielding device.

Trolley case style mobile phone signal jammer, Signal Jammer 8pcs omni-directional antenna mobile phone UAV jammer
Product Specification:

Channel Working Frequency Output Power(±3dBm)
CH1 20-100 MHz 44.77dBm
CH2 100-300MHz 44.77dBm
CH3 300-500MHz 47dBm
CH4 800-1000MHz 47dBm
CH5 1520- 1670 MHz 48.75dBm
CH6 1800-2000 MHz 48.75dBm
CH7 2000-2200 MHz 48.75dBm
CH8 2400-2690 MHz 48.75dBm
Power: AC 220V
Power Consumption : 1000W
Mainframe weight: 53.6Kg Size(L×W×H):800×500×310 mm
Humidity: 5%-95% Running Temperature: -35 to +80 ℃


Product Details:

1. System accessory table

No Name Qty Unit Remark
1 Antenna 8 pcs Omnidirectional
2 Wire controller 1 pcs
3 Line controller control line 1 pcs Standard
4 Spare Line controller control line 1 pcs 20M
5 Power Line 1 pcs Standard
6 Hand-pull Box 1 pcs System Accessary
2. Omnidirectional Antenna Parameter List
Input impedence 50Ω
standing wave ≤1.8
Gain 3dBi
Power Capacity 150W
Direction of Polarization Vertical Polarization
Cross Modulation <-107dBm
Interface Type 7/16 or N-K
Lightning Protection Direct Grounding
Wind Protectionnn 60(m/s)
Pole Diameter Φ25/40(mm)
3. Product Application Place
Trolley case style mobile phone signal jammer, Signal Jammer 8pcs omni-directional antenna mobile phone UAV jammer
Tag: High Power Signal Jammer for court using.
Product Applications:

Prisons, Recording Studios, Banks, Contract Tendering Rooms, Churches, Classrooms, Testing Facilities, Security Services, Military Units, Secret Services, News Conference Rooms, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, etc.
Product Usage:
Step 1 - Open the box
  • Open the box. Keep unpacked boxes ready for future removal or shipment.
  • check that the open equipment and accessories are in good condition. If any defects or damage are found, please contact your supplier as soon as possible.

Step 2 - Connecting antenna

  • Open the suitcase and take out the antenna. Note: do not activate the shield until the antenna and shield are not well connected, otherwise, the shield will be severely damaged. All costs and consequences arising from this will be borne by the user himself.
  • Each antenna is connected to the RF output interface of the host computer one-to-one.

Trolley case style mobile phone signal jammer, Signal Jammer 8pcs omni-directional antenna mobile phone UAV jammer
Step 3 - Start Jammer

  • Connect the host AC~220V port with the power cord in the suitcase: then dial the side red knob switch to the "1" file;
  • The start and output power adjustment of the wire controller:

1) Connection wire controller
The 6pin wire control connection line is connected to the 6pin wire control connection
port on the side of the chassis;
2) Control the output and output power of the power amplifier with a wire controller.
[ALL Ch]: screen all 4Channel on / off buttons;
[ALL PA]: power output adjustment keys for all 4Channel of the shield;
[CHX]: the output of Channel X is the Channel number of 1 ~ 8 when the output of
Channel X is turned on / off alone;
[PAX]: regulating the power output of ChannelX alone X is the Channel number of 1 / 8.
The output power regulation is divided into five sections: 20: 20 and 40.

Step 4 - Turn off the Jammer

  • the power output switch of each channel is closed;
  • Power off:

1) Dial the red knob switch on the side of the chassis to "0";
2) Unplug the power cord;

Bochuang spatiotemporal signal shield reminder: precautions for outdoor signal shield
1. The antenna must be installed according to the corresponding identification on the host before connecting the host.
2. The effective coverage of the shield is a circular area centered on the shield. Therefore, pay attention to correctly selecting the placement position of Bochuang space-time shield to avoid shielding dead angle; If it is a directional antenna, the alignment direction can be adjusted according to the standard sector angle of the antenna.
3. The shield shall be placed in a well ventilated place to avoid the shielding of large objects and strong electric and magnetic sources of strong heat sources, so as to ensure the shielding effect and stable operation for a long time.
4. When the shield works, it is not allowed to stack other articles and disassemble the antenna on it, so as not to affect the shielding effect and damage the machine.
5. When the shield is not in use, the power supply shall be cut off in time to avoid affecting the normal use of the mobile phone.
6. When using the shield outdoors, pay attention to dust prevention and waterproof. Please keep away from corrosive gases and liquids, and do a good job in dust and moisture prevention, so as not to accelerate the aging of internal components of the equipment
7. When the used site area is larger than the effective shielding range, it is recommended to use multiple shields for honeycomb installation to ensure the shielding effect.
8. Since the power supply and antenna are specially matched with the host and are debugged one by one during factory debugging, please try not to use them interchangeably to ensure good results..
