Product introduction:

Bochuang spatiotemporal brand portable 4G Mobile Phone Signal Jammer has recently upgraded the green signal shield, introduced advanced technology at home and abroad, and continuously upgraded the communication system. The finished products are carefully developed according to the wireless communication at home and abroad, shielding wireless signals such as frequency differentiation (CDMA / GSM / DCS / 3G / 4G / GPS / WiFi / VHF / UHF), and the surrounding operation tower has no impact. The machine adopts single channel power 10W output, which can effectively shield the above signals within the range of 2-50m (depending on the strength of the base station signal), so as to completely interrupt all the above communications within the shielding range.

Product features:

1. Bochuang spacetime brand this 4G Mobile Phone Signal Jammer adopts high-speed BGA processing chip with power buffer protection function

2. Built in high-capacity battery, working continuously for 90 minutes

3. Mains power and DC power supply shall be used at the same time

4. The heat dissipation mode adopts high-speed fan for natural convection and cold exchange for heat dissipation

5. High gain directional antenna with strong directivity

6. The outer box is made of high temperature resistant, compression resistant and fall resistant ABS material by injection molding

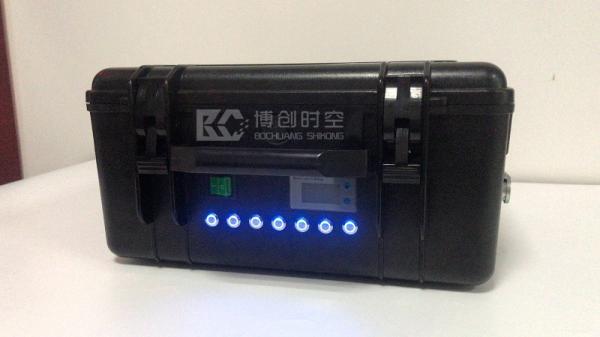

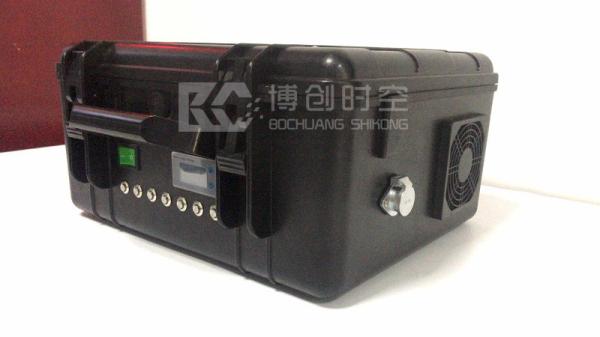

7. The visible part outside the box is provided with obvious power switch and residual battery power display

Bochuang spacetime brand portable high-power trolley case 7-way 70W mobile Signal Jammer up to 150m is a new professional high-power Signal Jammer. This frequency is especially suitable for mobile phone signals and RF frequencies.
It is applicable to protecting the safety of important leaders or VIPs, personal combat,
SWAT team, explosive ordnance disposal team, anti terrorist team, anti drug team, bomb team, security
Checkpoints, administrative law enforcement, hostage negotiation, border control
And military security forces.
features:
1. Large coverage, covering CDMA / GSM, WiFi 2.4g/5.8g, gpsl1 and GPS L2 ~ L5.
2. UWB interference coverage; Continuous interference with 20m ~ 3000MHz wireless signal
3. The trolley case is designed to be easy to carry and move;
4. The built-in rechargeable battery can be used for 90 ~ 120 minutes after being fully charged;
5. Manual switch and remote control;
6. Each channel module can be started or closed separately;
7. Effective frequency division to ensure the best interference effect on signals with different frequencies;
8. Efficient power distribution, minimize power loss and improve efficiency; The power can be adjusted as required (optional gear adjustment);
9. Military standard shell, anti throwing, pressure resistant and durable;
10. AC110-220V / built-in battery power supply (dc27v) / vehicle power supply (dc27v);
11. Built in high-efficiency cooling fan and heat sink to ensure stable operation and long service life of the product;
Specifications:
Output interface output frequency
CH1 CDMA/GSM:900~930MHz,
CH2 2.4G wireless network: 2400 ~ 2450MHz
CH3 2.4G wireless network: 2450 ~ 2500mhz
CH4 5.8G WIFI:5725-5850MHz,
CH5 GPS L1:1520~1580MHz
CH6 GPS L2~L5:1100~1300MHz
Frequency range: CDMA / GSM, WiFi 2.4g/5.8g, gpsl1, GPS L2 ~ L5.
Type: trolley box jammer
Output channel: 6 output channels
Transmission power: integrated equipment ≥ 200W,
Each channel ≥ 25W
Parameter shielding range: radius 100-300m (- 75dbm, depending on the distance of the base station in the open field)
Jammer module 6
Packing: carton
Size: 380 * 305 * 185cm (excluding protrusions)
Antenna 760 Φ thirty-five
Technical parameters:
Net weight 8.5Kg
Including an air box with a total weight of 85 kg
Ambient temperature - 10 º C - + 50 º C
Relative humidity ≤ 80%
Power consumption ≤ 70W
Power input AC100 ~ 240V, DC24V
battery 24V,30AH,built-in backup battery
It can be used for 30 ~ 120 minutes
Antenna parameters omnidirectional antenna, gain: 4 ~ 5dBi
Manual switch control
Equipment chassis metallic paint
Application:
The built-in high-capacity battery and portable backpack design make the jammer suitable for conference hall, infantry, military security forces, special police forces, bomb teams, anti-terrorism forces, anti towing forces, anti riot forces, explosive disposal teams, checkpoints, hostage negotiation, border control, etc...
Terms and conditions:
Delivery time: the planned delivery time is 3 weeks, and the delivery starts from the date when the confirmed purchase order is received and remitted in advance by our bank.
Payment terms: 40% advance payment, 40% after one month, 20% / 100% advance payment before shipment, PayPal, Wu, etc.
Delivery terms FOB Hong Kong / USA.
The warranty period is 36 months.
Software updates will provide 36 months of free software updates.
Extended warranty period after the fourth year: 5% of the total warranty period every year.

brand:Bochuangshikong	Model: bcsk-101s-8
signal system		工作频率	输出功率
1	CDMA	870-960MHz	41dBm(12W)
2	DCS	1800-1880MHz	40dBm(12W)
3	3G	2110-2170 MHz	40dBm(12W)
4	G4	2300-2400 MHz	40dBm(12W)
5	4G1	2500-2670 MHz	40dBm(12W)
6	WIFI	2400-2500 MHz	40dBm(12W)
7	5G	3400-3600MHZ	37dBm(5W)
8	5G	4800-4900MHZ	37dBm(5W)
Power supply mode		External input av110-220 / built-in 24V battery
Overall dimension		380*305*185mm Weight: about 8.5Kg

matters needing attention
1. The antenna of Bochuang spatiotemporal brand mobile phone signal Jammer (not required for this model) must be installed according to the corresponding identification on the host, and then the host power must be connected.
2. The effective coverage of the shield is a circular area centered on the shield, so pay attention to correctly select the placement position of the shield to avoid shielding dead angle; If it is a directional antenna, the alignment direction can be adjusted according to the standard sector angle of the antenna.
3. Bochuang spatiotemporal brand mobile phone signal jammer should be placed in a well ventilated place, avoid large objects as far as possible, and avoid strong electric and magnetic sources of strong heat sources, so as to ensure shielding effect and stable operation for a long time.
4. When the shield works, it is not allowed to stack other articles and disassemble the antenna on it, so as not to affect the shielding effect and damage the machine.
5. When the mobile phone signal jammer of Bochuang spacetime brand is not in use, the power supply shall be cut off in time to avoid affecting the normal use of the mobile phone.
6. When using the shield outdoors, pay attention to dust prevention and waterproof. Please keep away from corrosive gases and liquids, and do a good job in dust and moisture prevention, so as not to accelerate the aging of internal components of the equipment
7. When the used site area is larger than the effective shielding range, it is recommended to use multiple shields for honeycomb installation to ensure the shielding effect.
8. Since the power supply and antenna are specially matched with the host and are debugged one by one during factory debugging, please try not to use them interchangeably to ensure the best effect..
9. The warranty period of Bochuang spatiotemporal brand mobile phone signal jammer is one year and life-long maintenance.
Problem solving
1. Why do some mobile phone signal indicators still have signal indications when the mobile phone signal jammer of Bochuang spacetime brand works?
A: This is just an illusion. In fact, at this time, the mobile phone has been unable to communicate. When you press the pull-out button at will, you will find that there is no signal indication on the signal indicator.
2. Will the signal shield interfere with the normal operation of other electronic equipment?
A: No. This is because the electromagnetic signal sent by the signal shield completely falls within the working frequency band of the mobile phone specified by the state, which will only block the mobile phone communication. And this signal is always in a relatively static state and will not affect any electronic equipment.
3. Is Bochuang spatiotemporal brand mobile phone signal jammer harmful to human body and mobile phone?
A: please rest assured that the electromagnetic signal intensity emitted by the signal shield is very weak. The test data show that this signal intensity will not cause harm to the human body. At the same time, the signal shield only blocks the forward signal of the mobile phone, so that the mobile phone can not contact the base station, so it will not cause any damage to the mobile phone itself.
4. Is there any difference in the operating distance between indoor and outdoor signal shields?
A: Yes. The effective distance (10-40m) of signal shield generally refers to the indoor distance. In outdoor open areas, the effective distance of shielding can reach hundreds of meters. It should be noted that whether used indoors or outdoors, the effective working distance of the shield is related to the environmental conditions at that time, such as the distance from the base station, the location, etc. Therefore, when using the signal shield, this factor should be fully considered to avoid shielding dead angle, which will affect the shielding effect.
5. Does Bochuang spatiotemporal brand mobile phone signal jammer have the same effect on GSM mobile phones and CDMA mobile phones?
A: that's a good question. Because the anti-interference performance of CDMA mobile phones is much better than that of GSM mobile phones, the effective shielding distance of signal shield for CDMA mobile phones is less than that of GSM mobile phones, but the difference is not very large, about 2-4m. However, users are also reminded that in some particularly important places, if necessary, the number of signal shields in the field should be increased to ensure the shielding effect of CDMA mobile phones.
6. The shell of Bochuang spatiotemporal brand mobile phone signal jammer is hot after working for a period of time. Will it damage the machine after working for a long time?
A: Thank you for your care. This is a normal phenomenon. In design, we use the thermal conductivity of aluminum alloy wire drawing casing to assist heat dissipation. So as to ensure long-term stable operation. Therefore, the hot casing will not damage the machine.
