Bcsk-810k12 technical parameters of Bochuang spacetime
Product introduction
Product model: bcsk-810k12
According to the principle of mobile phone (radio communication), this product adopts broadband scanning technology to cut off the wireless signal connection of mobile phone 2G, 3G, 4G, 5g, 2.4 + 5.2 + 5.8G wiif, wireless microphone, invisible headset, wireless pinhole camera and other wireless devices, which shows the phenomena of search network, no signal, no service system and so on. Using brand imported components, independent R & D and production, stable performance and long-term durability! The signal radiation is similar to that of mobile phones and is not harmful to human body.

Applicable place
▲ various meeting rooms, auditoriums, courts, libraries, examination rooms, schools, cinemas and opera houses; ▲ personal private places; ▲ government, army, prison, public security, command system and other places where the use of mobile communication equipment is prohibited.
Product features
Bochuang spacetime bcsk-810k12 medium and high-power shielding system is universal, which can effectively shield domestic 2G / 3G / 4G / 5G mobile phone signals, 2.4 + 5.8G WiFi and walkie talkie, and the frequency can also be customized according to customer requirements.
Transmission power: 10W per channel, 120W, imported power amplifier and IC.
Power supply specification: ac220v3a -- 24VDC / 20A (high quality industrial switching power supply)
Standing wave protection technology is adopted, which is not easy to be damaged even under no-load.
Heat dissipation system: high efficiency aluminum alloy 6 large radiators, which can be used for 7 * 24 hours for a long time.
The panel super gain antenna is adopted, and the antenna angle is up and down & left and right 120 °
Network management and control can be selected, and the equipment can be switched on and off regularly through the intelligent shielding management system.
Product analysis
Product parameters
project parameter Frequency (unit: MHz) output power
Transmission frequency band
CDMA
870-880 40dBm (10W)
2. DCS 1805-1920 40dBm (10W)
GSM
930-960 40dBm (10W)
TD-SCDMA
2010-2025 40dBm (10W)
CDMA2000,WCDMA
2110-2170 40dBm (10W)
4G1
2300-2400 40dBm (10W)
2.4G WIFI
2400-2485 40dBm (10W)
4G2
2515-2675 40dBm (10W)
5G1
3300-3600 37dBm (5W)
5G2
4800-5000 37dBm (5W)
5.2G WIFI
5150-5350 37dBm (5W)
5.8G WIFI
5725-5875 37dBm (5W)
Total output power
100W
Power supply mode AC220V3A --24VDC/20A Built in industrial power adapter
Overall power consumption ≤500W 220V/3A
relative humidity ≤85% Keep the host dry during storage
ambient temperature - 30 ℃ to 60 ℃ Brand: Bochuang spacetime
dissipate heat Built in 6 cooling fans Model: bcsk-810k12
Host size ( Unit: mm) 400 * 300 * 165 Blocking frequency: 2G + 3G + 4G + 5g + WiFi
antenna Built in directional array antenna Brand: Bochuang spacetime
Antenna gain ≥7dBi Model: bcsk-810k12
Host weight 8Kg Excluding outer packaging
Cleaning and maintenance Do not use chemical solvents during cleaning. Just use a wet rag without maintenance

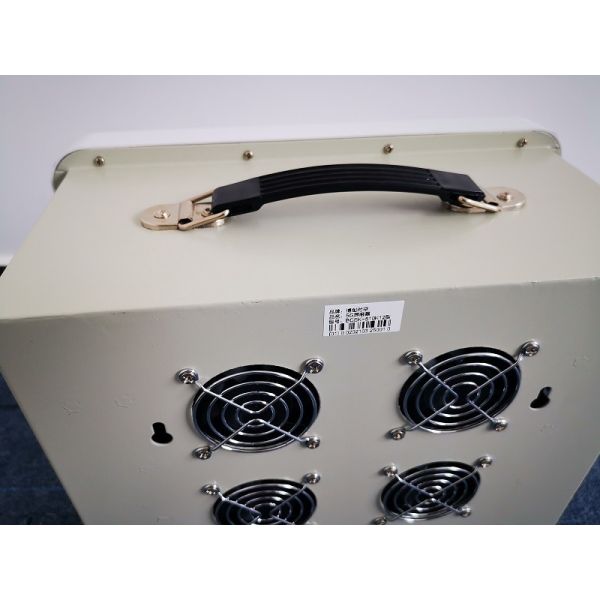

Actual picture of product
