20W 30W Desktop Co2 Fiber Laser Marking Machine
20W 30W Desktop Co2 Fiber Laser Marking Machine
20W 30W Desktop Co2 Fiber Laser Marking Machine
20W 30W Desktop Co2 Fiber Laser Marking Machine
20W 30W Desktop Co2 Fiber Laser Marking Machine
20W 30W Desktop Co2 Fiber Laser Marking Machine
20W 30W Desktop Co2 Fiber Laser Marking Machine
20W 30W Desktop Co2 Fiber Laser Marking Machine
20W 30W Desktop Co2 Fiber Laser Marking Machine
20W 30W Desktop Co2 Fiber Laser Marking Machine

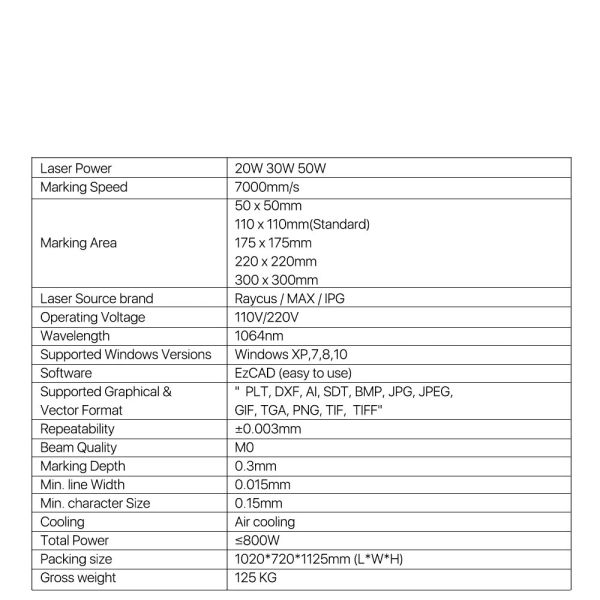

Specifications
Brand Name :
HM
Model Number :
20W
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
1200
Payment Terms :
T/T, Western Union
Delivery Time :
7 work days
Packaging Details :
woodencase
Graphic format supported :
AI,PLT,BMP,DWG,DXF
Cooling mode :
Air Cooling
Condition :
New
Control software :
EZCAD
Warranty :
2 Years
Marking speed :
0-7000mm/s
Laser power :
20W 30w 50w(Optional)
Laser wavelength :
1064nm
Laser source :
Raycus
Product name :
30W laser marking machine,20 Fiber Laser marking Machine for metal,Fiber Optical Laser Marking Machine
Description
Product Description
1. Model: Fiber Laser Marking Machine.
2. Applicable materials:Applicable various metal, such as silver, alloy, aluminum, stainless steel, copper etc, and some non-metal materials, such as PVC,PC, black acrylic.

3. Applicable industry:It is widely applying for electronic, jewelry, automobiles, communication products, plastic buttons, IC etc.
Portable Type Fiber Laser Marking Machine with RAYCUS/MAX/JPT Source.
20W 30W Desktop Co2 Fiber Laser Marking Machine

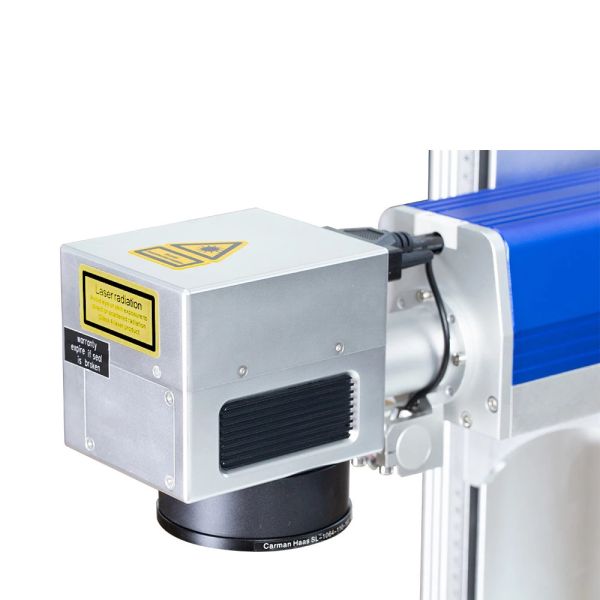

Galvanometer Mirror
Scanning galvanometer, full digital signal, super anti-interference ability.High precision, short delay, fast speed, small
temperature drift, especially suitable for all kinds of high precision, high speed marking requirements.The fiber wavelength is 1064nm.
20W 30W Desktop Co2 Fiber Laser Marking Machine
02

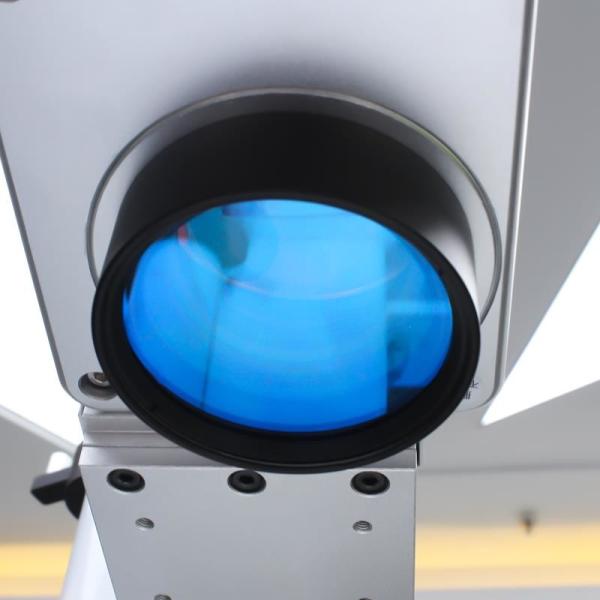

High Quality Field Lens
Famous brand field lens Wavelength Higher energy conversion rate,fast speed and long life.75MM*75MM ,100*100MM,150*150MM ,200*200MM ,300*300MM ,Above working area optical Same power for example 20W if working area smaller,the marking depth by one time is bigger
20W 30W Desktop Co2 Fiber Laser Marking Machine
03
JCZ Main board
Meanwell power supply

configured with high precision

04
EZCAD Control Software
Control software, beautiful interface, powerful function, detailed parameters, simple operation, can describe any pattern, text,
bar code, two dimensional code processing.
05
Optical double red light

Configure with double light ;easy to find the right focus length,but needs to add some cost

06

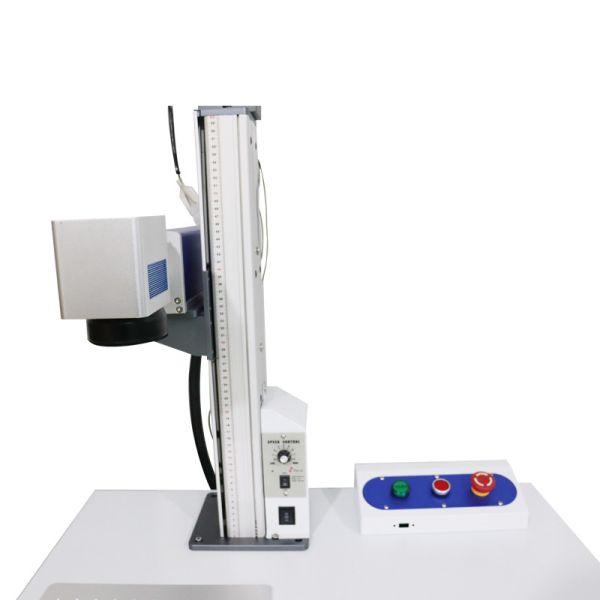

Lifting handle
High quality and stable Adjust the up and down for different height material marking
07
Control button
Humanized control system, easy to operate, safe and convenient, dust proof design
09
Working table
Aluminum working table. Flat and smooth, compact structure, flexible processing direction adjustable control.
20W 30W Desktop Co2 Fiber Laser Marking Machine
20W 30W Desktop Co2 Fiber Laser Marking Machine
