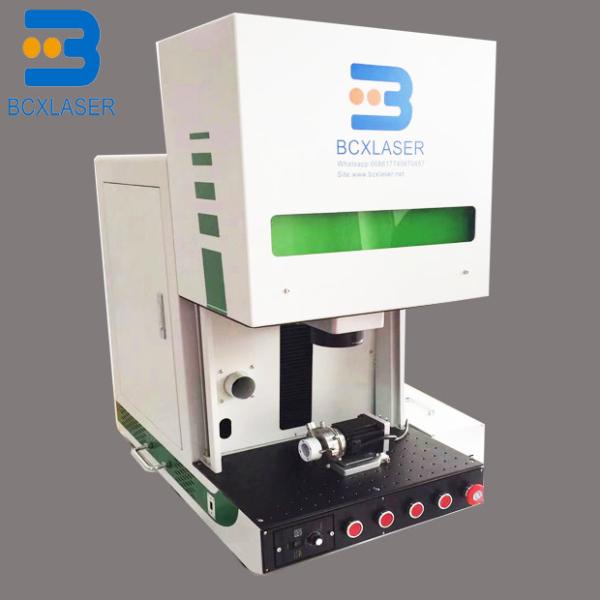

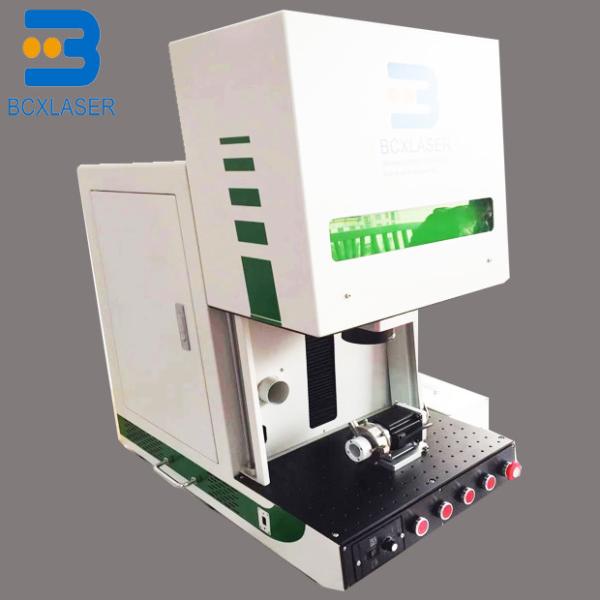

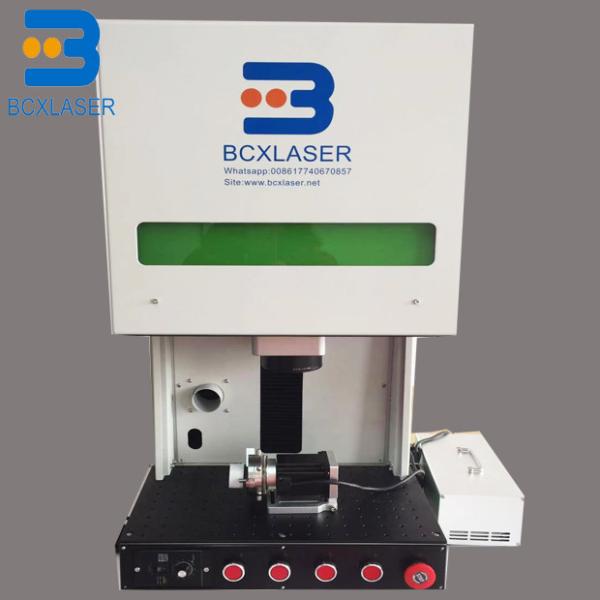

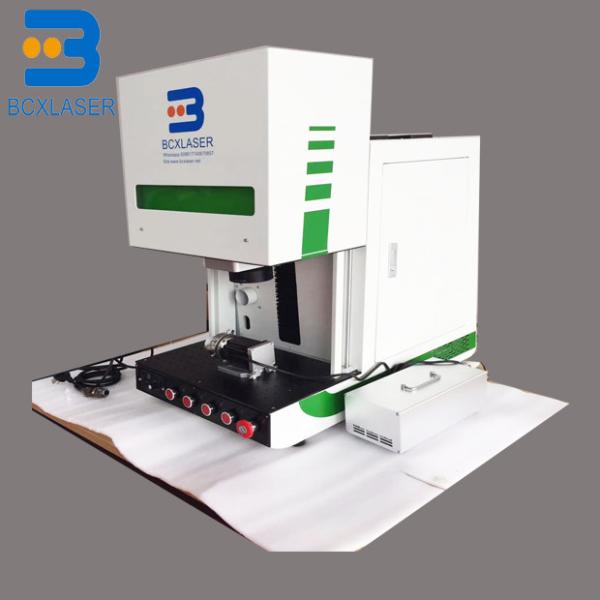

Enclosed Fiber Laser Marking Machine Gold Silver Jewelry Engraving Cutting 30W 100W
Enclosed Fiber Laser Marking Machine Gold Silver Jewelry Engraving Cutting 30W 100W
Enclosed Fiber Laser Marking Machine Gold Silver Jewelry Engraving Cutting 30W 100W
Enclosed Fiber Laser Marking Machine Gold Silver Jewelry Engraving Cutting 30W 100W
Enclosed Fiber Laser Marking Machine Gold Silver Jewelry Engraving Cutting 30W 100W
Enclosed Fiber Laser Marking Machine Gold Silver Jewelry Engraving Cutting 30W 100W
Enclosed Fiber Laser Marking Machine Gold Silver Jewelry Engraving Cutting 30W 100W
Enclosed Fiber Laser Marking Machine Gold Silver Jewelry Engraving Cutting 30W 100W
Enclosed Fiber Laser Marking Machine Gold Silver Jewelry Engraving Cutting 30W 100W
Enclosed Fiber Laser Marking Machine Gold Silver Jewelry Engraving Cutting 30W 100W
Enclosed Fiber Laser Marking Machine Gold Silver Jewelry Engraving Cutting 30W 100W
Enclosed Fiber Laser Marking Machine Gold Silver Jewelry Engraving Cutting 30W 100W
Specifications
Brand Name :
bcx
Model Number :
bcx—0202
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
usd1500set
Payment Terms :
T/T, Western Union
Supply Ability :
10000set/year
Delivery Time :
8-10working days
Packaging Details :
specialized shatterproof packing
Marking speed :
7000mm/s-12000mm/s
Marking area :
110*110mm~175*175mm
Keywords :
2mm stainless steel metal laser marking
Product name :
color fiber laser marking machine
Brand :
BCX
Power :
30W/50W/ 60W/80W/100W
Marking Speed :
8000mm/s
Cooling Mode :
Air Cooling
Minumum Line Width :
0.015mm
Minumum Character :
0.2mm
Laser Wavelength :
1064nm
Description

Small Enclosed 30W 50W 80W 100W Fiber Laser Marking Machine Gold Silver Jewelry Laser Engraving And Cutting Machine

Description

Featured with the integrated design, the fiber laser marking system is of compact size, low consumption, long lifespan, high efficiency, free from mainteance, convenient to be installed and taken away.

The whole machine is of easy operation, and one key to control the power on and power off. With strong extensive ability, the equipment can be available in all kinds of working environment, especially suitable for the unique processing and operation, convenient to be matched with other automatic equipments.

With superior laser beam, and precise light spot, it is no need of consumable items. The scanning galvanometer is imported with original packing, and with compact size and fast speed, it is of precise location, its software operation is simple and function is strong.

Technical Parameters

Fiber Laser Marking Engraving Machine Specifications

Product Name Fiber Laser Marking Machine Cooling Mode Air Cooling
Type Small enclosed Max Marking Speed 7000mm/s
Laser Source Raycus / JPT / IPG Mininum Line Width 0.015mm
Power 30W/50W/ 60W/80W/100W Mininum Character 0.2mm
Laser Wavelength 1064nm Pulse Frequence

30 KHz - 100 KHz (Raycus)

1KHz - 4000KHz (JPT)
Marking Area 110*110mm~175*175mm

Operation Environment Working temperature: 0°-40°, Storage temperature: -10°-60°. Humidity: 30% - 85%.
Cooling Model Air Cooling Power Supply AC110V /220V +10% / 50HZ or 60HZ
Control Card EZCAD2 from BJJCZ Operation System Win XP / 7 / 8 / 10 (64 bits)

Enclosed Fiber Laser Marking Machine Gold Silver Jewelry Engraving Cutting 30W 100W
