ND YAG Crystal Laser Rods D7* 145mm For Beauty Instrument
ND YAG Crystal Laser Rods D7* 145mm For Beauty Instrument
ND YAG Crystal Laser Rods D7* 145mm For Beauty Instrument
ND YAG Crystal Laser Rods D7* 145mm For Beauty Instrument
ND YAG Crystal Laser Rods D7* 145mm For Beauty Instrument
ND YAG Crystal Laser Rods D7* 145mm For Beauty Instrument
ND YAG Crystal Laser Rods D7* 145mm For Beauty Instrument
ND YAG Crystal Laser Rods D7* 145mm For Beauty Instrument
ND YAG Crystal Laser Rods D7* 145mm For Beauty Instrument
ND YAG Crystal Laser Rods D7* 145mm For Beauty Instrument
ND YAG Crystal Laser Rods D7* 145mm For Beauty Instrument
ND YAG Crystal Laser Rods D7* 145mm For Beauty Instrument
Specifications
Brand Name :
HM
Model Number :
HM-WLD
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
usd20
Payment Terms :
T/T, Western Union
Supply Ability :
10000set/year
Delivery Time :
7 work days
Packaging Details :
100*80*90
Usage :
Metal welding
Doping concentration Nd: :
0.2 to 1.3 at%
Crystal bar size :
Diameter: 2 ~ 15 mm, length: 3 ~ 200 mm
Dimensional tolerances :
Diameter: + 0.00 / -0.05mm, length: ± 0.5mm
Cylindrical processing :
400 # abrasive grinding or polishing
Surface Quality :
10-5 (MIL-O-13830A)
Downside down :
0.15 ± 0.05mm
Antireflection film reflectivity :
≤ 0.25% @ 1064nm
Description

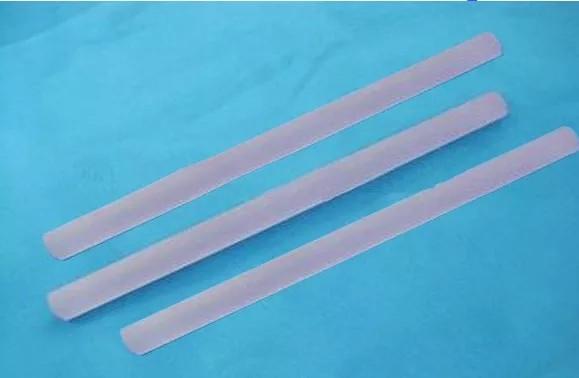

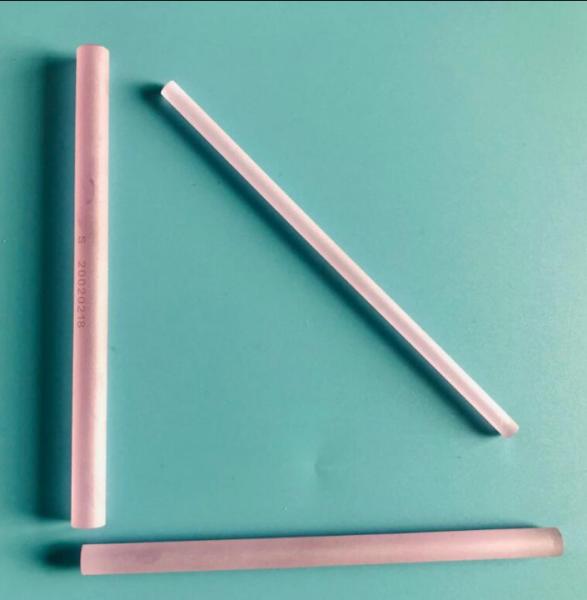

Laser Rods D7* 145mm ND YAG Crystal for Beauty Instrument
Doping concentration Nd:
0.2 to 1.3 at%
Crystal orientation [111] or [100]
within 5 ° of deviation
Crystal bar size
Diameter: 2 ~ 15 mm, length: 3 ~ 200 mm (Can be customized according to customer requirements)
Dimensional tolerances
Diameter: + 0.00 / -0.05mm, length: ± 0.5mm
Cylindrical processing
400 # abrasive grinding or polishing
End parallelism
≤ 10 "
Contour of the end face and the rod
≤ 5 '
Face flatness
Λ / 10 @ 632.8 nm
Surface Quality
10-5 (MIL-O-13830A)
Downside down
0.15 ± 0.05mm
Antireflection film reflectivity
≤ 0.25% @ 1064nm
Film resistance to laser damage threshold
≥ 500MW / cm2
