Specifications
Brand Name :
bcx
Model Number :
bcx-i
Certification :
ce
Place of Origin :
china
MOQ :
1
Price :
$1500
Payment Terms :
T/T
Supply Ability :
10 Piece/Pieces(Min. Order)
Delivery Time :
8
Packaging Details :
wooden
Machine type :
Other
Material :
Metal / Coil
Power(w) :
60w/100w/120W/150W/200w/500w
Condition :
New
Fuel :
laser
Cleaning type :
Burn-Off / Thermal System
Description

Factory Price Metal Rust Removal 100W Laser Cleaning Machine

Overview

The laser cleaning machine is a new generation of high-tech product for surface cleaning. It’s very easy to install and operation. It could be used with no chemical reagents,no media, dust-free and anhydrous cleaning, with the advantages of auto focus, fit crank surface cleaning, high surface cleanliness. The laser cleaning machine can clear the surface resin, oil, dirt, dirt, rust, coating, coating, paint, etc.

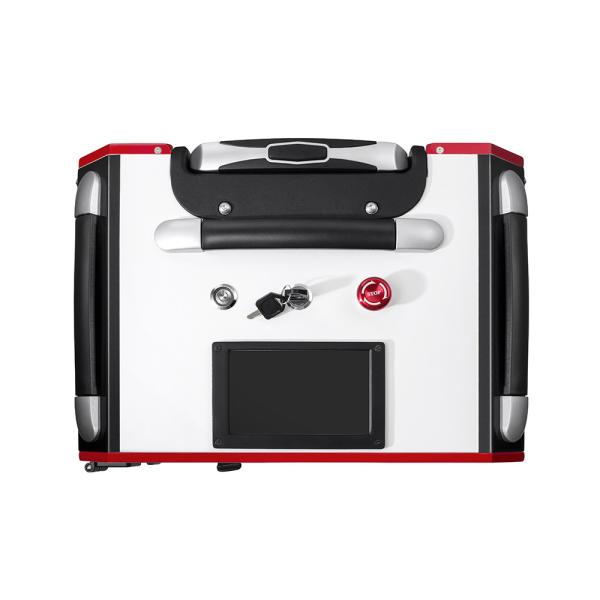

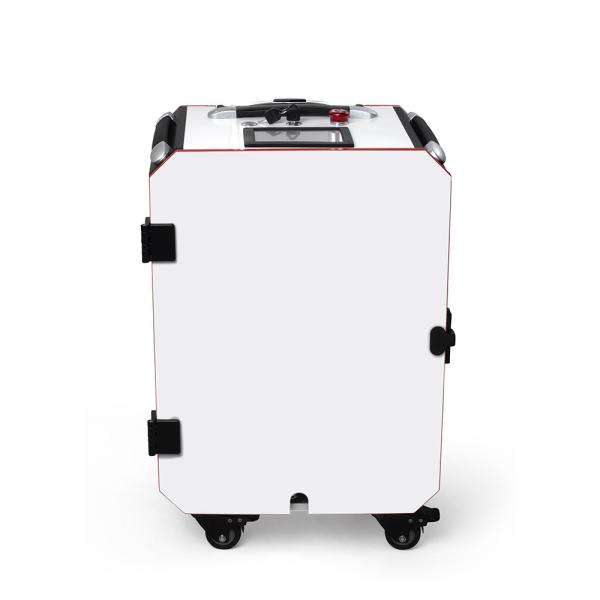

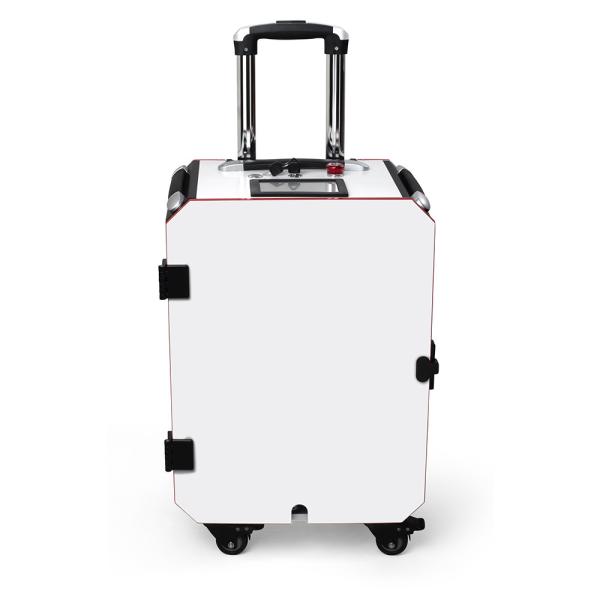

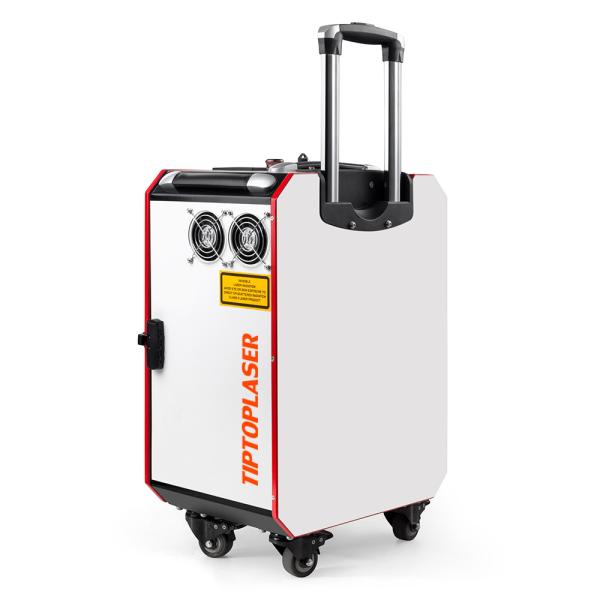

Laser rust removal machine is with portable laser gun.

TIP-TOP Laser R & D a new industrial laser cleaning machine is using surface decontamination capability of laser, using optical fiber transmission guide, so that cleaning can be in different position, the cleaning of different parts of an efficient, green, advanced cleaning technology, compared with chemical cleaning, without any chemicals and cleaning liquid; compared with mechanical cleaning, no grinding no stress, no supplies, minimum of matrix damage (artifacts and paintings, for a wide range of cleaning) (nuclear pipeline cleaning); the applicable object of the industrial laser cleaning machine is also more widely, to remove rust and paint, in addition to dirt, wafer surface treatment; And the cleaning degree of the handheld laser rust remover is high (to remove nano particles, the following pollution) technology has been applied in various fields (mold cleaning, cleaning and coating fighter)

Quick Details
Condition New
Power 100W, 200W
Applicable Material stainless steel, Carbon Steel, Aluminum, Wood, Stone, metal
Video outgoing-inspection Provided
Machinery Test Report Provided
Marketing Type New Product 2021
Warranty of core components 3 years
Core Components PLC
Laser Type Fiber Laser
Certification ce
Place of Origin Shandong, China
Brand Name TIPTOPLASER
Dimension(L*W*H) 100 *700 *1150 mm
Laser Source Brand RAYCUS
Weight (KG) 80 KG
Key Selling Points Easy to Operate
Warranty 3 years
After-sales Service Provided Field maintenance and repair service, Free spare parts, Online support, Field installation, commissioning and training, Video technical support
After Warranty Service Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries Printing Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Hotels, Home Use, Garment Shops, Food & Beverage Shops, Construction works , Restaurant, Machinery Repair Shops, Advertising Company, Food Shop, Energy & Mining, Retail, Building Material Shops
Local Service Location None
Showroom Location None
Product name Metal Rust Removal 100W Laser Cleaning Machine
Fuel Electric
Use Burnishing
Material Metal / Coil
Machine Type Other
Cleaning Type Automatic, Laser cleaning
Scan width 10-80mm
Spot diameter 0.08mm
Focus 160mm
Cooling system Air

Factory Price Metal Rust Removal 100W Laser Cleaning Machine

Product Description
Rust Removal Laser Cleaning Machine Product Description

Rust Removal Laser Cleaning Machine Features

1. Accurate laser cleaning for exact position and precise size.
2. Widely applied in flat,curved and three-dimensional surface for work piece of elastic material and plastic with very small and deep holes.
3. Flexible operation for work pieces with complicated geometric construction can be realized by mechanized or hand-held laser cleaning head.
4. No maintenance and no consumables,dust-free,no chemicals,no pollution.
5. Non-contact cleaning and no damage for substrate Extremely.
6. Low cleaning cost and High cleaning efficiency.

Rust Removal Laser Cleaning Machine Parameters

Input voltage: ±15VDC
Signal Interface: Digital XY2-100
Position signal input resistance: 1K±1%Ω
Position signal input scaling factor: 0.5V/°
Position signal output example coefficient: 0.5V/°
Working temperature: 0°C-45°C
Application
Application for Rust Removal Laser Cleaning Machine

The industrial laser cleaning machine is widely used in the shipping industry, auto parts, rubber mold, high-end machine tools, tire mold, track, environmental protection industry and other fields. Such as:

1) Cleaning of aviation components
In the process of cooperation with the aviation industry, the laser metal cleaning machine has been proved that the laser can clean nickel, stainless steel, aluminum and high strength steel molds or parts efficiently, without damage to the substrate.

2) Cleaning of weapons and equipment
Laser cleaning technology is widely used in weapon maintenance. The laser cleaning system can remove rust and pollutants efficiently and quickly, and the cleaning parts can be chosen to realize the automation of cleaning. Portable laser rust remove is not only more clean than chemical cleaning, but almost no damage to the surface of the object. By setting different parameters, a compact oxide protective film or metal melting layer can be formed on the surface of the metal object to improve the surface strength and corrosion resistance. Laser cleaning waste basically does not constitute pollution to the environment, and can also be operated remotely, effectively reducing the health damage to the operators.

3) The removal of old paint from an airplane
Laser metal cleaning machine have long been used in the aviation industry. The surface of the aircraft must be repainted after a certain period of time, but the old paint must be removed before painting. The traditional mechanical cleaning method is liable to cause damage to the metal surface of the aircraft and cause hidden trouble in safe flight. If the laser cleaning system is adopted, the paint layer on the surface can be completely removed without damaging the metal surface.

4) Precise ester cleaning in precision machinery industry
The precision machinery industry is often required to remove esters and mineral oils that are used for lubrication and corrosion resistance on parts, usually chemically, while chemical cleaning often remains. The removal of ester and mineral oil by laser de ester can completely remove the surface of the parts. The pollutant removal is made by shock wave, and the oxide thin layer of the parts is explosively gasified to form shock wave, which results in the removal of dirt instead of mechanical interaction. The material is thoroughly removed and used for the cleaning of mechanical parts in aerospace industry. Oil removal in mechanical parts processing can also be done by laser cleaning.
