200W Jewelry Laser Welding Machine , 30A Silver Soldering Machine
200W Jewelry Laser Welding Machine , 30A Silver Soldering Machine
Specifications
Brand Name :
bcx
Model Number :
bcx-1
Certification :
ce
Place of Origin :
china
MOQ :
1
Price :
1500 US dollars
Payment Terms :
T/T
Supply Ability :
99
Delivery Time :
8
Packaging Details :
wooden
Machine type :
laser
After-sales service provided :
Engineers available to service machinery overseas,Online support
Fuel :
Laser
Material :
Metal / Coil
Power(w) :
50W/100W/200W/500W
Condition :
New
Description

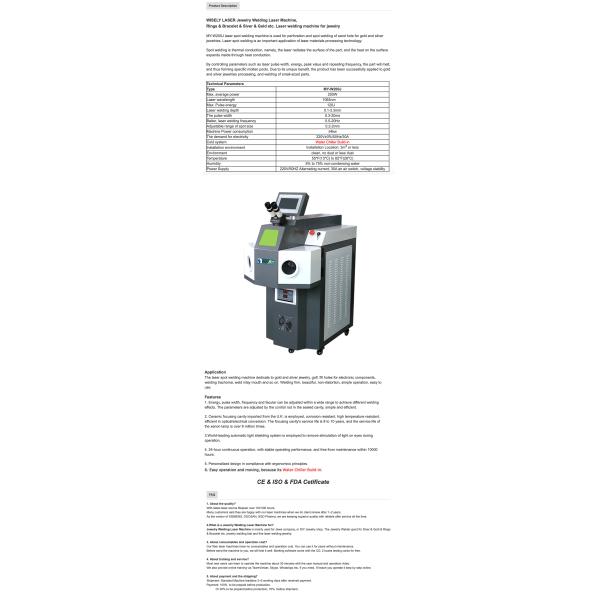

Jewelry Welding Laser Machine, Rings & Bracelet & Silver & Gold Laser welding machine for jewelry

WISELY LASER Jewelry Welding Laser Machine,
Rings & Bracelet & Siver & Gold etc. Laser welding machine for jewelry
MY-W200J laser spot welding machine is used for perforation and spot welding of sand hole for gold and silver
jewelries. Laser spot welding is an important application of laser materials processing technology.
Spot welding is thermal conduction, namely, the laser radiates the surface of the part, and the heat on the surface
expands inside through heat conduction.
By contolling parameters such as laser pulse width, energy. peak value and repeating frequency, the part will melt,
and thus forming specifc molten pools. Due to its unique benefit, the product has been successfully applied to gold
and silver jewelries processing, and welding of small-sized parts.

Max laser power
200W
Frequency range
1~50Hz
Pulse width range
1~20ms
Spot size range
-3mm~3mm
Max energy
120 Joule
Aiming positioning
CCD, 10X microscope
Positioning accuracy
+/-0.02mm
Input voltage
220V 50/60Hz 30A

200W Jewelry Laser Welding Machine , 30A Silver Soldering Machine
