Bluetooth gateway 4.2/5.0 big range 100m compatible different devices and protocols filtering tri-angle localization POE

Model Number: ITBG601-P

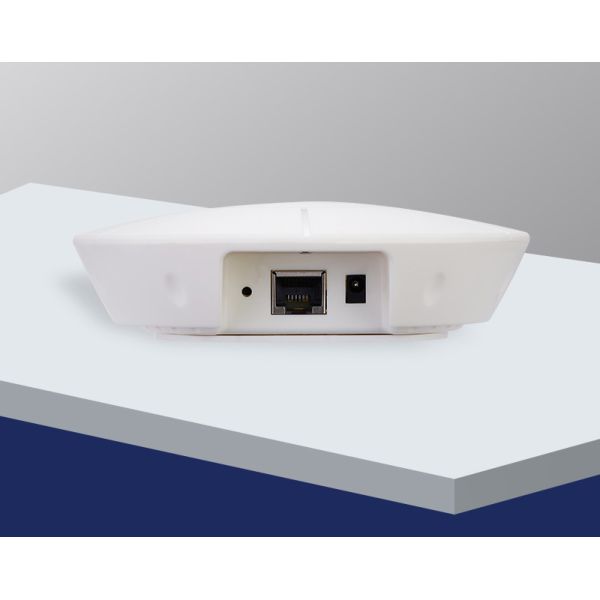

Bluetooth gateway indoor type ITBG601-P_BLE 4.2, Ethernet

Product Overview:

ITBG602 is a Bluetooth gateway that supports Bluetooth 4.2/5.0. The main processor uses 580MHz MIPS24KEc processor, DRAM is DDR2 64MB, 16MB FLASH. ITBG602 Bluetooth gateway integrates PA and LNA, and the Bluetooth scanning and connection distance can reach more than 100 meters, which greatly increases the coverage and reduces the user's cost.

ITBG602 can support POE power supply (in accordance with IEEE 802.3at (Class 1) requirements) or power adapter power supply (wide voltage range: 6V-24V).

ITBG602 is compatible with different Bluetooth terminal devices, which is convenient for users to collect data and remotely control Bluetooth terminal devices (such as Bluetooth bracelets, Bluetooth skipping ropes, Bluetooth door locks, various Bluetooth sensors, etc.) through the connection with Bluetooth terminal devices. Two-way transmission of data.

ITBG602 and background communication methods support: UDP, TCP and MQTT. Supports Bluetooth filtering methods including Bluetooth name filtering, signal strength filtering, MAC address filtering, etc.

ITBG602 supports remote software upgrade function.

The signal strength (RSSI value) of the Bluetooth signal of the Bluetooth terminal is received by the Bluetooth gateway, and the distance from the Bluetooth terminal to multiple Bluetooth gateways can be calculated, and then triangulation can be realized.

ITBG602 is widely used in medical, elderly care, sports, sports, fitness, education, home, and various industrial applications.

Bluetooth gateway ITBG602 model

ITBG602-P: Plastic case

ITBG602-PC: Plastic case with 4G module

ITBG602-M: Metal waterproof housing

ITBG602-MC: Metal waterproof housing with 4G module

Product Specification

R&Q:

• Bluetooth gateway + Bluetooth beacon network indoor positioning

In addition to Bluetooth gateway, Bluetooth beacon (equivalent to positioning tag), indoor positioning on the Bluetooth network side requires a wireless local area network and a back-end data server. The main principle is to calculate the current indoor position through triangulation and related positioning algorithms. The main application is It is used in situations such as personnel tracking and positioning, asset positioning and passenger flow analysis.

• What functions can the Bluetooth gateway + Bluetooth bracelet achieve?

The function realized by the Bluetooth gateway + Bluetooth bracelet is mainly to upload the relevant information of the Bluetooth bracelet to the management server background through the Bluetooth gateway. The background personnel can conveniently check various indicators of the person wearing the Bluetooth bracelet, such as: heart rate, body temperature , Sports... You can also locate a specific Bluetooth bracelet location according to the location of a certain area of the Bluetooth bracelet and display it in combination with an indoor map. It can be widely used in nursing homes, hospitals, prisons, schools...

• Bluetooth beacon Beacon used in exhibition positioning and navigation

Layout of Bluetooth beacons in the exhibition hall (including exhibitor booths)

The audience opens the Bluetooth and applet/APP

When the audience passes through a booth, the booth Bluetooth beacon releases promotional information, and the audience can receive the preferential promotion information. If you need to send the current location to a friend, you can locate it in the applet/APP and send it in real time (three-point Bluetooth beacon positioning) Give the location to a friend; if you want to go to the customer's booth, navigate to the customer's booth number, and you can easily find it by following the navigation route
