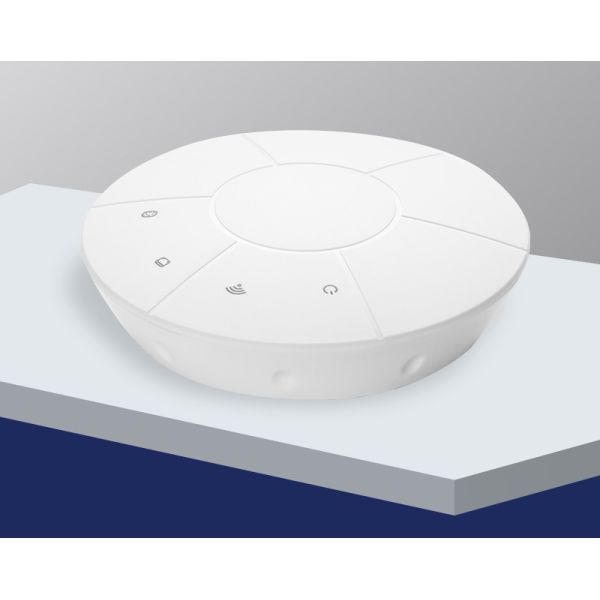

RoHS Bluetooth WIFI Gateway , IEEE 802.11b BLE WIFI Gateway
RoHS Bluetooth WIFI Gateway , IEEE 802.11b BLE WIFI Gateway
RoHS Bluetooth WIFI Gateway , IEEE 802.11b BLE WIFI Gateway
RoHS Bluetooth WIFI Gateway , IEEE 802.11b BLE WIFI Gateway
RoHS Bluetooth WIFI Gateway , IEEE 802.11b BLE WIFI Gateway
RoHS Bluetooth WIFI Gateway , IEEE 802.11b BLE WIFI Gateway
Specifications
Brand Name :
Createk
Model Number :
ITBG601-P
Certification :
CE, RoHS, FCC, KC
Place of Origin :
China
MOQ :
8 pcs / negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100k pcs/ month
Delivery Time :
3 weeks
Price :
USD36 / negotiable
Packaging Details :
Carton
Bluetooth :
4.2/5.0
Chipset :
MTK
WEBUI :
Yes
Distance :
More than 100 meters
Dimension :
Diameter:124mm; Height:40mm
Working Temp :
-20℃~70℃
POE :
Yes
Description

Bluetooth gateway 4.2/5.0 big range 100m compatible different devices and protocols filtering tri-angle localization POE

Model Number: ITBG601-P

Bluetooth gateway indoor type ITBG601-P_BLE 4.2, Ethernet

Product Overview:

The Bluetooth gateway supports Bluetooth 4.2.

The Bluetooth gateway integrates PA and LNA, and the Bluetooth scanning and connection distance can reach more than 100 meters, which greatly increases the coverage area and reduces the user cost.

It can support POE power supply (in accordance with IEEE 802.3at (Class 1) requirements) or power adapter power supply (wide voltage range: 6V-24V).

It can be compatible with different Bluetooth terminal devices, which is convenient for users to collect and remotely control the data of Bluetooth terminal devices (such as Bluetooth bracelets, Bluetooth skipping ropes, Bluetooth door locks, various Bluetooth sensors, etc.) through the connection with Bluetooth terminal devices.

Two-way transmission of data. bluetooth gateway and server communication protocols support: UDP, TCP.

Supports Bluetooth filtering functions including Bluetooth name filtering, signal strength filtering, MAC address filtering, etc.

Supports remote software upgrade function.

The signal strength (RSSI value) of the Bluetooth signal of the Bluetooth terminal is received by the Bluetooth gateway, and the distance from the Bluetooth terminal to multiple Bluetooth gateways can be calculated, and then triangulation can be realized.

It is widely used in medical, elderly care, sports, sports, fitness, education, home, and various industrial applications.

Product Characteristic

  • Support PoE power supply or power adapter power supply;
  • Support Bluetooth ® 4.2;
  • Integrated Bluetooth PA/LNA;
  • An Ethernet port;
  • Comply with RoHS standard;
  • Comply with FCC and CE standards

Product Specification

Product size Diameter:124mm; Height:40mm
Power

DC6-28V(2A)

PoE (PoE switch up to 57V), IEEE 802.3at(Class1) compliant
Working current

280mA@12V (with 4G module)

180mA@12V (without 4G module)
Operating temperature -20℃~70℃
Interface Ethernet port, power interface, reset button
WiFi
WiFi protocol IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Data rate IEEE 802.11 b Standard Mode: 1,2,5.5,11Mbps
IEEE 802.11 g Standard Mode: 6,9,12,18,24,36,48,54Mbps

IEEE 802.11n : 72Mbps @ HT20

150Mbps @ HT40
Receive sensitivity HT40 MCS7 : -67dBm@10% PER(MCS7)
HT20 MCS7 : -73dBm@10% PER(MCS7)
54M: -76dBm@10% PER
11M: -91dBm@ 8% PER
Transmit power

IEEE 802.11n: 15dBm @HT40 MCS7

15dBm@HT20 MCS7
IEEE 802.11g: 16dBm
IEEE 802.11b: 18dBm
Wireless security WPA/WPA2, WEP, TKIP, and AES
Working mode Bridge,Gateway,AP Client
Bluetooth
Bluetooth protocol Bluetooth ® 5.0
The data rate Uncoded: 1Mbps/2Mbps
Wireless security AES HW Encryption
The connection distance

100m
Transmit power 0~+18dBm
4G LTE
Communication protocol

LTE-TDD/LTE-FDD/TD-SCDMA/UMTS/

EVDO/EDGE/GPRS/GSM/CDMA

R&Q:

Does the Bluetooth gateway need a network?

The Bluetooth gateway is an integrated Bluetooth and wifi module device, which can connect to the network via 4G/WiFi/Ethernet for data transmission. Createk Bluetooth gateway can be with or without 4G according to the customer's choice. If the wireless layout needs to connect to WiFi, it is powered by the power adapter at this time; if it is connected to the Ethernet wired network, it can be powered by POE. For more details about the Bluetooth gateway, please contact with us

The difference between bluetooth long connection and short connection of bluetooth gateway

The main differences between long and short Bluetooth connections in Bluetooth gateways are as follows:

Long connection: The Bluetooth gateway and the Bluetooth terminal device will not be disconnected after the connection is established. If the connection is disconnected due to unknown factors, the Bluetooth gateway will automatically reconnect with the Bluetooth terminal device.

Short connection: The Bluetooth gateway will disconnect and no longer reconnect if there is no new data exchange within the set time. During the operation, as long as new data is sent and received, the timing will restart.

When the connection timeout is set to 0, it is a consistent connection (long connection). Using the command that triggers the disconnection will also prevent the gateway from reconnecting to the device.
