Indoor Positioning 2483.5MHz Low Energy Bluetooth Beacon CE Approved
Indoor Positioning 2483.5MHz Low Energy Bluetooth Beacon CE Approved
Indoor Positioning 2483.5MHz Low Energy Bluetooth Beacon CE Approved
Indoor Positioning 2483.5MHz Low Energy Bluetooth Beacon CE Approved
Indoor Positioning 2483.5MHz Low Energy Bluetooth Beacon CE Approved
Indoor Positioning 2483.5MHz Low Energy Bluetooth Beacon CE Approved
Indoor Positioning 2483.5MHz Low Energy Bluetooth Beacon CE Approved
Indoor Positioning 2483.5MHz Low Energy Bluetooth Beacon CE Approved
Indoor Positioning 2483.5MHz Low Energy Bluetooth Beacon CE Approved
Indoor Positioning 2483.5MHz Low Energy Bluetooth Beacon CE Approved
Specifications
Brand Name :
Createk
Model Number :
ITBB801-A
Certification :
CE, RoHS, FCC, KC
Place of Origin :
China
MOQ :
36 pcs / negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100k pcs/ month
Delivery Time :
4 weeks
Price :
USD9.5 / negotiable
Packaging Details :
Carton
Bluetooth :
4.2
Chipset :
Nordic 52810
App :
Yes, Createk APP for setting
Distance :
80 meters
Dimension :
53.86*24.93 mm
Working Temp :
-40℃~85℃
Battery :
ER14250 2*1200 mAh
Waterproof :
IP67
Acceleration sensor :
Yes
Moduel :
ITBB801-A
Description

Bluetooth Beacon with Nordic chip 52810 broadcast UUID, Major Minor reach 80 meters using 3M glue acceleration sensor

Model Name: ITBB801-A

Bluetooth beacon ITBB801_standard_52810_acceleration

Product Overview

We have our own factory which consist smt line, assembly line and package line, the factory is experienced and expertized in manufacturing telecom products for many years and we can delivery with high efficiency to our clients, in this time the global chipset shortage and price rise due to our factory has strong supplychain we still can fulfill customer needs with intime delivery and reasonable cost.

Most products of Bluetooth beacon are made by Nordic chipset in the market, we also have our Nordic 52832 and 52810 Beacon, but now days Nordic chipset supply is a big problem and price rise very high. In this case our company is the first to successfully adopt the domestic Bluetooth chipset in beacon products, after several months development, we successfully designed the beacon with domestic chipset and achieve the same performance, so even the bad covid situation may still last for years and chipset supply problem still exist we are capable to provide our customer more choices we can deliver with same quality beacon but lower cost and importantly no supply issue.

.

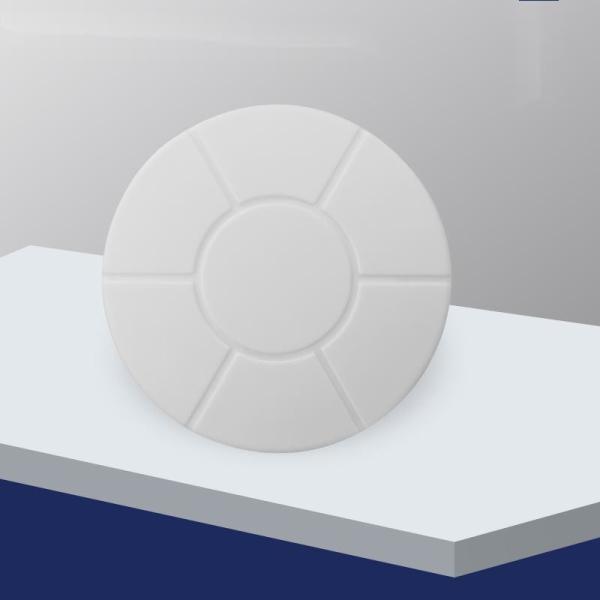

ITBB801 is a bluetooth beacon based on a low-power bluetooth chip launched by our company. It is powered by two ER14250 batteries and can be used for up to 5 years.

ITBB801 can broadcast UUID, Major, Minor, RSSI, battery power, Bluetooth name, Bluetooth MAC address and other information, among which UUID, Major, Minor, Bluetooth name can be set through the mobile APP.

The broadcasting distance of ITBB801 can reach 80 meters, and the use of 3M glue can facilitate installation and fixation.

Specification:

Hardware Parameters

Hardware parameters
Model ITBB801
Antenna PCB Antenna
Battery ER14250 2*1200mAh
Voltage 3.6V
Dimensions (D×H) 53.86*24.93mm
Wireless Performance
Wireless standard Bluetooth ® 4.2
Frequency range 2400MHz---2483.5MHz
Data rate 1Mbps
Modulation mode GFSK Modulation
Encryption AES HW Encryption
Transmission power Tx Power -20 to +4 dBm in 4 dB Steps
Reveiving sensitivity -93dBm at 1 Mbps BLE
Work mode Peripheral
Other

Environment

 Working temperature: -40℃~85℃
Storage temperature: -40℃~85℃
Working humidity: 10%~90% Non-condensing
Storage humidity: 5%~90% Non-condensing

Temperature and humidity indicators(for Bluetooth beacons with temperature and humidity sensors)
Measurement accuracy of humidity ±1.5 %RH
Humidity measurement resolution 0.01 %RH
Temperature measurement accuracy ±0.1 ℃ (20℃-60℃)
Temperature measurement resolution 0.015 ℃
Temperature measurement range -40~125 ℃

Battery life

Transmission power

(dBm)

Broadcast distance

(m)

Broadcast intervals

(ms)

Average current

()

Battery life

(year)

4

70

 100 260 1.05
500 50 5.48
1000 30 9.13

0

50

 100 200 1.37
500 30 9.13
1000 25 10.96

Note:

The above data does not consider the battery self-discharge, the time is for reference only. Considering the self-discharge of the battery, the actual use time can be calculated by multiplying the table time by 0.6

The above data is the theoretical data of standard products without temperature and humidity sensors and acceleration sensors.
