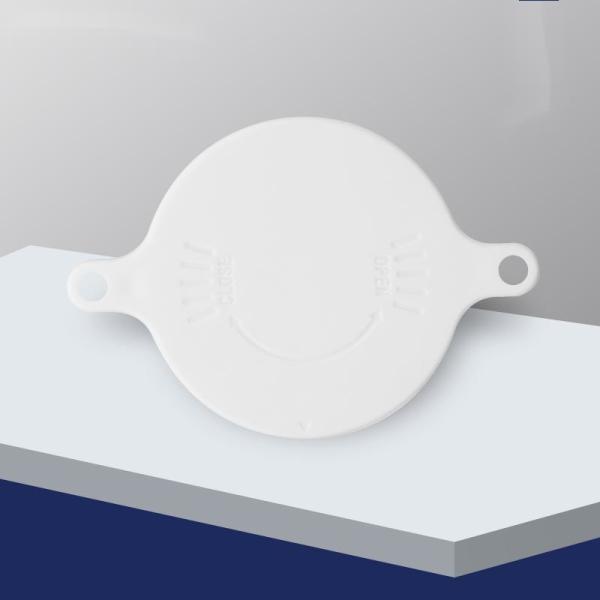

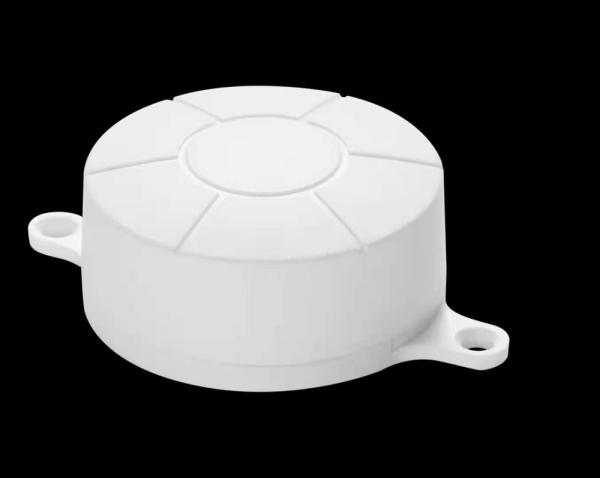

RoHS 80m Bluetooth Low Energy Location Beacon For Indoor Navigation
RoHS 80m Bluetooth Low Energy Location Beacon For Indoor Navigation
RoHS 80m Bluetooth Low Energy Location Beacon For Indoor Navigation
RoHS 80m Bluetooth Low Energy Location Beacon For Indoor Navigation
RoHS 80m Bluetooth Low Energy Location Beacon For Indoor Navigation
RoHS 80m Bluetooth Low Energy Location Beacon For Indoor Navigation
RoHS 80m Bluetooth Low Energy Location Beacon For Indoor Navigation
RoHS 80m Bluetooth Low Energy Location Beacon For Indoor Navigation
Specifications
Brand Name :
Createk
Model Number :
ITBB803-EP
Certification :
CE, RoHS, FCC, KC
Place of Origin :
China
MOQ :
36 pcs / negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100k pcs/ month
Delivery Time :
4 weeks
Price :
USD7.2 /negotiable
Packaging Details :
Carton
Bluetooth :
4.2
Chipset :
Domestic chip 3431
App :
support, Createk APP for setting
Distance :
≧80 meters
Dimension :
53.86*24.93 mm
Working Temp :
-40℃~85℃
Battery :
ER14250 2*1200 mAh
Description

Bluetooth Beacon with low power domestic chip 3431 broadcast UUID, Major Minor RSSI battery power reach 80 meters

Model Name: ITBB803-EP

Bluetooth beacon ITBB803_hanging ear type_3431_waterproof

Product Overview

We not only provide the hardware like the Bluetooth beacon and Bluetooth gateway, we are actually can provide total solutions regarding the indoor positioning and assets management and so on, so our strong R&D strength and experienced engineer can help customer to explore new opportunities in this market, help customer to do development of hardware and software.

. Broadcast distance can reach 80 meters

. Using 3M glue can be easily installed and fixed

. Firmware have connect type and non-connect type

. With temperature and humidity sensor and acceleration sensor optional

. With unique design for IP67 protection

. CE, RoHS, FCC, KC compliance

. Using domestic chip 3431 with low cost and no supply issue

Specification:

Hardware Parameters

Hardware parameters
Antenna PCB Antenna
Battery ER14250 2*1200mAh
Voltage 3.6V
Dimensions (D×H) 53.86*24.93mm
Wireless Performance
Wireless standard Bluetooth ® 4.2
Frequency range 2400MHz---2483.5MHz
Data rate 1Mbps
Modulation mode GFSK Modulation
Encryption AES HW Encryption
Transmission power Tx Power -20 to +4 dBm in 4 dB Steps
Reveiving sensitivity -93dBm at 1 Mbps BLE
Work mode Peripheral
Other

Environment

 Working temperature: -40℃~85℃
Storage temperature: -40℃~85℃
Working humidity: 10%~90% Non-condensing
Storage humidity: 5%~90% Non-condensing

Temperature and humidity indicators(for Bluetooth beacons with temperature and humidity sensors)
Measurement accuracy of humidity ±1.5 %RH
Humidity measurement resolution 0.01 %RH
Temperature measurement accuracy ±0.1 ℃ (20℃-60℃)
Temperature measurement resolution 0.015 ℃
Temperature measurement range -40~125 ℃
