0.6L Pin Type Bead Mill For Zircon / Zirconia / Zirconium Bead Grinder
0.6L Pin Type Bead Mill For Zircon / Zirconia / Zirconium Bead Grinder
0.6L Pin Type Bead Mill For Zircon / Zirconia / Zirconium Bead Grinder
0.6L Pin Type Bead Mill For Zircon / Zirconia / Zirconium Bead Grinder
0.6L Pin Type Bead Mill For Zircon / Zirconia / Zirconium Bead Grinder
0.6L Pin Type Bead Mill For Zircon / Zirconia / Zirconium Bead Grinder
0.6L Pin Type Bead Mill For Zircon / Zirconia / Zirconium Bead Grinder
0.6L Pin Type Bead Mill For Zircon / Zirconia / Zirconium Bead Grinder
0.6L Pin Type Bead Mill For Zircon / Zirconia / Zirconium Bead Grinder
0.6L Pin Type Bead Mill For Zircon / Zirconia / Zirconium Bead Grinder
0.6L Pin Type Bead Mill For Zircon / Zirconia / Zirconium Bead Grinder
0.6L Pin Type Bead Mill For Zircon / Zirconia / Zirconium Bead Grinder
Specifications
Model NO. :
ZM0.6-K
Fineness :
Nano, Mircon
Separator :
Screen Separator
Seal Type :
Double Mechanical Seal
Automatic Circulation :
Yes
Transport Package :
Fumigation Wooden Box
Specification :
CE, ISO9001: 2008, SGS
Trademark :
DEGOLD
Origin :
Chongqing, China
HS Code :
8479820090
Supply Ability :
20 Sets Per Month
Grinding Chamber Volume :
0.6 L
Bead Mill Type :
Pin Type
Application :
Paint, Inks, Pigments
Function :
R&D
Cooling Water Jacket :
Yes
Suitable Grinding Medium :
Zirconium/Zirconia/Zircon Beads
Customization :
Available | Customized Request
Description
ZM0.6-K 0.6L Pin Type Lab Horizontal Bead Mill for Zircon/Zirconia/Zirconium Grinding0.6L Pin Type Bead Mill For Zircon / Zirconia / Zirconium Bead Grinder
Product Description:

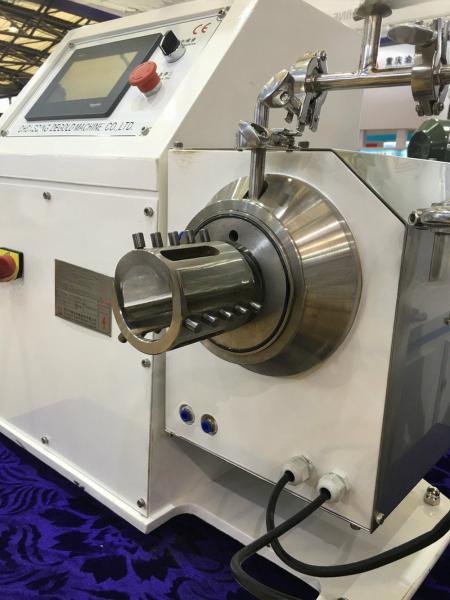

Laboratory Wet Bead Mill - Model (ZM0.6-K)

Construction:
1. Facile structure is great practicably.
2. Having with water-cooling clamp sheath.
3. Automatic circular grinding structure, no need pump and valve.
4. Transducer adjusts the rotor speed of main machine, which is much easier to control the whole effect.
5. Simply operation, convenient and simply to remove the grinding groove to wash;

6. Swift changing the lab prescription is available.
7. Cooling and heating procedures according to different requirements is available.
8. Ex proof, suitable for solvent based formulations.



Application:
0.6L Pin Type Bead Mill For Zircon / Zirconia / Zirconium Bead Grinder

Agrochemicals Pesticide, Herbicide, Fertilizer, SC
Ceramic Industry Ceramic inks, Ceramic pigments
Printing Inks Inkjet, Screen printing inks, Flexo printing inks
Pigments and Dyes Pigment, Titanium dioxide
Paint and Coating Construction Paint, Road Marking Paint, Wood Paint, Varnish, Marine Paint, Dispersion Paint, Automotive Paint, Coil Coating, Top Coat, Clear Coat
Minerals Calcium carbonate, Pharmaceuticals, Cosmetics

Technical Data:

Effective grinding volume 0.6
Main motor power (ABB motor) 2.2kW
PLC control 0-1500r/min
Eestimated productivity lab use
Net weight 50kg
Screen separator


Exhibitions:


0.6L Pin Type Bead Mill For Zircon / Zirconia / Zirconium Bead Grinder
0.6L Pin Type Bead Mill For Zircon / Zirconia / Zirconium Bead Grinder
