Zirconium Zirconia Zircon Wet Bead Mill Chemical Laboratory Bead Mill
Zirconium Zirconia Zircon Wet Bead Mill Chemical Laboratory Bead Mill
Zirconium Zirconia Zircon Wet Bead Mill Chemical Laboratory Bead Mill
Zirconium Zirconia Zircon Wet Bead Mill Chemical Laboratory Bead Mill
Zirconium Zirconia Zircon Wet Bead Mill Chemical Laboratory Bead Mill
Zirconium Zirconia Zircon Wet Bead Mill Chemical Laboratory Bead Mill
Zirconium Zirconia Zircon Wet Bead Mill Chemical Laboratory Bead Mill
Zirconium Zirconia Zircon Wet Bead Mill Chemical Laboratory Bead Mill
Zirconium Zirconia Zircon Wet Bead Mill Chemical Laboratory Bead Mill
Zirconium Zirconia Zircon Wet Bead Mill Chemical Laboratory Bead Mill
Specifications
Model NO. :
ZM1.4D1211
Object :
Milling Cutter
After-Sales Service Provided :
Engineers Available to Service Machinery Overseas
Transport Package :
Fumigation Wooden Box
Specification :
CE, ISO9001: 2008, SGS
Trademark :
DEGOLD
Origin :
Chongqing, China
HS Code :
8479820090
Supply Ability :
20 Sets Per Month
Type :
Disc Grinder
Application :
Chemical
Suitable Grinding Medium :
Zirconium/Zirconia/Zircon Beads
Function :
Wet Grinding for Particle Size Reduce
Applicable Industry :
Paint, Ink, Pigment, Agrochemical etc.
Usage :
for Lab Testing Only
Customization :
Available | Customized Request
Description
Zirconium / Zirconia / Zircon Wet Bead Mill Laboratory Bead Mill

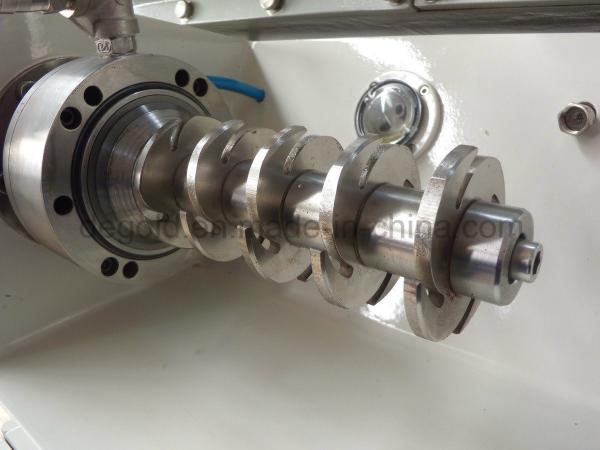

Disc Grinder and Zirconium/Zirconia/Zircon Beads for Laboratory Wet Bead Mill Impeller
Lab horizontal bead mill- Model (ZM1.4 Series)
Introduction:
ZM1.4 Series lab horizontal bead mills are the wet grinding discs type bead mills for R&D and samples production.
The grinding chamber volume is 1.4L.
Specification.
1) Mechanical seal, dynamic gap separator.
2) Small sizes grinding mediums can be used to make sure the precise lab analyze data.
3) It's easy to disassemble the grinding chamber for cleaning and formulations changes.
4) Continuous grinding, espcially suitable for various small batches/samples production.
5) AC drive controlling.
Option:
1) Different materials for inner grinding chamber and grinding discs selection includes the zirconia.
2) Different transfer pumps selection.
3) Ex proof or Non Ex proof selection for solvent based formulations and water based formulations.

Application:
Zirconium Zirconia Zircon Wet Bead Mill Chemical Laboratory Bead Mill

Technical Data:
ZM1.4
Effective cylinder volume (liters) 1.4
Main motor power (kW) 2.2
Grinding shaft rotary speed (r/min) 0~2800
Adjustable range of mateirals flow(L/min) 0~1
Max. cooling water consumption (t/hr) 0.5
Pump pressure 0.7Mpa
Compressed air consumption (m 3 /min) 0.2
Dimension (L×W×H) mm 650×570×885
Net weight (kg) 500

Exhibitions:
Zirconium Zirconia Zircon Wet Bead Mill Chemical Laboratory Bead Mill
